T1 Copper Bar OF-CU Copper Round Bars Diameter 10 - 300mm 99.9% Pure Copper
Price:
7000-8000 USD/Ton
MOQ:
400 kgs
Delivery Time:
7-15 days
Brand:
DELTA
Product Description

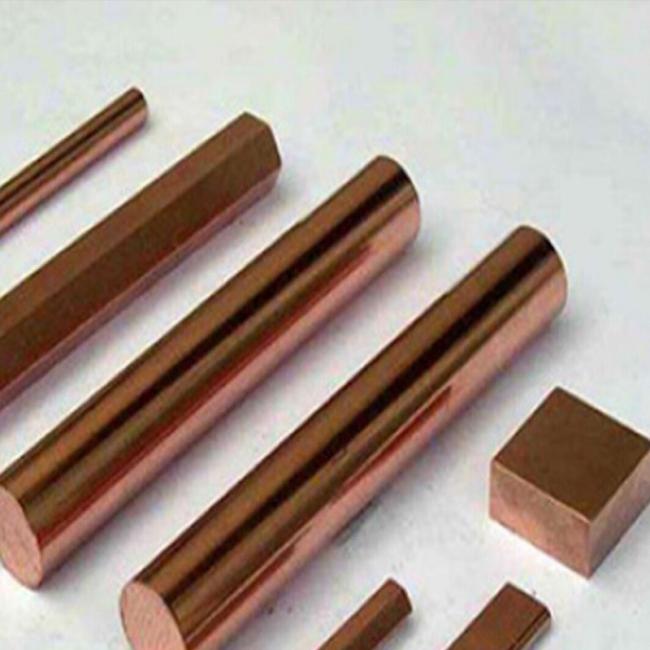

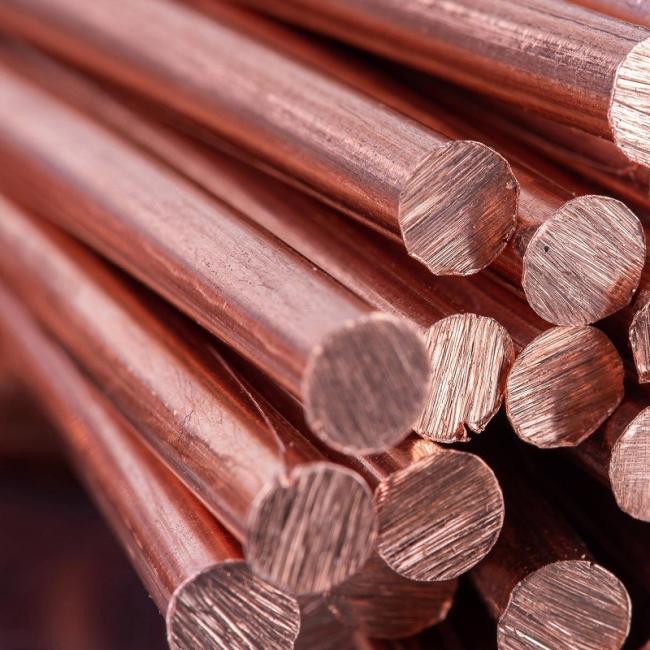

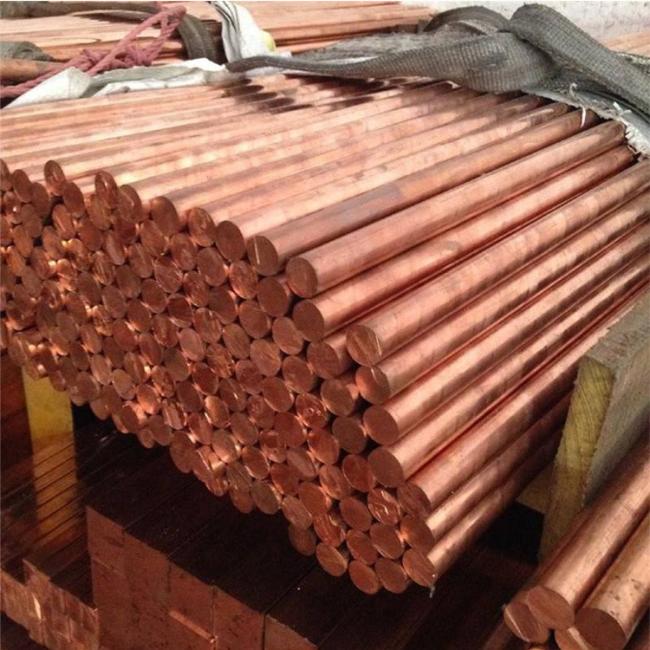

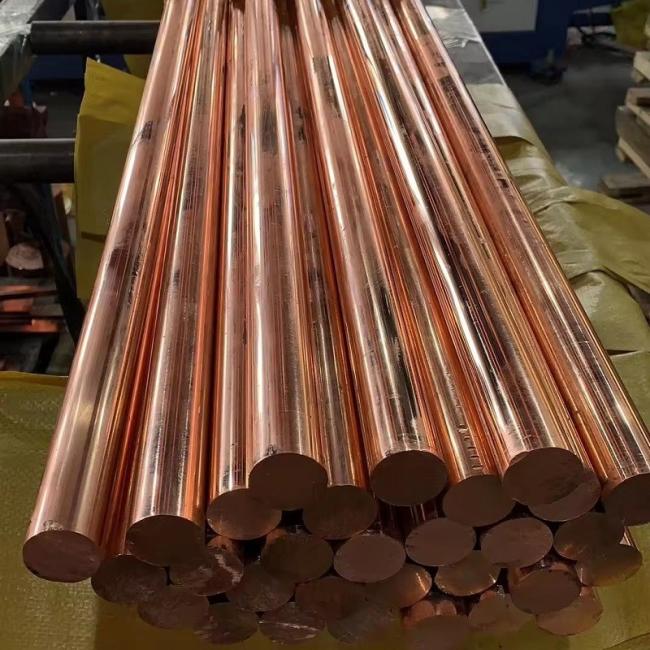

T1 Copper Bar OF-CU Copper Round Bars Diameter 10 - 300mm 99.9% Pure Copper
Products Specification of Copper Bars
|
Product Name
|
Copper Rod
|
|
Shape
|
Round/Square/Rectangular/Flat, etc
|
|
Size
|
Regular size 600x1500mm or Customized
|
|
Grade
|
Pure Copper:C10100/C10200/C11000/C12000/C12200
Copper Alloy:C14500/C17200/C17300/C17510/C18150/C19200/C19210/C19400 Brass:C22000/C23000/C24000/26000/26800/27000 Lead Brass:C33000/CuZn36Pb3/C35000/C35300/C36010/C37000/37700/C38000 /C38500/CuZn39Pb3/CuZn40Pb2
Tin Brass:C44300/C44500/C46400/HSn90-1 Aluminum Brass:C68700/HAl77-2/HAl66-6-3-2/HAl64-3-1 Tin Bronze:C51000/C51100/C51900/C52100/C54400/CuSn4/CuSn5/CuSn5Pb1/CuSn6/CuSn8 Aluminum Bronze:C60800/C61300/C61900/C62300/C63000 Copper Nickel Alloy:C70400/C71500/C70600/C70620/C73500/75200/76200/C77000 |
|
Temper
|
H,1/2H,3/4H,1/4H,EH,SH,O60, etc.
|
|
Surface
|
Mill,Polished,bright or customized.
|
|
MOQ
|
1 ton
|
|
Delivery Time
|
5-10 days after the payment received
|
|
Payment Item
|
30% TT deposit+70% TT balance before delivery
|
Standard Size of C10200 Copper Bar in Stock
| Standard Size | 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm 18mm 19mm 20mm 22mm 24mm 25mm 27mm 28mm 30mm 32mm 35mm 38mm 40mm 42mm 45mm 48mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm 125mm 130mm 140mm 150mm 160mm 180mm 190mm 200mm 210mm 220mm 230mm 240mm 250mm |
C10200(TU2) Copper Bar Description
C10200(TU2) copper bar is oxygen-free copper with extremely low oxygen and impurity content, high purity and conductivity. Excellent thermal conductivity, good ductility, low permeability, no "hydrogen disease" or very little "hydrogen disease"; Machining properties and welding. Good corrosion resistance and cold resistance
Chemical composition: Cu:99.95; O: 0.0100
Chemical composition: Cu:99.95; O: 0.0100
Mechanical properties: tensile strength: (σb,N/mm²) P 275
| Product name | C10200 copper bar |
| Length | 5.8m,6m, Or as needed |
| Diameter: | 3-800mm, Or as needed |
| Standard | GB ASTM BS DIN JIS |
| Grade | Oxygen Free Copper(OFC) |
| Cu(min) | 99 |
| Application | Industry, fireproof cable, electric vacuum industry |
Copper has a very wide range of applications, covering energy and petrochemical industry, transportation, electronics and electric power industry, machinery and metallurgy industry, and other fields has a pivotal role, the division of each country for copper brand is also the same, my company specializing in the production of various specifications of copper products, cost-effective, large inventories.
| China | Germany | Europe | International | US | Japan | ||
| GB | DIN | EN | ISO | UNS | JIS | ||
| - | Kruzzeichen | Number | Symbol | Number | Symbol | Number | Number |
| TU2 | OF-Cu | 2.004 | Cu-OFE | CW009A | Cu-OF | C10200 | C1020 |
| T2 | Se-Cu | 2.0065 | Cu-ETP | CW004A | Cu-ETP | C11000 | C1100 |
| TP2 | SF-Cu | 2.0090 | Cu-DHP | CW024A | Cu-DHP | C12000 | C1220 |
