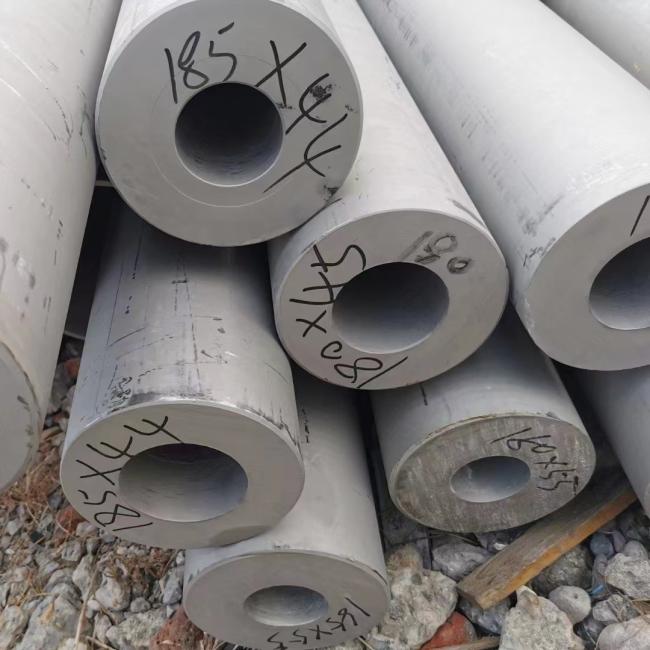

High Quality 254 Smo Uns S31254 Large Diameter Stainless Steel Pipe
High Quality 254 Smo Uns S31254 Large Diameter Stainless Steel Pipe
| Product Name | 254SMO Stainless Steel Pipe Ss Pipe |
| Fabrication Standard | ASTM A213/269/312/789 |
| Material Grade | TP304 TP316 TP310S SS32750 TP321 TP347L 2507 S32205 254SMo |
| Out Diameter | 1/8" - 24" |
| Wall Thickness | 1.25mm - 80mm |
| Length | <= 18 Mtr |
| Surface | anealling and pickles surface, polishing |
| Package | by piece, in bundles, with external pvc wrapped, wood crated |
| Minimum Order Quantiy | 1 Metric Tons |
| Our Advantage | 1.regular sizes in stock over 2000 tons for immediate delivery |
| 2.small quantity with factory rate | |
| 3.quality certificate as per EN10204 3.1b issued by manufacturer | |
| 4.expert technical and export/import document consultant and support | |
| 5.on-time response by email, skype, website and online messages |
High Quality 254 Smo Uns S31254 Large Diameter Stainless Steel Pipe
Product Details
There are several names for UNS S31254, including 6 moly, 254SMO and NAS 185N. Belonging to the austenitic class of stainless steel, the 6 moly (s31254) is a highly corrosion resistant material. The chemistry of this particular austenitic stainless steel includes high contents of nickel, Chromium, as well as molybdenum. The alloy chemistry was designed in such a manner that the 6% moly stainless steel would demonstrate excellent corrosion resistance, irrespective of their exposure to severe corrosion environments, for instance, elevated temperature seawater.
The most important characteristic of the 254SMO (UNS S31254) is the fact that it provides excellent resistance Pitting Corrosion. This is a fact that can be attested by its high PREN value. The PREN value of 6 moly ss uns n08926 is higher than 42.5.
254 SMO Stainless Steel
- Material Grade: 254 SMo Super Austenitic Stainless Steel
- American Grade: UNS S31254
- DIN/EN Grade: 1.4547
- Chinese Grade: 00Cr20Ni18Mo6CuN
- Forging Grade: F44
SMO 254,6MO Stainless Steel Pipe specifications
| Trade Name |
|
| Grades | EN 1.4547 / UNS S31254 (F44). |
| American Specification |
|
| Size range | 1/8” to 48”, 6MO Seamless Pipes up to 24”. |
| Outer Diameter (OD) | 0.3mm - 10mm. |
| Wall Thickness | 0.4mm up to 30.00 mm |
| Pipe Schedules | Schedules 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH. |
| Hardness | Soft, Hard, Quarter Hard, Half Hard, Spring Hard etc. |
| Surface Finishing | Bright, Polish & Black |
| Manufacturer of | Fully annealed seamless or welded and drawn alloy (254, 925, 926, AL6XN) hydraulic tubing as per ASTM A269 or ASTM A213 |
254SMO Tubing sizes
| WALL THICKNESS | SIZES ( O.D.) |
|---|---|
| .010 | 1/16" , 1/8" , 3/16" |
| .020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
Business Terms
- Packing
- Common Standard Export-sea Packing : Each bundle is fixed at least three times strips , wrapped with durable PVC material .
- Special Packing : Covered with film and packed in wooden box .
- MOQ: 1 Ton
- Payment Term: 30% advanced T/T payment, the balance before shipment or against copy of B/L
- Shipment Term : The goods should be loaded with 20ft container or LCL
- Quality Assurance: Mill Test Certificate is provided, Third Party Inspection is acceptable , Free Sample is available for Testing and welcome to our factory for personal inspection .
