ASTM B575 UNS N10276 Sheet In Wide Range / Alloy C276 Strip Nickel C276 Plates
ASTM B575 UNS N10276 Sheet in Wide Range / Alloy C276 Strip & Nickel C276 Plates
Introduce of Hastelloy C276
The Hastelloy C276 Plate could be readily welded using the most traditional processes which include practices such as PLASMA, GMAW (MIG/MAG), GTAW (TIG) and SMAW (MMA). Generally, a post weld heat treatment is not required to be carried out on the 2.4819 Hastelloy C276 Coil. Brushing these plates with a stainless steel wire brush after conducting welding operations generally removes the heat tint, all the same producing a surface area which does not require additional pickling. Leading Hastelloy C276 Plate manufacturers in India. View ASTM B575 Alloy C276 Plate price list. Hastelloy C276 Grade Shim Stock in all sizes and forms. We are hastelloy c276 plate suppliers in Wuxi City,China
Products Specification
| Specification | ASME SB575 / ASTM B575 |
|---|---|
| Width | 10 upto 2500mm |
| Hs Code of Hastelloy C276 Plate suppliers | 75062000 |
| Tolerances |
|
| Length | 3m, 2.44m, 2m, or as required |
| Dimensions |
|
| Hardness | Hard, Spring Hard, Soft, Quarter Hard, Half Hard |
| Thickness | 0.01 upto 100 mm |
| Finish | Cold rolled sheet, SATIN, 8K, brush, 2B, No.1, mirror, 2D, 1D, BA, BA NO (8), Hot rolled plate, No.4, hairline Hastelloy C276 Plate Manufacturers |
| variety shapes of Hastelloy Plate Suppliers | Rolling Sheet, Rolls, Flat Shim, Foils, Plate, Checker Plate, sheared, Plain Sheet, annealed, Shim Sheet, Coils, Flat Sheet, Flats, tread plate, Clad Plate, Sheet, Strip, Rolling Plate, descaled, soft annealed, Blank (Circle) |

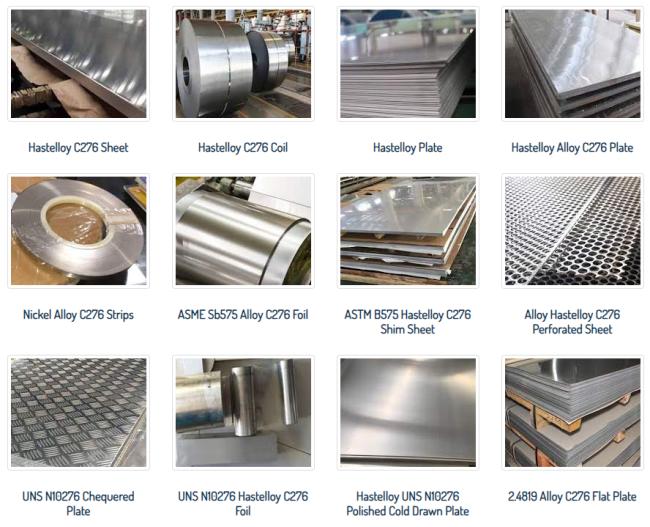

Our Hastelloy C276 Products
Chemical Composition of Hastelloy C276 Coil
| Grades | Ni | C | Fe | Mn | Mo | Si | P | S | Cr | Co |
|---|---|---|---|---|---|---|---|---|---|---|
| C276 | 50.099 min* | 0.010 maximum | 4.00 – 07.00 | 1.00 maximum | 15.00 – 017.00 | 0.08 maximum | 0.04 maximum | 0.03 maximum | 14.050 – 016.050 | 2.50 maximum |
UNS N10276 Strip Mechanical Strength
| Grade | Tensile Properties | Density | Elongational | Yield Properties | Melting Point |
|---|---|---|---|---|---|
| Hastelloy C276 | MPa – 790, Psi – 01,15,000 | 8.089 g/cm3 | 40 % | MPa – 355, Psi – 052,000 | (2500 °F)1370 °C |
| Material | Hardness Rb | Yield Properties (Min) | Ultimate Tensile (min) | Elongational % | ||
|---|---|---|---|---|---|---|
| Ksi | Mpa | Ksi | Mpa | |||
| C276 Sheet | 86 | 54.6 | 376 | 115.5 | 796 | 60 |
| C276 Plate | 89 | 50.3 | 347 | 107.4 | 741 | 67 |
C276 Alloy Plate Stockholder. Laser cutting Hastelloy UNS N10276 Coils wholesaler, Hastelloy C276 Cold Rolled Plates suppliers in China, 0.6mm thick 2B finish Hastelloy Werkstoff No 2.4819 Sheets, Hastelloy UNS N10276 Hot Rolled Plates stockholder.
