Stainless Steel / Aluminum / Galvanized Steel Perforated Metal Mesh Sheet Round Square Slot Punching Panel Perforated Sheet
Stainless Steel/Aluminum/Galvanized Steel Perforated Metal Mesh Sheet Round, Square, Slot Punching Panel Perforated Sheet

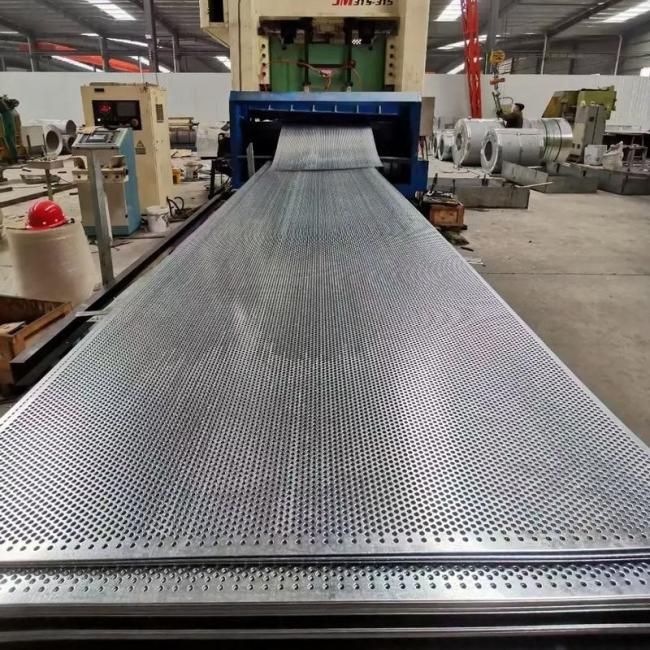

Perforated metal sheet refers to holes with different shapes on the same material to meet different needs. It can be used for environmental noise control barrier in transportation and municipal facilities such as highways, railways and subways through urban areas, as well as sound insulation and noise reduction panels for building walls, generator rooms, factories and other noise sources.
| Name | Perforated Metal |
| Material | SS 304 316L 201;Aluminum;Aluminum alloy;Iron;Gavanized steel;Q235,Q195;Mn steel |
| Hole Diameter | 0.1-30mm (0.1-0.4mm is etching hole;More than 30mm is laser cutting) |
| Size | Normal size is 1x2m 1.22x2.44m 1.5x3m (Other size we can customize.) |
| Thickness | 0.1-10mm |
| Coating | PVC Coating; Powder spraying; Galvanized Coating; |
| Applications | Industrial proccesing, Machinery, Food processing, Building & Constructions, Agriculture,Communication industries, automotive industries, hardward&household industries. |
| Hole shape | Round perforation, Square perforation, Rectangular, Hexagonal perforation, Slots perforation |
| Angle degree | 45°;60°;90° |
|
Perforated Sheet Specification – Round hole
|
||||||||||||||||
| Description | Hole Size (mm) | Pitch (mm) | Open Rate | Sheet Thickness | ||||||||||||
| 0.4 mm | 0.5 mm | 0.8 mm | 1 mm | 1.2 mm | 1.5 mm | 2 mm | 2.5 mm | 3 mm | 4 mm | 5 mm | 6 mm | |||||
| R0.8 T2 | 0.8 | 2 | 0.15 | * | * | * | ||||||||||
| R1 T2 | 1 | 2 | 0.23 | * | * | * | * | |||||||||
| R1.2 T2.25 | 1.2 | 2.25 | 0.26 | * | * | * | ||||||||||
| R1.2 T2.5 | 1.2 | 2.5 | 0.21 | * | * | * | * | |||||||||
| R1.5 T2.75 | 1.5 | 2.75 | 0.27 | * | * | * | * | |||||||||
| R1.5 T3 | 1.5 | 3 | 0.23 | * | * | * | * | |||||||||
| R1.8 T3.5 | 1.8 | 3.5 | 0.24 | * | * | * | * | * | ||||||||
| R2 T3 | 2 | 3 | 0.4 | * | * | * | ||||||||||
| R2 T3.5 | 2 | 3.5 | 0.3 | * | * | * | * | * | ||||||||
| R2 T4 | 2 | 4 | 0.23 | * | * | * | * | * | * | |||||||
| R2.5 T3.5 | 2.5 | 3.5 | 0.46 | * | * | * | ||||||||||
| R2.5 T4 | 2.5 | 4 | 0.35 | * | * | * | * | * | ||||||||
| R2.5 T4.5 | 2.5 | 4.5 | 0.28 | * | * | * | * | * | * | |||||||
| R2.5 T5 | 2.5 | 5 | 0.23 | * | * | * | * | * | * | * | ||||||
| R3 T5 | 3 | 5 | 0.33 | * | * | * | * | * | * | |||||||
| R3 T6 | 3 | 6 | 0.23 | * | * | * | * | * | * | * | * | |||||
| R3.5 T5 | 3.5 | 5 | 0.44 | * | * | * | * | * | ||||||||
| R4 T5 | 4 | 5 | 0.58 | * | * | * | ||||||||||
| R4 T6 | 4 | 6 | 0.4 | * | * | * | * | * | * | |||||||
| R4 T8 | 4 | 8 | 0.23 | * | * | * | * | * | * | * | * | |||||
| R5 T7 | 5 | 7 | 0.46 | * | * | * | * | * | * | |||||||
| R5 T8 | 5 | 8 | 0.35 | * | * | * | * | * | * | * | * | |||||
| R5 T10 | 5 | 10 | 0.23 | * | * | * | * | * | * | * | * | * | ||||
| R5 T25 | 5 | 25 | 0.04 | * | * | * | * | * | * | * | * | * | ||||
| R6 T8.5 | 6 | 8.5 | 0.45 | * | * | * | * | * | * | * | ||||||
| R6 T9 | 6 | 9 | 0.4 | * | * | * | * | * | * | * | * | |||||
| R6 T10 | 6 | 10 | 0.33 | * | * | * | * | * | * | * | * | * | * | |||
| R7 T10 | 7 | 10 | 0.44 | * | * | * | * | * | * | |||||||
| R8 T11 | 8 | 11 | 0.48 | * | * | * | * | * | * | |||||||
| R8 T12 | 8 | 12 | 0.4 | * | * | * | * | * | * | * | * | |||||
| R8 T15 | 8 | 15 | 0.26 | * | * | * | * | * | * | * | * | * | ||||
| R10 T13 | 10 | 13 | 0.54 | * | * | * | * | * | * | * | * | |||||
| R10 T14 | 10 | 14 | 0.46 | * | * | * | * | * | * | * | * | |||||
| R10 T15 | 10 | 15 | 0.4 | * | * | * | * | * | * | * | * | * | ||||
| R10 T18 | 10 | 18 | 0.28 | * | * | * | * | * | * | * | * | * | ||||
| R12 T16 | 12 | 16 | 0.51 | * | * | * | * | * | * | * | * | |||||
| R12 T17 | 12 | 17 | 0.45 | * | * | * | * | * | * | * | * | * | ||||
| R15 T20 | 15 | 20 | 0.51 | * | * | * | * | * | * | * | * | * | ||||
| R15 T21 | 15 | 21 | 0.46 | * | * | * | * | * | * | * | * | * | ||||
| R20 T25 | 20 | 25 | 0.58 | * | * | * | * | * | * | * | * | * | ||||
| R20 T27 | 20 | 27 | 0.5 | * | * | * | * | * | * | * | * | * | ||||
| R20 T28 | 20 | 28 | 0.46 | * | * | * | * | * | * | * | * | * | ||||
| R20 T30 | 20 | 30 | 0.4 | * | * | * | * | * | * | * | * | * | ||||
| R25 T34 | 25 | 34 | 0.49 | * | * | * | * | * | * | * | * | * | ||||
| Specification | Details |
| Hole Size | 1mm x 1mm, 2mm x 2mm, 3mm x 3mm, 5mm x 5mm, 10mm x 10mm Or customized |
| Thickness | 0.5mm, 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, etc |
| Size | 1m x 2m, 1.22m x 2.44m, 1.5m x 3m, customizable sizes available |
| Open Area | 23% - 79% (depending on hole size and spacing) |
| Surface Treatment | Powder Coating, Galvanizing, Anodizing, Polishing, etc. |
| Edge Margin | Can be customized according to requirements |
| Production Tolerance | +/- 0.1mm to +/- 0.5mm depending on thickness and hole size |
FAQ
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about
extra charges by the middle man or trader.
2. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
3. How long is your delivery time?
Generally it is 15-20 days if the goods are in stock. Or it is 20-25 days if the goods are not in stock. It is according to
quantity.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram
