EN 1.4404 Stainless Steel Strip SS Roll 0.1 - 3.0mm Slit Cutting Without Burr
EN 1.4404 Stainless Steel Strip SS Roll 0.1 - 3.0mm Slit Cutting Without Burr
Products Specification
| Product Name | Stainless Steel Strip |
|---|---|
| Thickness | 0.01mm-3.0mm or as required |
| Width | 4-1500mm or as required |
| Length | As request |
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Material | 201 301 304 309S 310S 316L 317L 321 409L 410 416 420 430 439 441 444 904L C276.etc |
| Hardness | Soft , 1/4H , 1/2H , 3/4H,FH |
| Surface | 2B, BA, 2D, 6K,NO.1 or special surface as request |
| Packaging | Standard export sea-worthy packing |
| Technique | Hot rolled/Cold rolled |
| Delivery time | 7-15 Days |
| Application range | Foodstuff, gas, matallurgy, biology, electron, chemical, petroleum, boiler, nuclear energy,medical equipment, frillizer, etc |
| Note | The other specifications can be produced as per customers' requirements |
1.4404 Stainless steel strips parameter performance
1.4404 stainless steel (corresponding to the American standard 316L) is a low carbon austenitic stainless steel, the main parameters and properties are as follows:
Chemical composition (%) of 1.4404 Stainless Steel
- Carbon (C): ≤0.030
- Silicon (Si): ≤1.00
- Manganese (Mn): ≤2.00
- Phosphorus (P): ≤0.045
- Sulfur (S): ≤0.030
- Chromium (Cr): 16.5-18.5
- Nickel (Ni): 10.0-13.0
- Molybdenum (Mo): 2.0-2.5
Mechanical property of 1.4404 Stainless Steel
- Tensile strength (MPa): ≥485
- Yield strength (MPa): ≥170
- Elongation (%): ≥40
- Hardness (HB): ≤217
- Physical property
- Density: 7.98 g/cm³
- Melting point: 1375-1400°C
- Coefficient of thermal expansion: 16.5μm /m·°C (20-100°C)
- Thermal conductivity: 15.0W /m·K (100°C)
- Resistivity: 0.74Ω ·mm²/m
Corrosion resistance of 1.4404 Stainless Steel
- 1.4404 Stainless steel performs well in both oxidizing and reducing environments, especially in chlorine environments with excellent resistance to pitting and crevice corrosion.
Application field of 1.4404 Stainless Steel
1.4404 Stainless steel belt is widely used in the following fields:
- Chemical industry: Used in the manufacture of reactors, storage tanks, pipelines, etc., because of its corrosion resistance, suitable for processing acid, alkali, salt and other media.
- Medical device: Used in surgical instruments, implants, etc., thanks to its biocompatibility and corrosion resistance.
- Food processing: Used in the manufacture of food processing equipment and containers because they are easy to clean and resistant to corrosion.
- Ocean engineering: Used in seawater treatment equipment, Marine components, etc., because of its resistance to seawater corrosion.
- Construction industry: Used for decorative and structural materials, such as curtain walls, handrails, etc., because of their beauty and corrosion resistance.
- Energy industry: Used in nuclear power plants, oil and gas equipment because of its resistance to high temperatures and corrosion.
- Automobile industry: Used in exhaust and fuel system components due to high temperature and corrosion resistance.
1.4404 Stainless steel tape because of its excellent corrosion resistance, mechanical properties and biocompatibility, widely used in chemical, medical, food, Marine, construction, energy and automotive and other fields.

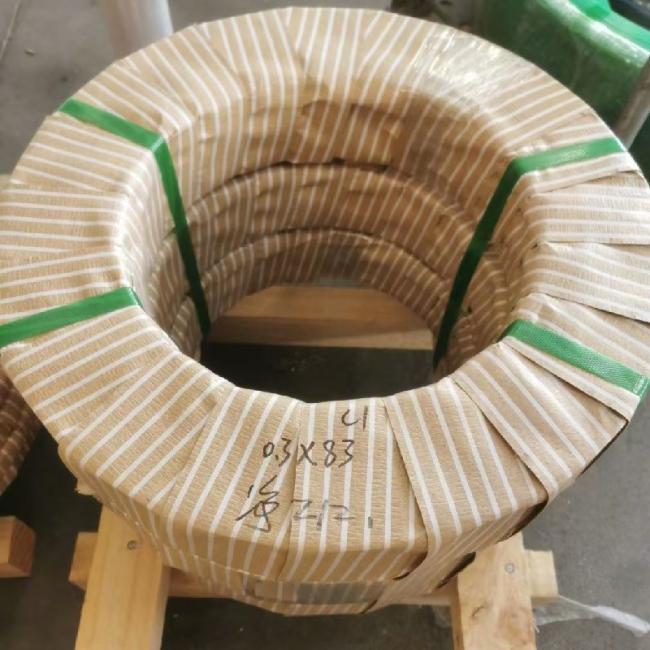

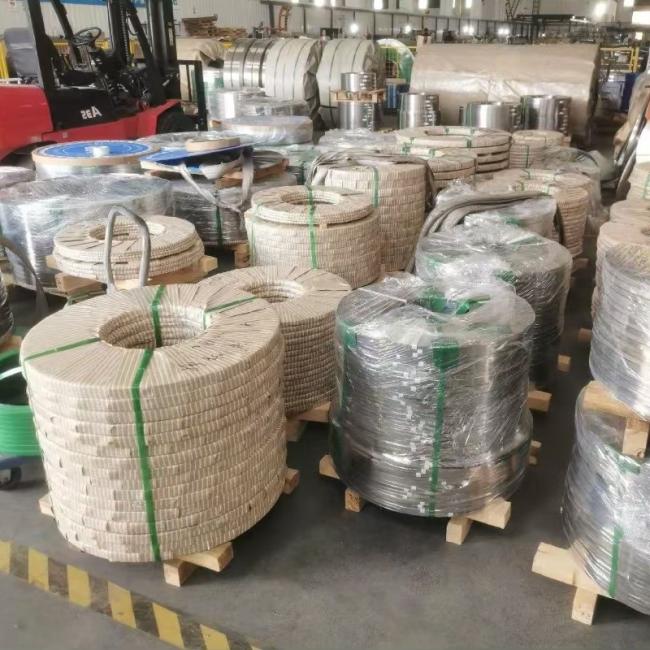

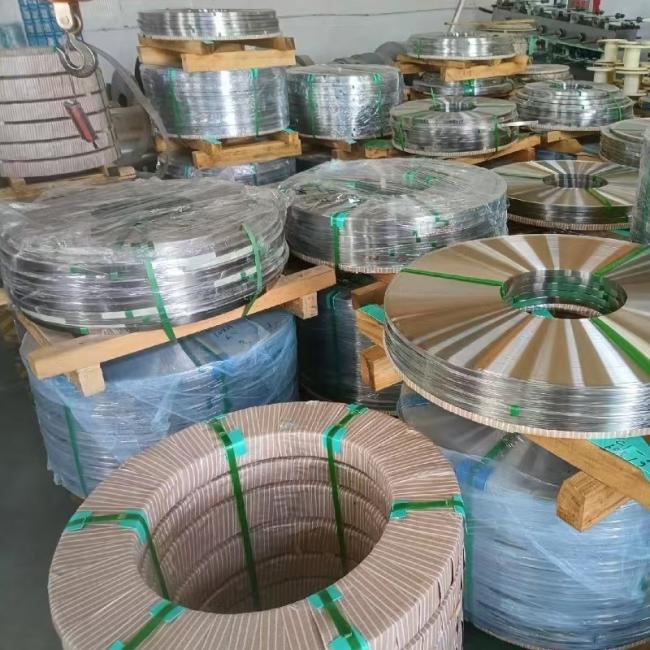

Products Picture
