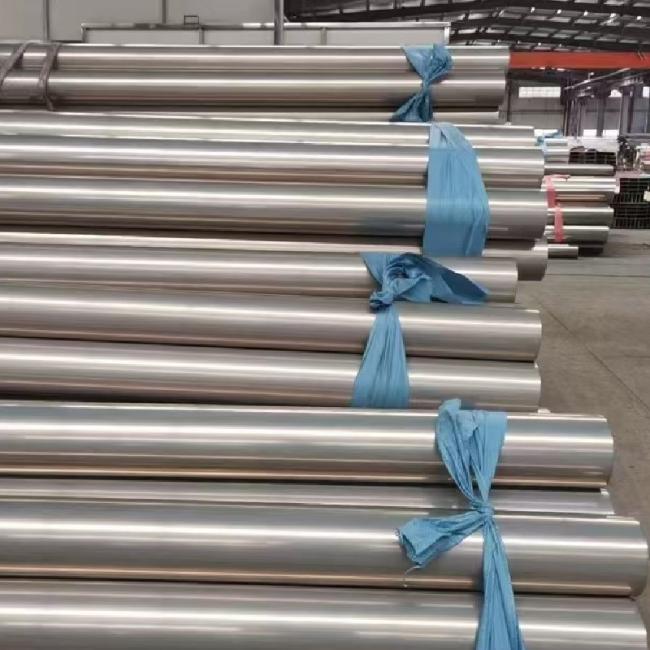

316L Bright Polished Stainless Welded Steel Pipe EN 1.4404
316L Bright Polished Stainless Steel Pipe / Welded Steel Pipe EN 1.4404
Products Specification
|
Product Name
|
Welded Stainless steel pipe
|
|
Standard
|
ASTM AISI DIN, EN, GB, JIS
|
|
Steel Grade
|
200 Series: 201,202
300 Series: 301,304,304L,316,316L,316Ti,317L,321,309s,310s 400 Series: 409L,410,410s,420j1,420j2,430,444,441,436 Duplex Steel: 904L,2205,2507,2101,2520,2304 |
|
Outer Diameter
|
6-325mm(as required)
|
|
Thickness
|
0.4mm - 10.0mm |
|
Length
|
6m / pcs or custom other fixed length as request
|
|
Technique
|
Seamless/Welded
|
|
Surface
|
pickling finishing, 2B , Hairline , polishing |
|
MOQ
|
500 kgs
|
|
Price Terms
|
FOB,CFR,CIF
|
Description of 316L stainless steel polished welded pipe
316L stainless Steel polished welded pipe is a low carbon version of 316 stainless steel that has been welded and polished for a smooth surface and high corrosion resistance. It is widely used in industries that require high hygiene standards and corrosion resistance.
Chemical composition
The main chemical composition of 316L stainless steel is as follows:
- Carbon (C): ≤0.03%
- Silicon (Si): ≤1.00%
- Manganese (Mn): ≤2.00%
- Phosphorus (P): ≤0.045%
- Sulfur (S): ≤0.030%
- Nickel (Ni): 10.0-14.0%
- Chromium (Cr): 16.0-18.0%
- Molybdenum (Mo): 2.0-3.0%
peculiarity
- Corrosion resistance: Excellent resistance to chlorides and other corrosive media.
- Low carbon content: Reduce carbide precipitation during welding and reduce the risk of intergranular corrosion.
- Polished surface: Smooth surface reduces dirt accumulation and is easy to clean.
- High strength: Good mechanical properties at high and low temperatures.
- Biocompatibility: Suitable for the food and pharmaceutical industries.
Standard
316L stainless steel polished welded pipe meets the following standards:
- ASTM A312/A312M: Standard for seamless, welded, and cryogenically processed Austenitic stainless steel pipes.
- ASTM A269: Universal Standard for seamless and welded Austenitic stainless steel pipes.
- ASTM A270: Standard for seamless and welded austenitic stainless steel pipes for sanitary purposes.
- DIN EN 10357: Standard for welded austenitic stainless steel tubes for the food industry.
specification
- Outer Diameter: 6mm to 200mm (common specifications)
- Wall thickness: 0.5mm to 5mm (common specifications)
- Length: usually 6 meters, can also be customized.
Apply
- 316L stainless steel polished welded pipe is widely used in the following fields:
- Food and beverage industry: pipelines, storage tanks.
- Pharmaceutical industry: Bioreactor, clean piping system.
- Chemical industry: corrosion resistant pipes, heat exchangers.
- Medical equipment: surgical instruments, implants.
- Marine engineering: seawater treatment equipment, ship pipelines.
- Architecture and decoration: railings, handrails, decorative pipes.
316L stainless steel polished welded pipe with its excellent corrosion resistance, polished surface and low carbon characteristics, has been widely used in many industries, especially in the food, pharmaceutical and chemical fields.
