Boiler Steel Plate Asme Sa516 Gr70 Equivalent To BS EN P355GH
Boiler steel plate asme sa516 gr70 equivalent to BS EN P355GH

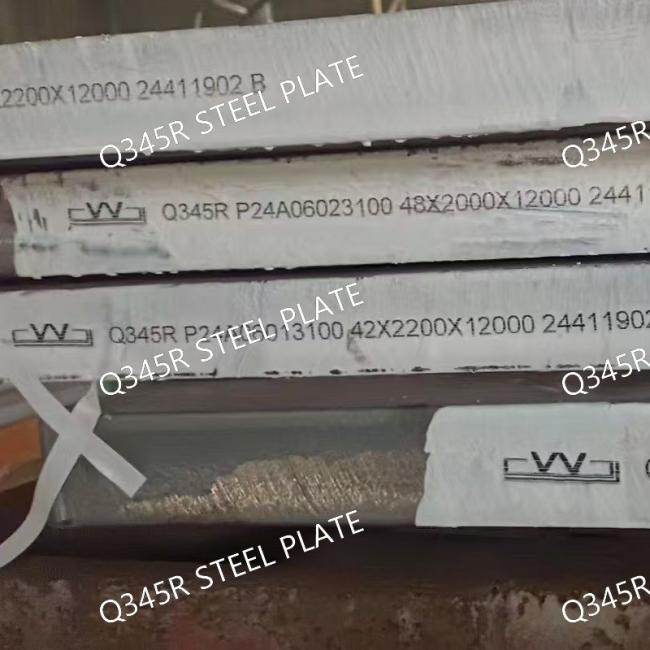

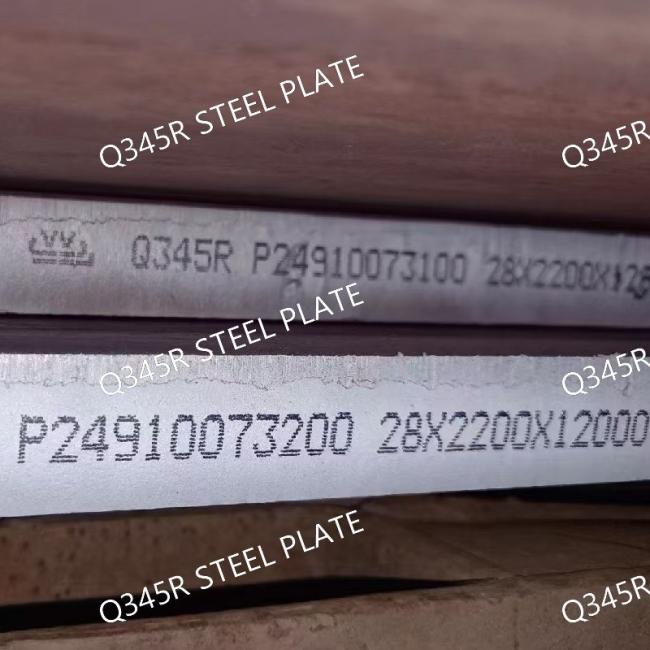

| Product Name | Q345R / P355GH Steel Plate |
| Thickness | 3mm~300mm,2mm-100mm is common thickness,also can customize |
| Width | 1000~3000mm,common width is 1250mm,1500mm,2000mm,2200mm |
| Length | 1000~12000mm,can as your request cut |
| Surface | Clean,finished, blasting and painting or as your request |
| Delivery | Hot Rolled, Controlled Rolling,Normalizing,Annealing, Tempering,Quanching, Q+T |
| Packing | Steel Strapping,fixing in the Container,can customize |
| Thickness tolerance | ±0.3mm |
| Application | It is mainly used to make structural parts such as car girder, beam, transmission shaft and car chassis parts, which can reduce the weight of the parts. |
SA516 GR70 steel plate comply to ASME SA516/SA516M specification which pressure vessel plates,carbon steel for moderate and low temperature service.P355GH steel plate comply to BS EN 10028-2 specification which flat products made of steels for elevated temperature pressure vessel purposes.So SA516 GR70 steel plates and P355GH steel plates are both non-alloy pressure vessel steel plates.
Comparasion mechincal property and chemical composition from the below table,EN 10028-2 P355GH steel plate can be totally equivalent to ASME SA516 GR70.For heat treatment,P355GH steel plate must be done Normalized for any thickness,and ASME SA516 GR70 steel plate only require to be done normalized for thickness over 1.50 inch (40mm).
Ultrasonic examination for SA516 GR70 steel plate and P355GH steel plate shall be done comply to ASME SA435/SA435M,SA577/SA577M OR SA578/SA578M.
| SA516 GR70 vs P355GH | Chemical composition: Heat Analysis Max% | |||||||||
| Standard | Grade | C | Mn | P | S | Si | N | Alt min. | Cr | Cu |
| ASME SA516/SA516M | SA516 GR70 | 0.27 | 0.85-1.20 | 0.035 | 0.035 | 0.15-0.40 | - | - | - | - |
| EN 10028-2 | P355GH | 0.10-0.22 | 1.10-1.70 | 0.025 | 0.010 | 0.60 | 0.012 | 0.02 | 0.30 | 0.30 |
| Mechanical Properties: | Thickness | Yield strength | Tensile strength | |||||||
| Mpa Min. | Mpa | |||||||||
| ASME SA516/SA516M | SA516 GR70 | 260 | 485-620 | |||||||
| EN 10028-2 | P355GH | T≤16 | 355 | 510-650 | ||||||
