301 Stainless Steel Strip Half Hard Temper Cold Rolled 0.1mm-3.0mm Thick X 10mm-500mm Width
301 Stainless Steel Strip Half Hard Temper | Cold Rolled, 0.1mm-3.0mm Thick x 10mm-500mm Width
Products Specification
| Product Name | SUS301 Stainless Steel Strips |
| Length | As required |
| Width | 3mm-1219mm or as required |
| Thickness | 0.10 - 3.0mm or as required |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
| Technique | Hot rolled / cold rolled |
| Surface Treatment | 2B or according to customer requirement |
| Thickness tolerance | ±0.01mm |
| Material | 201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L |
| Application | It is widely used in high temperature applications, medical devices, building materials, chemistry, food industry, agriculture, ship components.It also applies to food, beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen. |
| MOQ | 1tons.We also can accept sample order. |
| Shipment time | Within 15-20 workdays after receiving deposit or L/C |

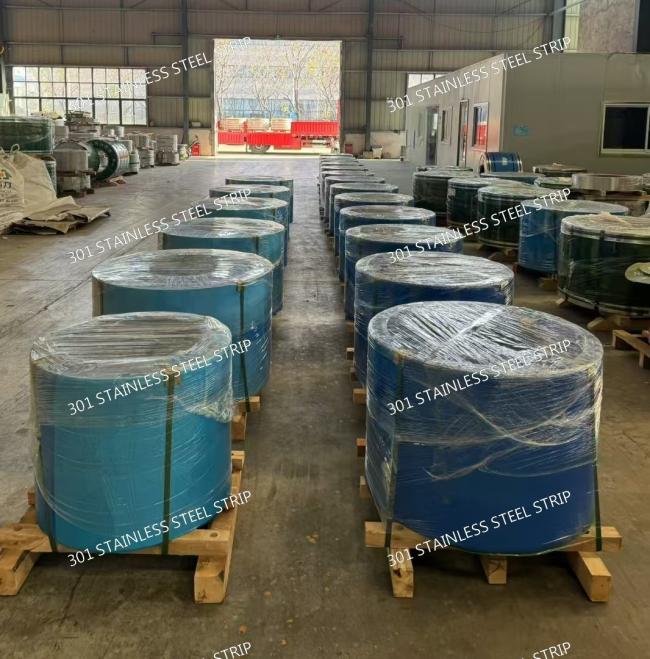

| Export packing | Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
| Capacity | 250,000 tons/year |
Metallurgical Profile
Crystal Structure & Phase Stability
-
Austenitic structure stabilized by 6-8% Ni content
-
Strain-induced martensite formation during cold working
-
TRIP effect (Transformation Induced Plasticity) enhances formability
Corrosion Performance Data
-
Salt spray resistance: 500+ hours (ASTM B117)
-
Pitting Resistance Equivalent Number (PREN): 18.5
-
Stress corrosion cracking threshold: 40% of yield strength
Precision Manufacturing Parameters
Rolling Process Controls
-
Reduction rate: 22-28% for half-hard temper
-
Skin-pass rolling with 0.5-1.5% elongation
-
Bright annealing in hydrogen atmosphere (dew point -60°C)
Dimensional Capabilities
-
Thickness range: 0.025mm (ultra-precise) to 4.0mm
-
Width capabilities: 2mm (micro-slit) to 800mm
-
Edge condition options:
-
Mill edge (as-rolled)
-
Slit edge (burr <0.01mm)
-
Deburred edge (radius 0.05mm)
-
Performance Comparison Matrix
Property301 1/2H304 Annealed17-7PHYield Strength690 MPa205 MPa1100 MPaSpringback12°5°18°Cost Index1.01.22.5
Special Application Notes
-
Medical Devices: Requires electropolishing per ASTM B912
-
Aerospace: Compliant with AMS 5517 for flight control components
-
Consumer Electronics: EMI shielding effectiveness >60dB at 1GHz
Quality Documentation
-
Batch traceability with heat number tracking
-
Microcleanliness rating: ASTM E45 Method A, ≤1.5
-
X-ray fluorescence (XRF) composition verification
