Marine Grade 316LMod Stainless Steel Plate For Offshore Structures & Saltwater Environments
Price:
3000 - 3500 USD/Ton
MOQ:
500 kgs
Delivery Time:
5 - 12 days based on the quantity
Brand:
TISCO BAOSTEEL
Product Description

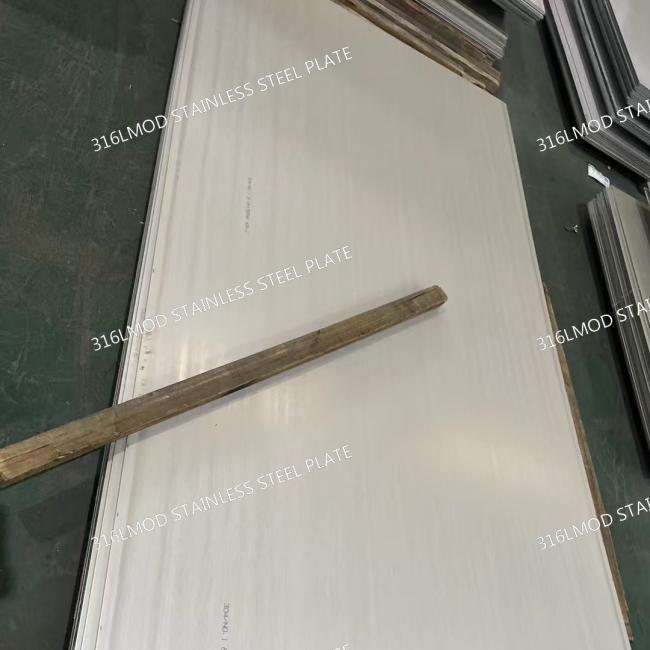

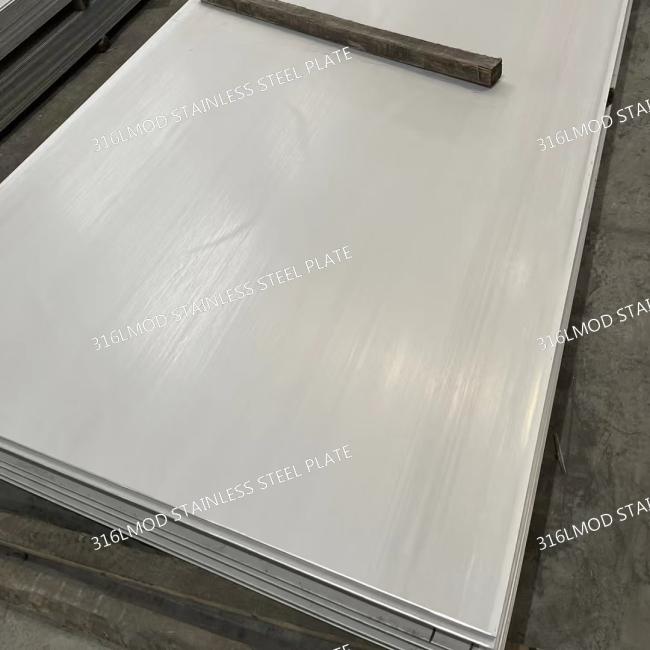

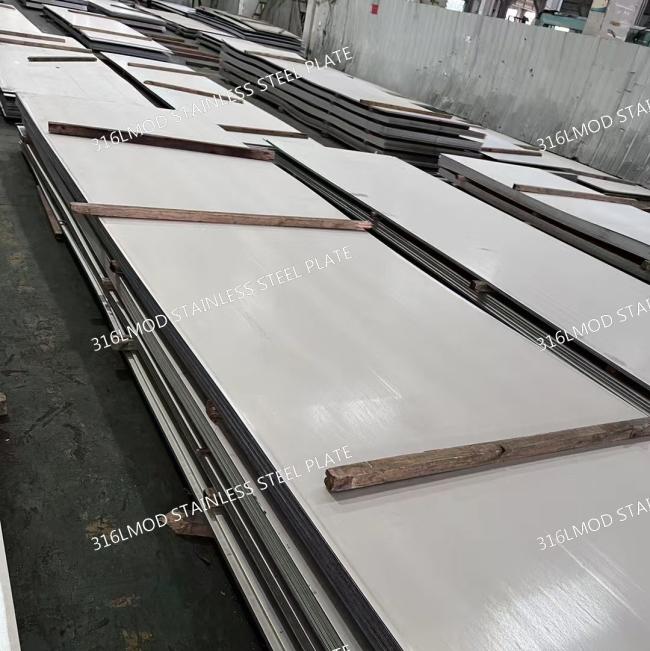

Marine-Grade 316LMod Stainless Steel Plate Ideal for Offshore Structures & Saltwater Environments
Products Specification
| Products Name | 316LMod Stainless Steel Plate |
| Main Grades | Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L, 309, 309S, 310, 310S, 316, 316L, 316TI,316Lmod, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L,630,631,254SMO,253MA,2205,2507.etc |
| Thickness | 3.0 - 80.0mm |
| Width | 1250mm,1500mm ,1800mm,2000mm, or custom other size as request |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT |
| Type of Material | Laser Cutting |
| Form | Plate / coil |
| Test Certificate | Yes. |
| Finish | NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |
| Brand | TISCO, LISCO,BAOSTEEL , POSCO, JISCO |
Introduction
The 316LMod stainless steel plate is an advanced variant of the widely - used 316L stainless steel, engineered to offer enhanced performance in highly corrosive environments. With its optimized chemical composition, particularly increased molybdenum (Mo) content and precise control of other alloying elements, this material provides superior resistance to pitting, crevice corrosion, and general corrosion compared to standard 316L stainless steel. It is a reliable choice for industries where material durability and longevity are critical.
Parameters
- Chemical Composition:
- Carbon (C): ≤0.03%
- Chromium (Cr): 16.0 - 18.0%
- Nickel (Ni): 10.0 - 14.0%
- Molybdenum (Mo): 2.2 - 3.0%
- Manganese (Mn): ≤2.0%
- Silicon (Si): ≤1.0%
- Phosphorus (P): ≤0.045%
- Sulfur (S): ≤0.030%
- Mechanical Properties:
- Tensile Strength: ≥480 MPa
- Yield Strength: ≥175 MPa
- Elongation: ≥40%
- Hardness (HB): ≤200
Specifications
- Thickness: Ranges from 0.3mm to 100mm, customizable to meet specific project requirements.
- Width: Available in widths of 1000mm, 1219mm, 1500mm, 1800mm, 2000mm.
- Length: Standard lengths include 2000mm, 2438mm, 3000mm, 6000mm; custom lengths are also available.
- Surface Finish: Options include 2B (dull matte finish), BA (bright annealed finish), No.4 (brushed finish), mirror polish, and custom surface treatments upon request.
Standards
This 316LMod stainless steel plate complies with multiple international and industry - recognized standards:
- ASTM A240: The primary specification for chromium and chromium - nickel stainless steel plate, sheet, and strip for pressure vessels and general applications.
- EN 10088 - 2: European standard for stainless steels, ensuring consistent quality and performance across the European market.
- JIS G4305: Japanese Industrial Standard for cold - rolled stainless steel plates, sheets, and strips, guaranteeing high - quality material suitable for various applications.
Advantages
- Exceptional Corrosion Resistance: Thanks to its increased molybdenum content, 316LMod offers outstanding resistance to chloride - induced pitting and crevice corrosion, making it ideal for exposure to seawater, chemical solutions, and other aggressive media.
- Low Carbon Content: The low - carbon design (≤0.03% C) minimizes the risk of intergranular corrosion, especially during welding and high - temperature applications.
- High Formability and Weldability: Despite its superior strength, 316LMod stainless steel plate can be easily formed, bent, and welded, enabling efficient fabrication processes for complex structures.
- Hygienic and Clean: It meets the requirements for hygienic applications, with a smooth surface that resists bacteria adhesion and is easy to clean, making it suitable for food, beverage, and pharmaceutical industries.
- Long - term Durability: Its excellent mechanical properties and corrosion resistance ensure a long service life, reducing maintenance costs and replacement frequency.
Applications
- Marine Industry: Used for shipbuilding components, offshore platforms, seawater desalination equipment, and marine hardware due to its resistance to saltwater corrosion.
- Chemical Processing: Ideal for reactors, storage tanks, pipelines, and heat exchangers that handle corrosive chemicals, acids, and alkalis.
- Food and Beverage: Employed in food processing equipment, dairy plants, breweries, and pharmaceutical manufacturing facilities, where hygiene and corrosion resistance are essential.
- Architectural and Decoration: Applied in high - end building facades, interior decorations, handrails, and decorative elements due to its aesthetic appeal and durability.
- Medical Equipment: Suitable for manufacturing surgical instruments, medical implants, and hospital equipment, thanks to its biocompatibility and corrosion - free properties.
- Environmental Engineering: Used in wastewater treatment plants, sewage systems, and environmental protection equipment, which are often exposed to corrosive substances.
