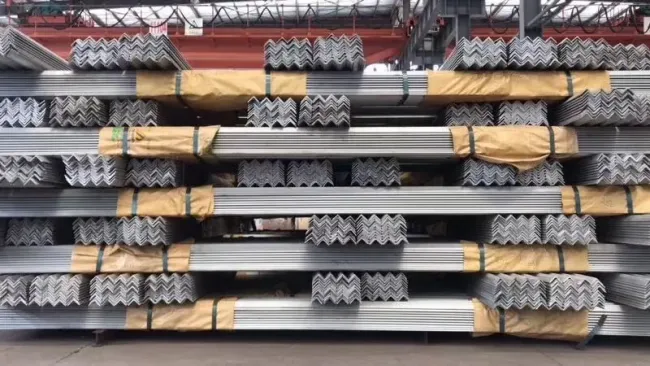

80*80*8mm Hot Rolled Pickling Surface Stainless Steel Angle Bar and Channel Bar
| Product Name | Stainless Steel Angle Bar / Stainless Steel Channel Bar |
|---|---|
| Grade | 201, 304, 310S, 316L, 321, 2205, etc. |
| Standard | ASTM, GB, DIN |
| Angle Bar Size | 30×30×3 - 200×200×10mm × 6m length |
| Channel Bar Size | 50×30×3 - 200×100×10mm × 6m length |
| Service | Cutting |

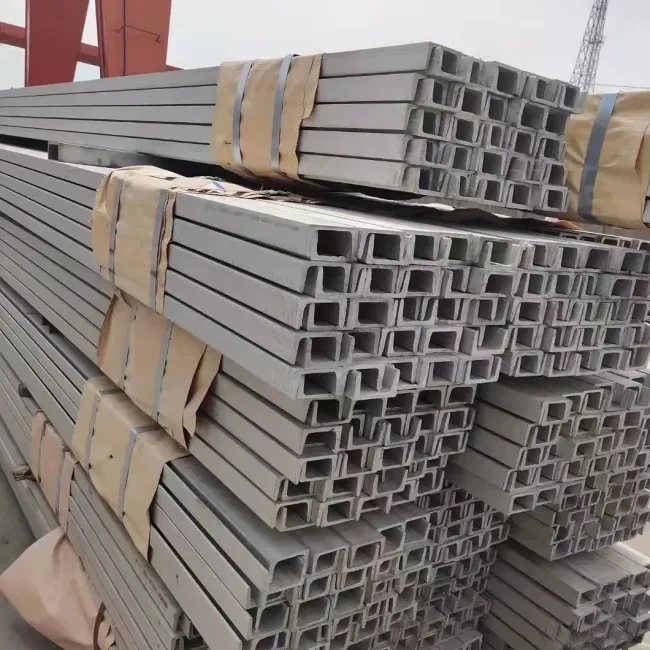

| Packing | Waterproof paper surround or wooden pallets |
| Brand | TSINGSHAN |
| Size (A×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
| Size (H×B mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |

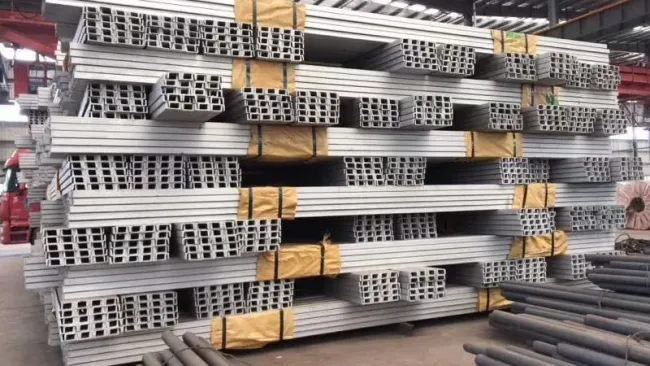

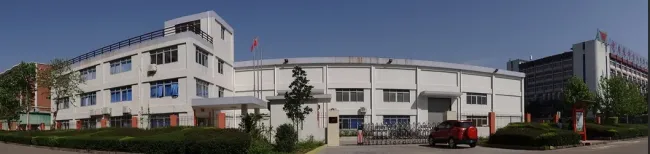

Our company is a comprehensive stainless steel enterprise specializing in material wholesale, processing, storage, and distribution. Located in Wuxi, the stainless steel trading center, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan.
We maintain long-term, stable cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute stainless steel plates imported from Sweden, North America, South Africa, Japan, South Korea, and other regions.
- 310S, 309S, 316L, 321, 304L, TP304, 347H
- 17-4PH, 317L, 2507, 2205-904L and other materials
- High temperature resistant stainless steel series
- Duplex stainless steel series
- Super stainless steel series
- Plasma cutting machines
- Coil material opening equipment
- Laser cutting machines
- 8K mirror, grinding wire drawing, film and titanium plating equipment
- Material opening, strip cutting, plate cutting
- Oil mill wire drawing, complete coil oil film wire drawing
- Thick plate cutting up to 150mm thickness
- Custom cutting of rounds, squares, and shaped pieces
- Casting parts and forging parts
Our materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and other industries.

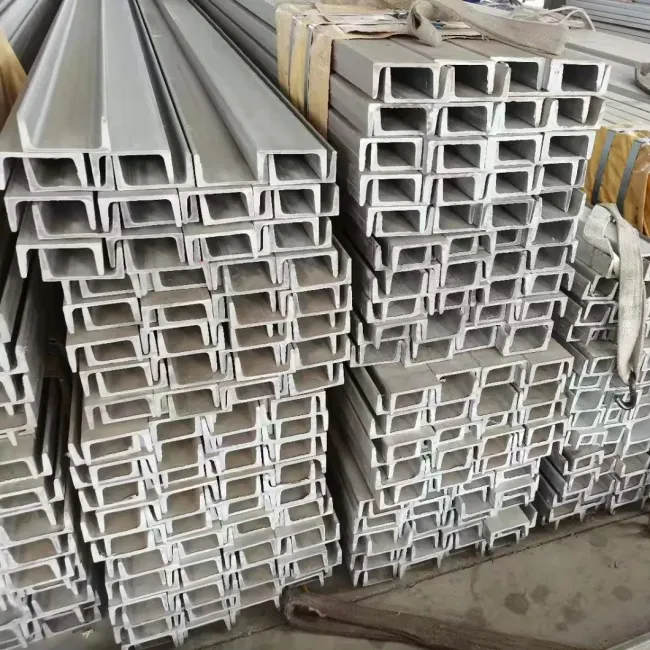

Stainless steel angle bars and channel bars are primarily used for constructing frame structures including:
- High-voltage power transmission towers
- Frame structures on both sides of main beams in steel structure bridges
- Columns and booms of tower cranes on construction sites
- Columns and beams in workshop structures
- Air-conditioning and solar-powered shelf supports under windows
Widely applied in building structures and engineering construction such as house beams, ship beams, industrial furnaces, and various other structural applications across multiple industries.
