Hot Rolled Stainless Steel Angle Bar with Pickling Surface in 30*30-100*100mm Sizes
Price:
US $2.01-3.8 / kg
MOQ:
30 kg
Delivery Time:
Negotiable
Product Description
Stainless Steel Angle Bar & Channel Bar - AISI304
High-quality stainless steel angle bars and channel bars manufactured to international standards, available in various grades including 201, 304, 310S, 316L, 321, and 2205.
Product Specifications
- Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
- Available Grades: 201, 304, 310S, 316L, 321, 2205, etc.
- Standards: ASTM, GB, DIN
- Angle Bar Size Range: 30×30×3mm - 200×200×10mm × 6m length
- Channel Bar Size Range: 50×30×3mm - 200×100×10mm × 6m length
- Services: Custom cutting available
- Packing: Waterproof paper wrapping or wooden pallets
- Brand: TSINGSHAN
Stainless Steel Angle Bar - Standard Sizes & Weights
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|---|---|---|---|---|---|---|---|
| 20×20 | 0.894 | 1.13 | 1.38 | |||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | ||||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | ||||
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | ||||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | ||||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | ||
| 80×80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
| 90×90 | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 | |||
| 100×100 | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Weights shown in kg per meter
Stainless Steel Channel Bar - Standard Sizes & Weights
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|---|
| 40×20 | 1.79 | ||||||||
| 50×25 | 2.27 | ||||||||
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
| 130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
| 140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
| 150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
| 160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
| 180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
| 200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
Weights shown in kg per meter

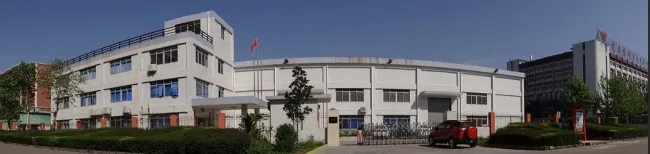

About Our Company
We are a leading stainless steel material wholesale and processing enterprise, specializing in storage, distribution, and comprehensive material solutions. Located in Wuxi, the stainless steel trading center, with total investment of 10 million yuan and annual sales exceeding 300 million yuan.
We maintain long-term partnerships with major steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute imported stainless steel plates from Sweden, North America, South Africa, Japan, and Korea.
Material Range: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L and other high-temperature resistant stainless steel, duplex stainless steel, and super stainless steel series.
Processing Capabilities:
- Plasma cutting machines
- Coil material opening equipment
- Laser cutting machines
- 8K mirror, grinding, wire drawing, film and titanium plating equipment
- Material opening, strip cutting, plate cutting
- Oil mill wire drawing, complete coil oil film wire drawing
- Thick plate cutting up to 150mm thickness
- Custom cutting of rounds, squares, and shaped pieces
- Casting parts and forging parts
Industry Applications: Machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and various industrial sectors.

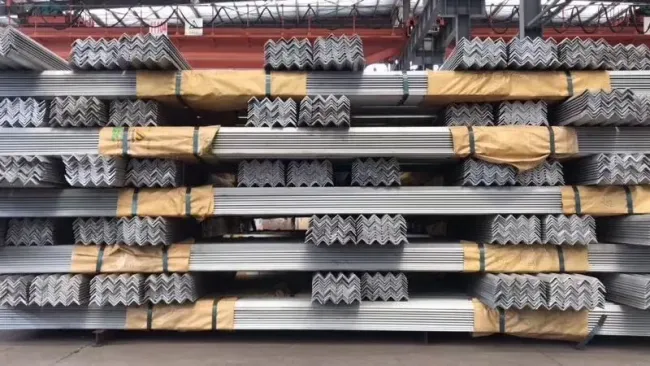

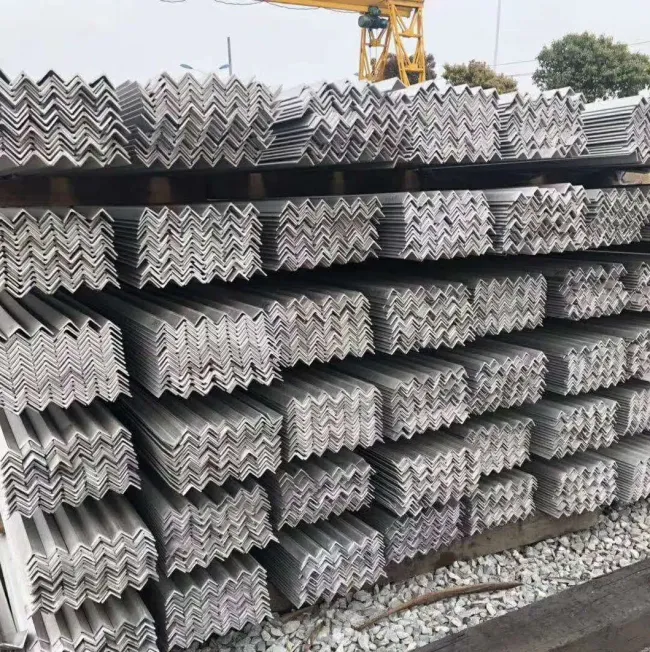

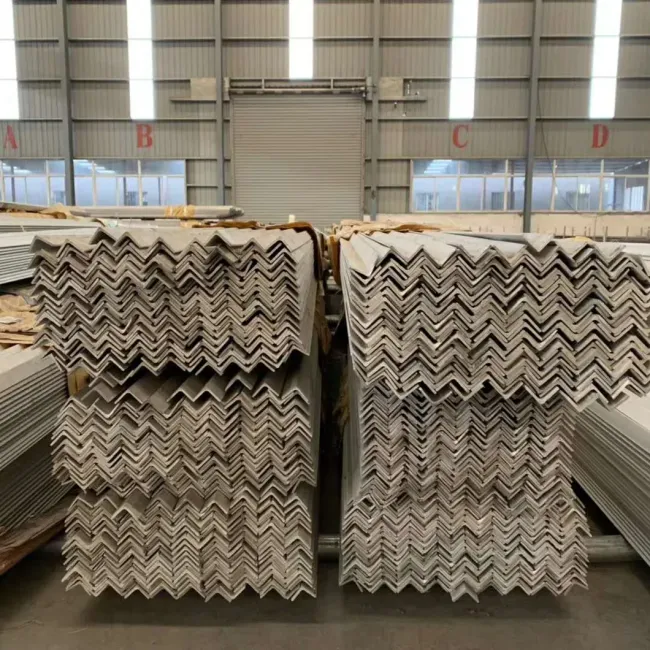

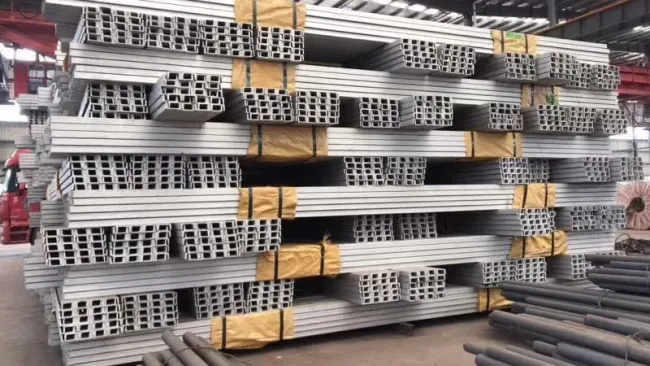

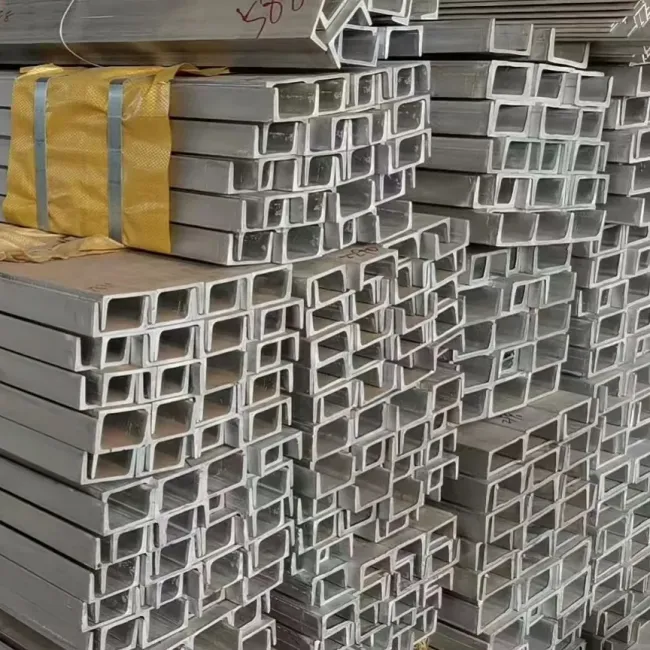

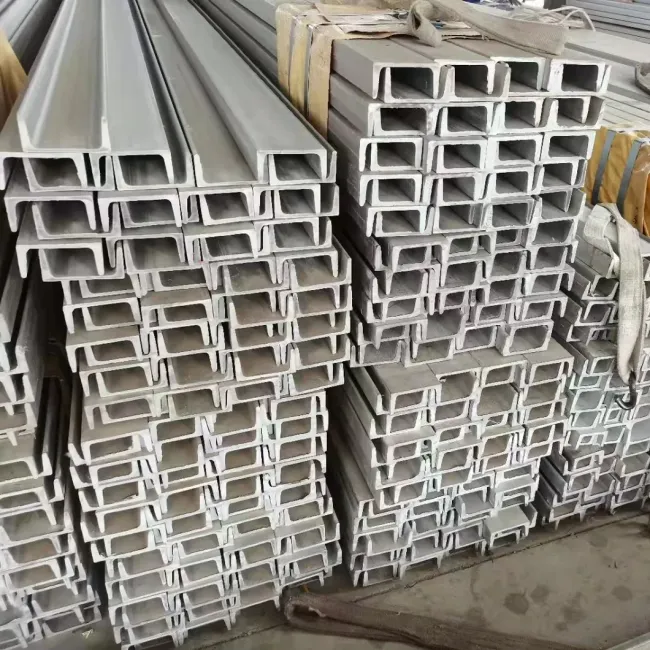

Product Gallery
Applications
Stainless steel angle bars and channel bars are primarily used for constructing frame structures across various industries:
- High-voltage power transmission towers
- Steel structure bridge frameworks
- Tower crane columns and booms on construction sites
- Workshop columns and beams
- Air-conditioning and solar-powered shelf supports
- Building structures and engineering construction
- House beams and ship beams
- Industrial furnaces and structural supports
Our stainless steel angle bars and channel bars are applied across diverse industrial sectors for reliable structural performance.
