Hot Rolled PPGI Steel Coil Pre-Painted Galvanized Steel Sheet 1.20mm-4.60mm Thickness for Container Plate with Slit Edge
Price:
US $954-1,099 / Ton
MOQ:
1 Ton
Delivery Time:
Negotiable
Product Description
Hot Rolled PPGI Steel Coil Pre Painted Plain Sheet 1.20mm-4.60mm
High-quality pre-painted galvanized steel coils designed for superior corrosion resistance and excellent surface finish, available in thickness range from 1.20mm to 4.60mm.
Product Specifications
| Products Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness | Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2Ton - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface | Galvanized steel sheet: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume Steel Sheet: AZ40 - AZ180 Prepainted Galvanized Steel Sheet: Painting Type: PE, HDP, SMP, PVDF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS ETC |
Products Center

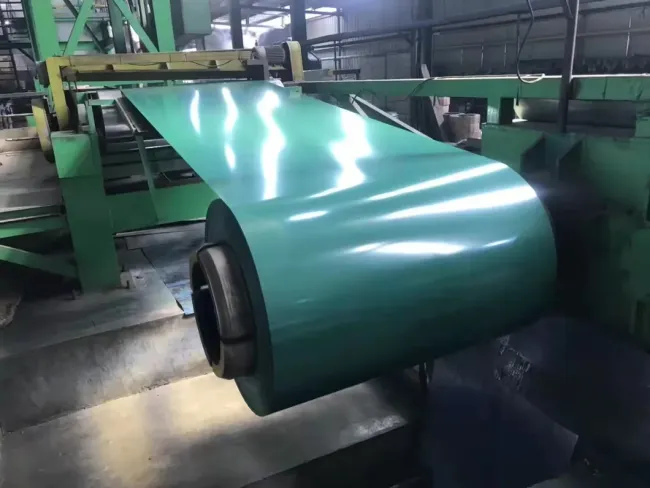

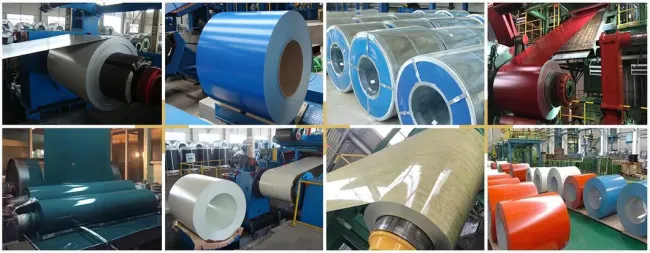

Prepainted Galvanized Steel Coil (PPGI)

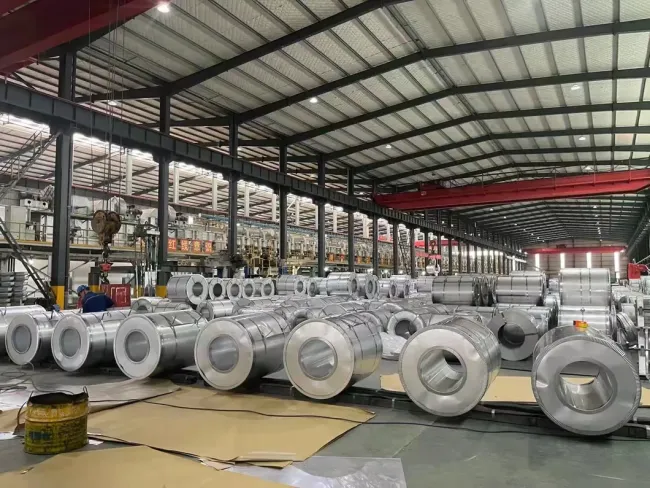

Pre-painted galvanized steel coil, also known as PPGI or color plate, is manufactured using cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied continuously using the roller coating method, followed by baking and cooling processes.
The coated steel plate offers lightweight construction, attractive appearance, and excellent anti-corrosion performance. It can be directly processed and serves as an innovative raw material for construction, shipbuilding, vehicle manufacturing, home appliances, and electrical industries. This product effectively replaces wood with steel, enabling efficient construction while conserving energy and preventing pollution.

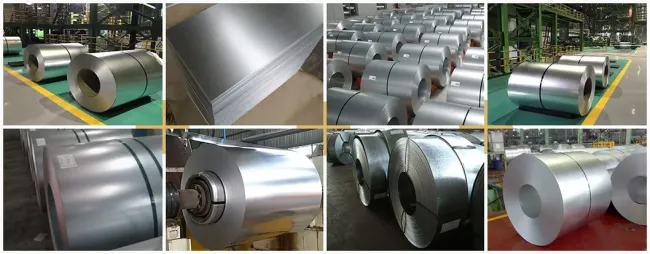

Galvanized Steel Coil
Galvanized sheet refers to zinc-coated steel plate surface. Galvanizing represents an economical and effective rust prevention method, with approximately half of global zinc production utilized for this process.
Surface Requirements:
- Surface State: Varies based on coating treatment methods including regular spangle, small spangle, and large spangle patterns
- Appearance: Must exhibit good appearance without defects harmful to product use such as no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust

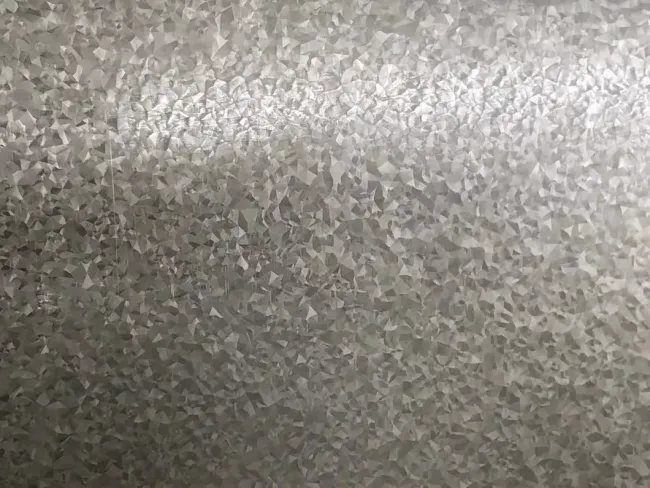

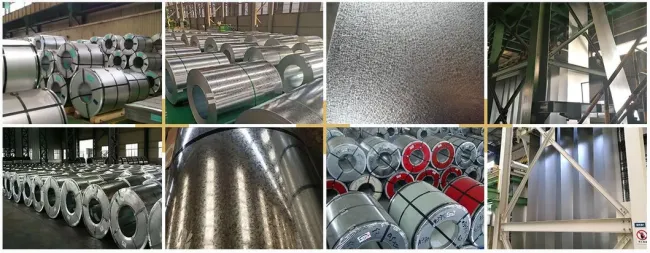

Galvalume Steel Coil
Galvalume steel sheet consists of an aluminized zinc alloy structure composed of 55% aluminum, 43% zinc, and 2% silicon solidified at 600ºC. The complete structure forms a dense tetrad junction crystal comprising aluminized iron, silicon, and zinc.
This product offers exceptional corrosion resistance - three times greater than pure galvanized sheet - and features decorative zinc flower patterns suitable for building exterior panels. The corrosion resistance primarily derives from aluminum's protective functionality.
Galvalume steel sheet demonstrates excellent heat resistance, withstanding temperatures exceeding 300 degrees Celsius. Its high-temperature oxidation resistance resembles aluminum-plated steel plate, making it ideal for chimney tubes, ovens, illuminators, and solar lampshades.

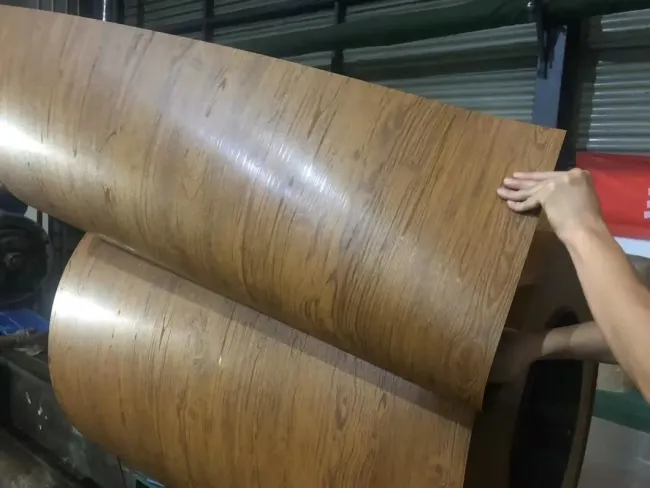

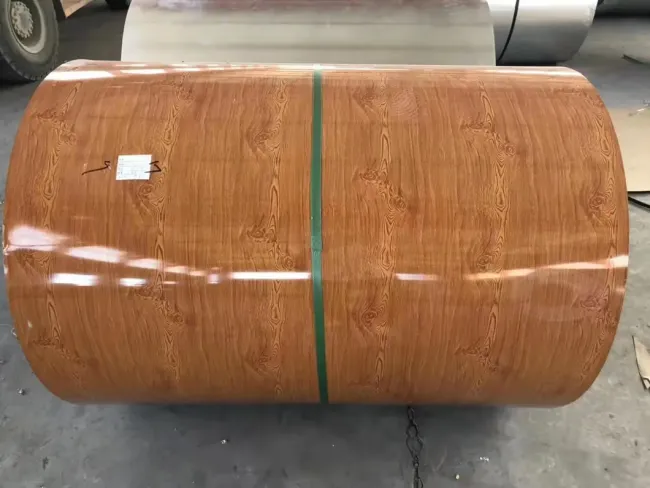

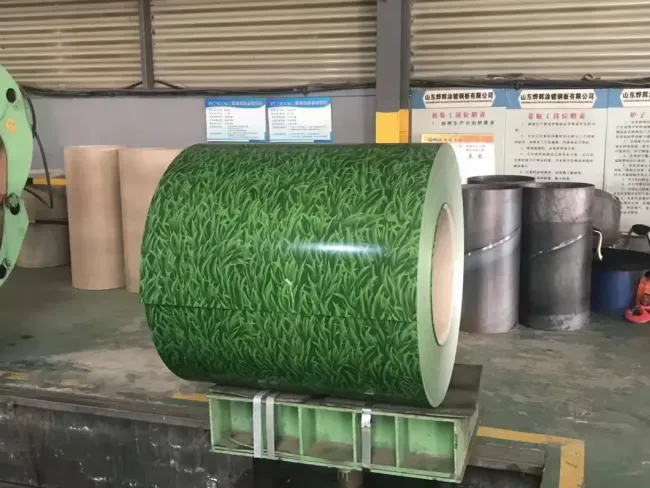

Feature Products: Pattern Print Prepainted Steel Sheet
| Product | Pattern Print Prepainted Steel Sheet |
|---|---|
| Introduction | Color plate printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Wide application range including marble grain, camouflage, wood grain printing color board with bright colors and variety |
| Size | Thickness: 0.17 - 1.5mm, Width less than 1.5mm |
| Color and Pattern | Customized according to client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um/5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil ID | Φ510MM/610MM |
| Application | Widely used in household appliances, furniture, doors and windows, indoor and outdoor decoration fields |
Trade Information
| MOQ | 5 Tons |
|---|---|
| Payment Term | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |

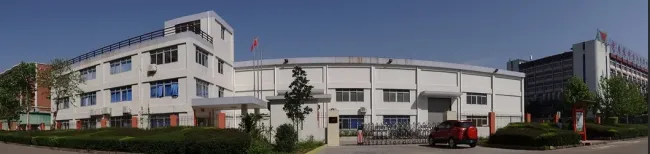

Company Information
Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi City. Our main product portfolio includes color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.
We maintain strong cooperative relationships with several major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin Zongcheng Steel. Our products find extensive applications in steel structure buildings, metal building materials, steel silos, ventilation pipes, mechanical and electrical housing, home appliance plates, elevators, purification plates, automotive stamping parts, and related fields.
Since establishment, our company has collaborated with factories to participate in material supply and technical services for numerous medium and large engineering projects domestically and internationally.
Our employees average over 8 years of industry experience, enabling us to provide customized supply solutions that enhance supply chain efficiency as your optimal partner.
Moving forward, we remain committed to our core value of sustainable development, dedicated to providing customers with perfect demand solutions. Jiufu International will continue collaborating with domestic and foreign customers to establish ourselves as China's premier high-end coating and plating steel products service provider.
