1220*2440mm Prepainted Galvanized Steel Coil with Wooden Pallet Packaging for Container Plate Applications
Price:
US $979-1,126 / Ton
MOQ:
1 Ton
Delivery Time:
Negotiable
Product Description
CGCC Color Coated PPGI Prepainted Galvanized Steel Coil
High-quality prepainted galvanized steel coils available for industrial applications including construction, manufacturing, and infrastructure projects.
Product Specifications
| Product Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
|---|---|
| Thickness | Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface | Galvanized: Regular spangle / non-spangle Zinc (Z30 - Z275) Galvalume: AZ40 - AZ180 Prepainted: PE, HDP, SMP, PVDF coatings |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |

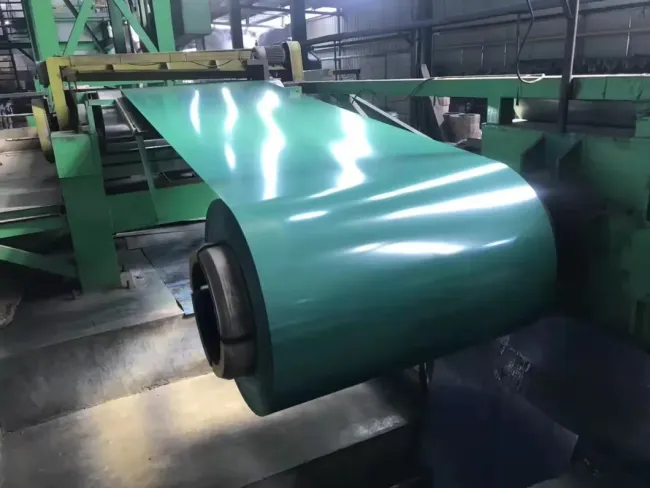

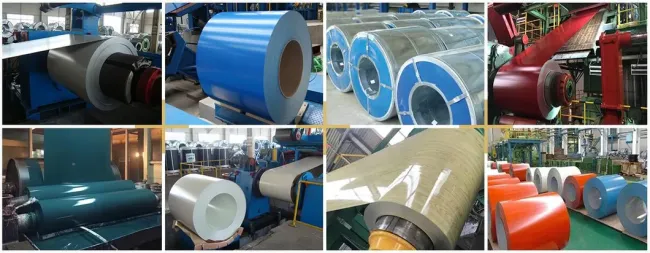

Prepainted Galvanized Steel Coil (PPGI)
Prepainted galvanized steel coil, also known as PPGI or color plate, is manufactured using cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied using continuous roller coating methods followed by baking and cooling processes.
These coated steel plates offer lightweight construction, attractive appearance, and excellent anti-corrosion performance. They can be directly processed and serve as innovative raw materials for construction, shipbuilding, vehicle manufacturing, home appliances, and electrical industries, effectively replacing wood while enabling efficient construction, energy conservation, and pollution prevention.

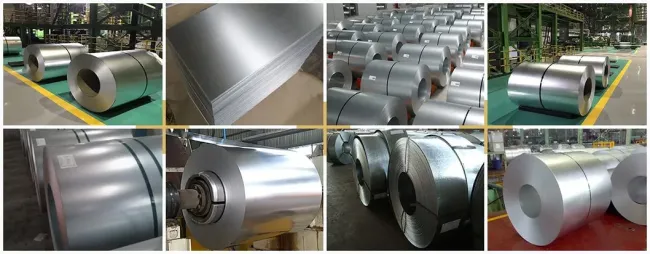

Galvanized Steel Coil
Galvanized sheet refers to zinc-coated steel plate surfaces. Galvanizing represents an economical and effective rust prevention method, with approximately half of global zinc production dedicated to this process.
Surface Requirements
- Surface states vary based on coating process treatments: regular spangle, small spangle, big spangles, etc.
- Galvanized sheets must exhibit good appearance without defects affecting product usability
- Defects include no plating, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, white rust
- Specific appearance defects should be specified in ordering contracts

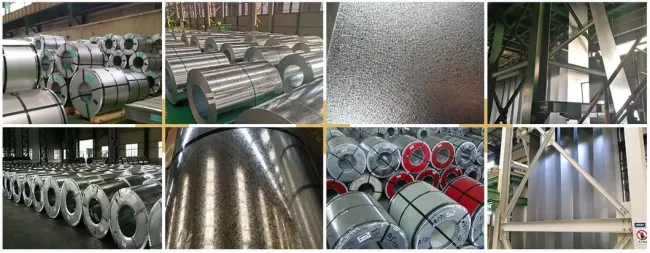

Galvalume Steel Coil

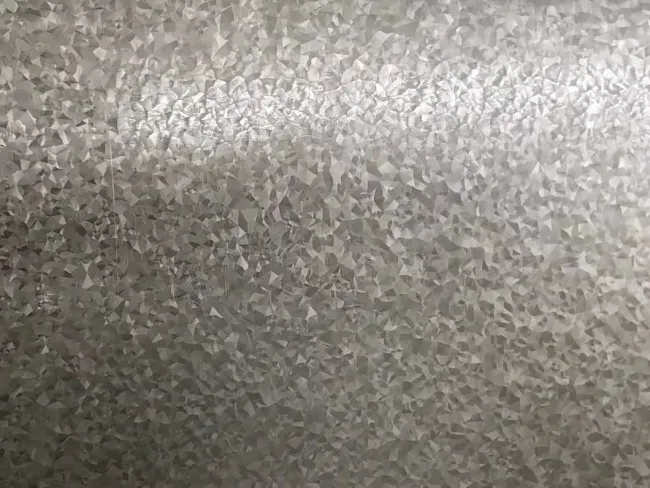

Galvalume steel sheet consists of an aluminized zinc alloy structure composed of 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C. The structure forms a dense tetrad junction crystal comprising aluminized iron, silicon, and zinc.
Key Advantages:
- Superior corrosion resistance - 3 times better than pure galvanized sheet
- Attractive zinc flower surface decoration suitable for building exterior panels
- Excellent heat resistance - withstands temperatures exceeding 300°C
- Similar high-temperature oxidation resistance to aluminum plated steel
- Ideal for chimney tubes, ovens, illuminators, and solar lampshades

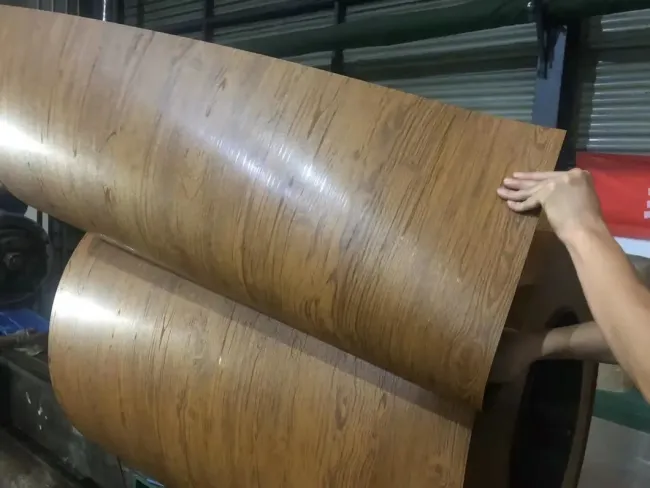

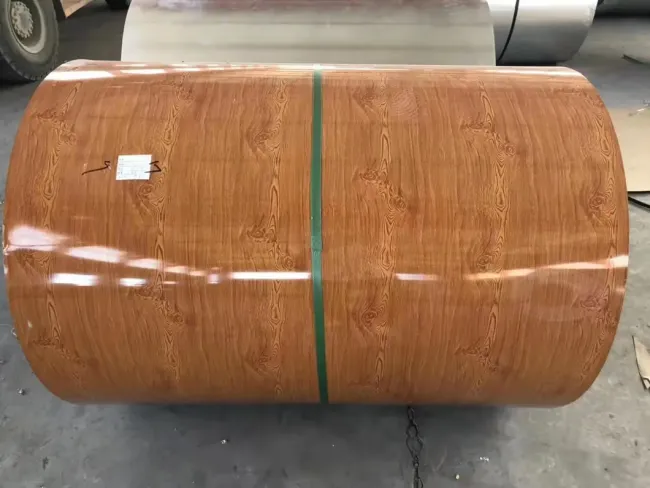

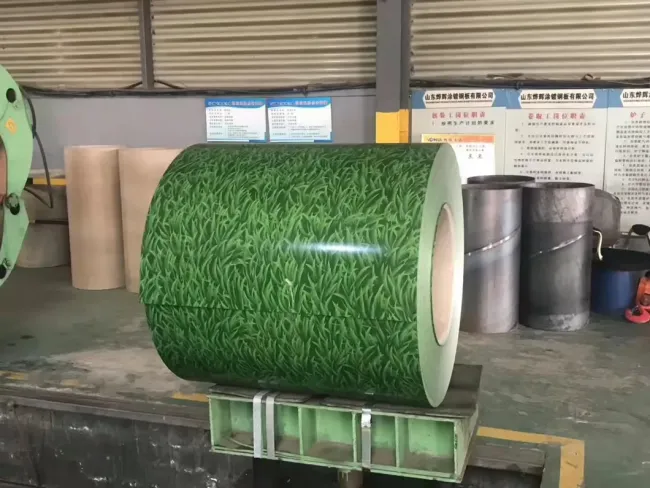

Pattern Print Prepainted Steel Sheet
| Product | Pattern Print Prepainted Steel Sheet |
|---|---|
| Introduction | Color plates printed on galvanized or aluminized zinc substrates using transfer printing or film covering technology |
| Features | Bright colors, wide variety including marble grain, camouflage, wood grain patterns |
| Size | Thickness: 0.17 - 1.5mm (Width less than 1.5mm) |
| Color & Pattern | Customized according to client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um / 5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil ID | Φ510mm / 610mm |
| Application | Household appliances, furniture, doors, windows, indoor and outdoor decoration |
Trade Information
| Minimum Order Quantity | 5 Tons |
|---|---|
| Payment Terms | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |
Company Information

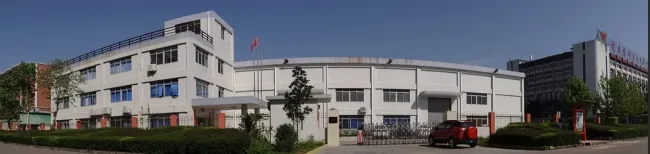

Our company is a modern enterprise specializing in high-end coating plate processing, sales, and distribution, registered in Wuxi City. We offer comprehensive product lines including color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.
We maintain strong cooperative relationships with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, and Jiangyin ZongCheng Steel. Our products are extensively used in steel structure buildings, metal building materials, steel silos, ventilation pipes, mechanical and electrical housing, home appliance plates, elevators, purification plates, automotive stamping parts, and related fields.
Our team averages over 8 years of industry experience, enabling us to provide customized supply solutions that enhance supply chain efficiency. We have participated in material supply and technical services for numerous medium and large domestic and international engineering projects.
Company Vision:
Committed to the value concept of sustainable development, we strive to provide perfect demand solutions while working with domestic and international customers to establish ourselves as China's premier high-end coating and plating steel products service provider.
Committed to the value concept of sustainable development, we strive to provide perfect demand solutions while working with domestic and international customers to establish ourselves as China's premier high-end coating and plating steel products service provider.
