Chromating Oiled Zinc Coated Galvanized Steel Sheet with 0.12mm - 3.0mm Thickness for Container Plate Applications
Price:
US $777-993 / Ton
MOQ:
1 Ton
Delivery Time:
Negotiable
Product Description
Chromating / Oiled Zinc Coated Steel Sheet
Hot Dipped Galvanized Steel with thickness range from 0.12mm to 3.0mm, available in various surface treatments including chromating and oiling for enhanced corrosion protection.
Product Specifications
Available Product Types
| Products Name | Galvanized Steel Sheet / Galvalume Steel Sheet / Prepainted Galvanized Steel Sheet |
| Thickness | Galvanized steel sheet: 0.12 - 3.0mm Galvalume Steel Sheet: 0.25 - 3.0mm Prepainted Galvanized Steel Sheet: 0.12 - 1.2mm |
| Width | 914mm, 1000mm, 1200mm, 1219mm, 1220mm, 1250mm or custom requirements |
| Length | Custom length as per customer requirements |
| Coil Weight | 2 - 8 Tons |
| Coil Inner Diameter | 508mm or 610mm |
| Surface | Galvanized steel sheet: Regular spangle / non-spangle Zinc: Z30 - Z275 Galvalume Steel Sheet: AZ40 - AZ180 Prepainted Galvanized Steel Sheet: Painting Type: PE, HDP, SMP, PVDF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS, AS, etc. |
Products Center

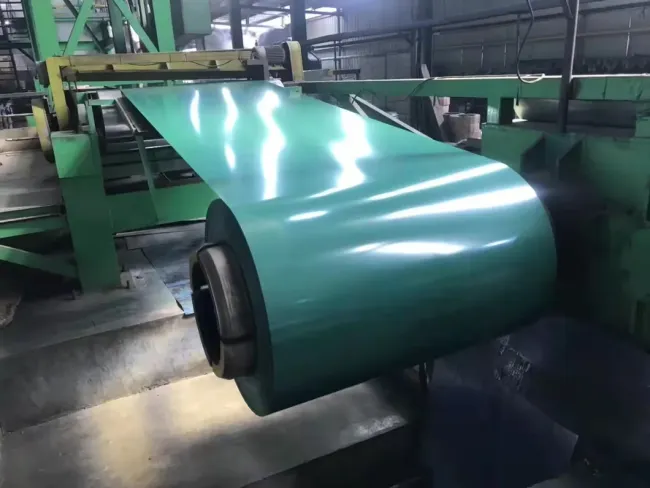

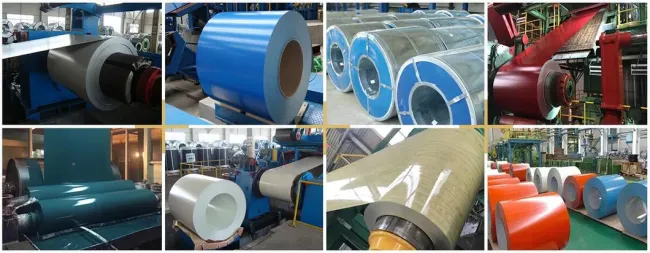

Prepainted Galvanized Steel Coil (PPGI)
Color coated steel plate manufactured using cold rolled steel plate and galvanized steel plate as base materials. After surface pretreatment including degreasing, cleaning, and chemical conversion treatment, the coating is applied using continuous roller coating method followed by baking and cooling processes.
Key Advantages:
- Light weight with attractive appearance
- Excellent anti-corrosion performance
- Suitable for direct processing
- Ideal raw material for construction, shipbuilding, vehicle manufacturing, home appliances, and electrical industries
- Promotes steel-for-wood substitution, efficient construction, energy saving, and pollution prevention

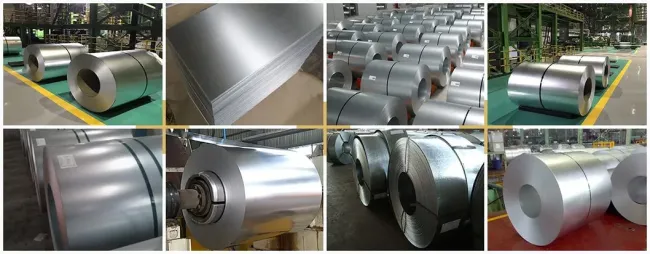

Galvanized Steel Coil
Surface zinc-coated steel plate providing economical and effective rust prevention. Galvanizing accounts for approximately half of the world's zinc production usage.
Surface Requirements:
- Surface states vary by coating process: regular spangle, small spangle, big spangles, etc.
- Must have good appearance free from defects affecting product use
- No plating defects, holes, cracks, scum, excessive thick plating, abrasion, chromic acid dirt, or white rust

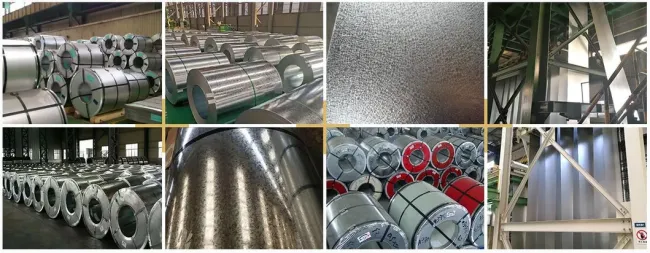

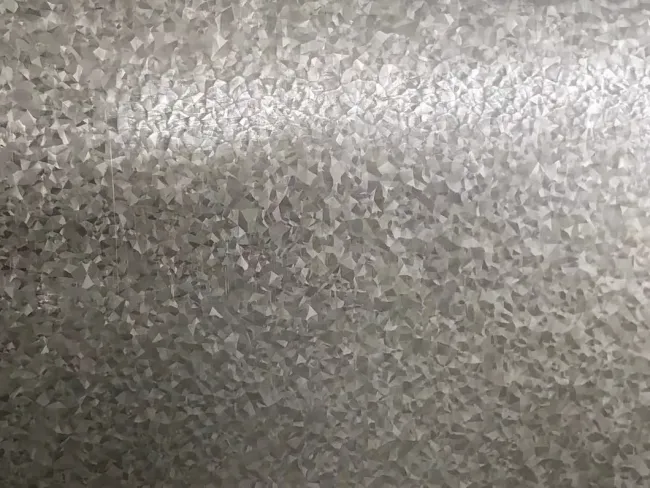

Galvalume Steel Coil
Alloy composition of 55% aluminum, 43% zinc, and 2% silicon solidified at 600°C, forming a dense tetrad junction crystal structure of aluminized iron, silicon, and zinc.
Performance Benefits:
- Superior corrosion resistance - 3 times better than pure galvanized sheet
- Attractive zinc flower surface decoration suitable for building exterior panels
- Excellent heat resistance - withstands temperatures over 300°C
- Similar high-temperature oxidation resistance to aluminum plated steel
- Ideal for chimney tubes, ovens, illuminators, and solar lampshades

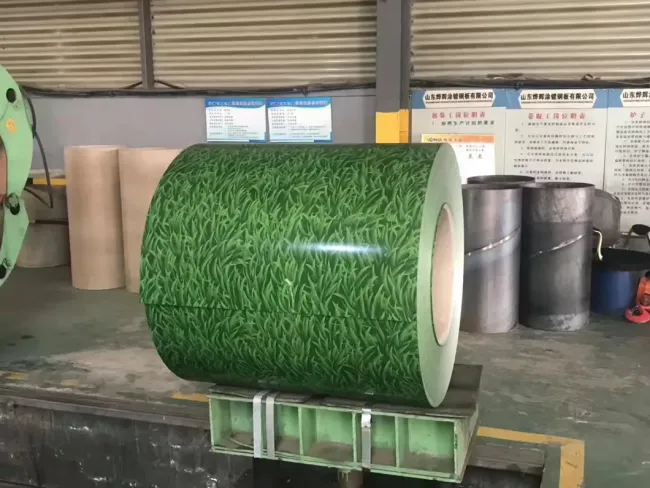

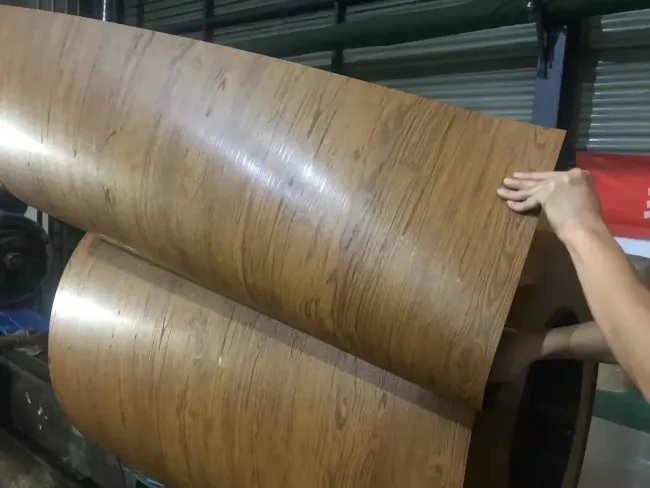

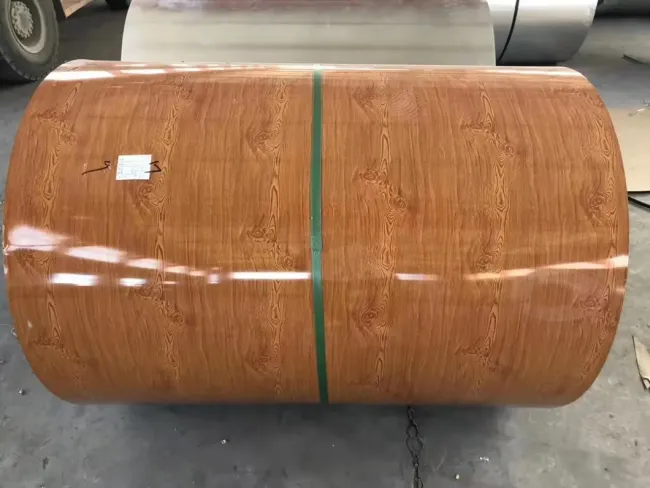

Feature Product: Pattern Print Prepainted Steel Sheet
| Product | Pattern Print Prepainted Steel Sheet |
| Introduction | Color plate printed on galvanized plate, aluminized zinc plate and other substrates using transfer printing or film covering technology |
| Features | Bright colors, wide variety including marble grain, camouflage, wood grain printing patterns |
| Size | Thickness: 0.17 - 1.5mm, Width: less than 1.5mm |
| Color & Pattern | Customized as per client requirements |
| Base Material | Galvanized steel sheet / Galvalume steel sheet |
| Coating Thickness | 20-25um / 5-10um |
| Coating Type | Above 2 layers, bottom 1 layer |
| Coil ID | Φ510mm / 610mm |
| Application | Household appliances, furniture, doors and windows, indoor and outdoor decoration |
Trade Information
| MOQ | 5 Tons |
| Payment Term | TT or 100% LC at sight |
| Packing | Standard Sea Worthy Package |
| Loading Port | Shanghai Port, Qingdao Port, Tianjin Port |
| Container Loading | 20ft container FCL, LCL |
| Delivery Time | Within 15 days |

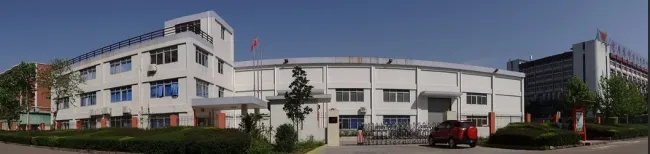

Company Information
Our company is a modern enterprise specializing in high-end coating plate processing, sales, and circulation, registered in Wuxi City. We offer comprehensive product lines including color coating, galvanized, aluminum zinc plating, zinc aluminum magnesium, and aluminum magnesium manganese high-end metal plates.
Strategic Partnerships & Applications:
- Strong cooperation with major domestic steel mills including Ye Hui (China), Baoshan Iron & Steel, Shougang, Magang, Hangang, Rizhao Steel, Jiangyin ZongCheng Steel
- Products widely used in steel structure building, metal building materials, steel silo, ventilation pipes, mechanical and electrical housing, home appliance plate, elevator, purification plate, automotive stamping parts
- Extensive experience in material supply and technical service for medium and large engineering projects domestically and internationally
Our employees average over 8 years of industry experience, enabling us to provide customized supply solutions and improve supply chain efficiency. We adhere to the value concept of long-term sustainable development and are committed to providing perfect demand solutions while working with domestic and foreign customers to establish ourselves as China's premier high-end coating and plating steel products service provider.
