Bulletproof 750mm Metal Window Screen Mesh
Bulletproof 750mm Metal Window Screen Mesh

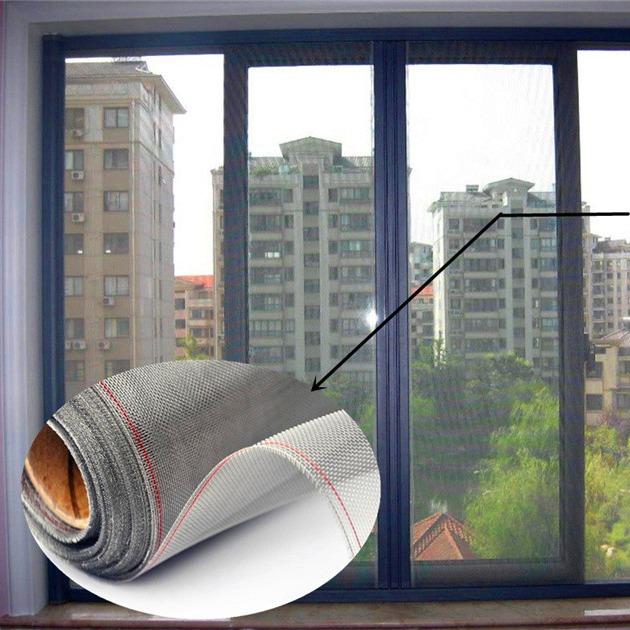

Window screen is also known as wire screen, insect screen or fly screen. It is used to keep leaves, debris, insects, birds and other animals from entering a building or a screened structure such as a porch, while permitting fresh air-flow. Therefore it is applied to filtration, windows for mosquitoes and flies, doors, etc.
Stainless steel insect mesh is the most durable of the materials available for insect mesh and has excellent resistance to corrosion. Stainless steel insect mesh keeps out flies, wasps, bees, mosquitoes and other insects, but not midges.
Window Screen Mesh Specification
Black SS Security Insect Screen
1. material:AISI316/304.
2. mesh:11 mesh.
3. wire dia : 0.8mm
4. meet Australia standard
Material |
Mesh per inch |
Wire Dia (mm) |
Wire Dia (inch) |
Open Area % |
AISI 316 or 304 |
10 x 10 |
0.9 |
0.035" |
41.7 |
AISI 316 or 304 |
10 x 10 |
1.2 |
0.028" |
27.8 |
AISI 316 or 304 |
10 x 10 |
0.8 |
0.032" |
46.9 |
AISI 316 or 304 |
10 x 10 |
1.15 |
0.045" |
29.9 |
AISI 316 or 304 |
11 x 11 |
0.8 |
0.032" |
42.5 |
AISI 316 or 304 |
11 x 11 |
0.7 |
0.027" |
48.3 |
AISI 316 or 304 |
12 x 12 |
0.7 |
0.027" |
44.8 |
AISI 316 or 304 |
12 x 12 |
0.58 |
0.023" |
52.8 |
Special mesh can be made according to customers requirement |
||||
Chemical Composition:
| Chemical composition of stainless steel wire: | ||||||||
| Grade | Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | =0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =0.030 | =1.00 | =2.00 | =0.045 | =0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =0.045 | =1.00 | =2.00 | =0.045 | =0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =0.030 | =1.00 | =2.00 | =0.045 | =0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =0.12 | =0.75 | =1.00 | =0.040 | =0.030 | =0.60 | 16.00~18.00 | - |
| 430A | =0.06 | =0.50 | =0.50 | =0.030 | =0.50 | =0.25 | 14.00~17.00 | - |
Features:
1. Against theft, bulletproof, super resistance to impact, insect and so on.
2. mooth surface, mesh standard, latitude and longitude curve is consistent, its remarkable characteristic is BanShi hard like iron, is against theft, bulletproof, home of choice for workplace safety protection.
3. Bulletproof Mesh Screen Features :
-- very high bounce impact force,the most feature and application.
-- as window screen ,it has good view inside room,but hazy for person outside room
-- easy to clean
-- power coated
