1/8inch Flexible Stainless Steel Cable Netting For Zoo Mesh / Animal Enclosure Mesh
Flexible Stainless Steel Cable Mesh for Zoo Mesh & Animal Enclosure Mesh
Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L. Stainless steel rope mesh can be divided into two kinds according to the combination method: stainless steel knotted rope mesh and stainless steel ferrule rope mesh. The former is combined by the ropes winded together. And the latter is combined by the ferrules which are made up from the same grade stainless steel.
Also to give animals a good living environment, Zoo facilities set high demands on the chosen products.
| Material | Stainless steel 304, 304L,316 and 316L |
| Rope diameter | 1/8", 3/32",1/16",3/64", and other diametersare also available |
| Rope construction | 7 x 7 and 7 × 19 are the main used,and 1 x 7 and 1 × 19 are also supplied. |
| Mesh apertures | 1" x1",1-1/2" x 1-1/2",2" x2",3" x 3"and 4" x 4" |
| Connection | Knotted or with ferrules. |
| Features | 1.Safety 2.Transparency 3.Anti-corrosion 4.Lightweight and good flexibility 5.Environment protection 6.Strong and durable structure 7.Easy to clean and disinfect 8.Good perspective |

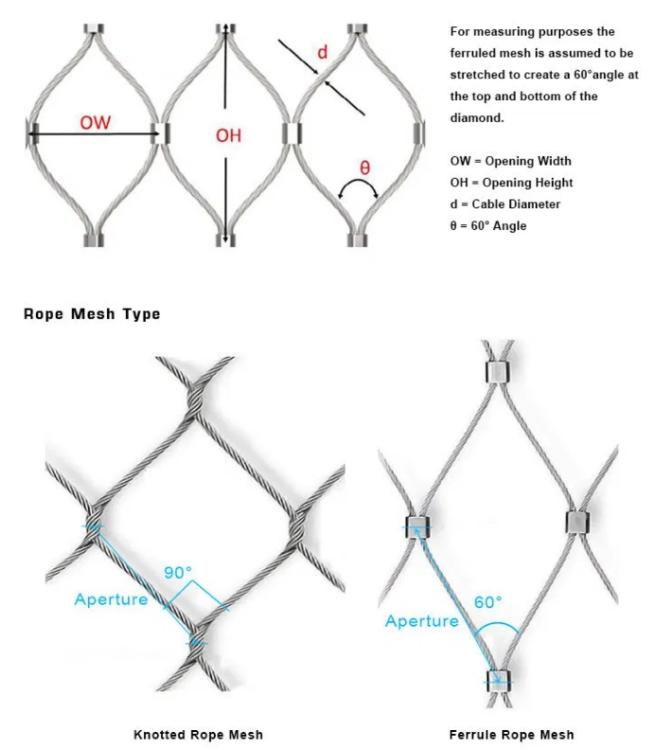

Structure
Weaving Types
Handwoven, ferruled type.
Use of stainless steel wire rope mesh
Zoo fence: animal enclosures, aviary mesh, bird cage, wildlife park, marine park, etc.
Protective device: playground fence, acrobatic show protection net, wire rope mesh fence, etc
Safety net: stair/balcony railing, balustrade, bridge safety net, anti-fall net, etc.
Decorative net: garden decoration, wall decoration, interior decoration net, outdoor decoration, green wall system
Advantages of stainless steel cable mesh
1. Excellent flexible performance.
2. Virtually indestructible.
3. Most impacting resistant and breaking resistant force, most resisting rain, snow,hurricane
4. High strength, strong toughness,free angles curving and fold, easy for transportation and installment.
5. Service life is over 30 years.
Material: SUS302, 304, 316, 316L
Wire diameter: 1.0mm-3.0mm
Structure:7*7,7*19.
Mesh Opening Size:1"*1",2"*2",3"*3",4"*4".

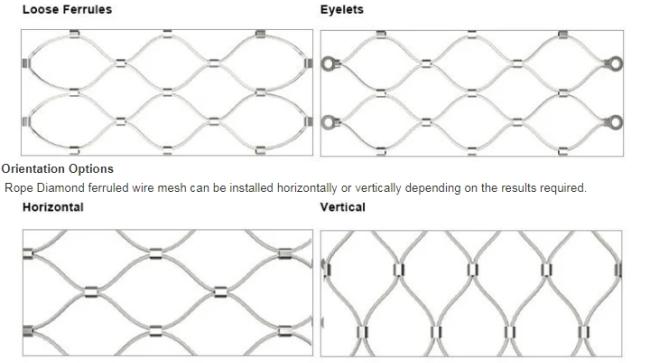

Edging Options
optionally be edged to order, ready for immediate installation:
Specification
Knotted mesh:
| Code | Rope Construction | Rope Diameter | Opening Size | Breaking Force | ||
| Inch | mm | Inch | mm | KN | ||
| BR-01 | 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| BR-04 | 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| BR-05 | 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| BR-08 | 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| BR-09 | 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| BR-10 | 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| BR-11 | 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| BR-12 | 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| BR-13 | 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| BR-14 | 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| BR-16 | 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| BR-17 | 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| BR-18 | 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| BR-19 | 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
| BR-20 | 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| BR-21 | 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| BR-22 | 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| BR-23 | 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
| BR-24 | 7 × 7 | 3/64 | 1.2 | 0.8" × 0.8" | 20 × 20 | 1.22 |
Specifications can be customized according to customer needs.
Ferruled mesh:
| Code | Rope Construction | Rope Diameter | Aperture | Breaking Force | |
| Inch | mm | mm | kN | ||
| BR-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
| BR-04 | 7 × 7 | 3/32 | 2.4 | 100 × 173 | 4.18 |
| BR-05 | 7 × 7 | 3/32 | 2.4 | 90 × 156 | 4.18 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 80 × 139 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
| BR-08 | 7 × 7 | 5/64 | 2 | 100 × 173 | 3.17 |
| BR-09 | 7 × 7 | 5/64 | 2 | 90 × 156 | 3.17 |
| BR-10 | 7 × 7 | 5/64 | 2 | 80 × 139 | 3.17 |
| BR-11 | 7 × 7 | 5/64 | 2 | 70 × 121 | 3.17 |
| BR-12 | 7 × 7 | 1/16 | 1.6 | 80 × 139 | 2.17 |
| BR-13 | 7 × 7 | 1/16 | 1.6 | 70 × 121 | 2.17 |
| BR-14 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
| BR-16 | 7 × 7 | 3/64 | 1.2 | 80 × 139 | 1.22 |
| BR-17 | 7 × 7 | 3/64 | 1.2 | 60 × 104 | 1.22 |
| BR-18 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
| BR-19 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 |

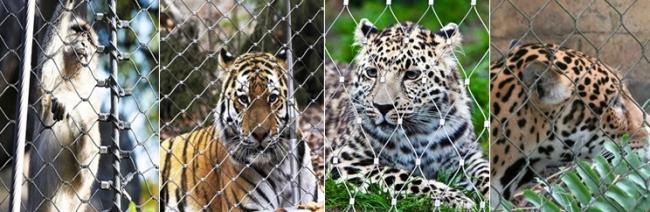

For aviary mesh / zoo fence
Stainless steel cable net is used for bird/aviary cage, zoo mesh fence, which are usually used for outdoor bird nets to cover the tops and sides of the birds' gardens and to build miniature natural ecological landscapes for birds. A good viewing line gives birds a free space to fly freely.
| Model | Structure | Rope Diameter | Mesh Opening |
| 2076 | 7*7 or 7*19 | 2.0mm | 76*76mm |
| 2051 | 7*7 or 7*19 | 2.0mm | 51*51mm |
| 1651 | 7*7 or 7*19 | 1.6mm | 51*51mm |
| 1638 | 7*7 or 7*19 | 1.6mm | 38*38mm |
| 1238 | 7*7 or 7*19 | 1.2mm | 38*38mm |
| 1230 | 7*7 or 7*19 | 1.2mm | 30*30mm |
| 1225 | 7*7 or 7*19 | 1.2mm | 25*25mm |
Specifications can be customized according to customer needs.
Feature:
1.High strength, strong toughness, free-angles curving and fold,it is discreet and portable.
2. Lightweight, high-strength, never rust, softness.
3. Anti-corrosive, resist the rust, can be repeated use.
4. Impact resistance, breaking force, the overall structure of the rugged life of more than 30 years
5. The mesh size and diameter can be modif
