High Intensity Security Insect Screen Powder Coated 2000mm Length
Price:
USD25.50-30.85/m2
MOQ:
10pcs
Delivery Time:
5-7days
Brand:
X MESH
Product Description

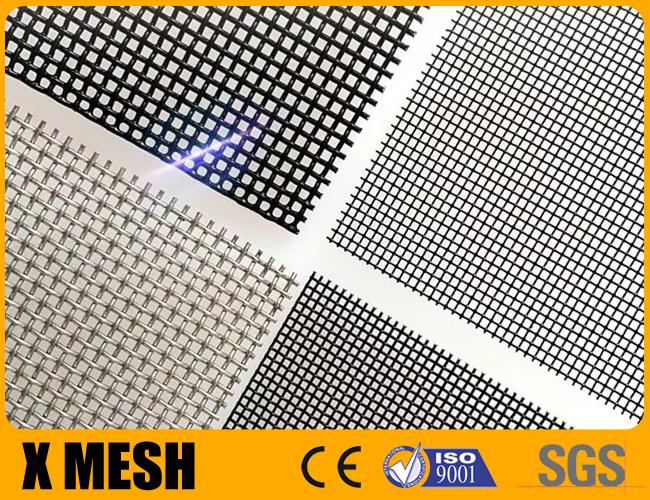

High Intensity Fly Screen Mesh Stainless Steel Powder Coated with 2000mm length
Fly Screen Mesh Introduction:
Window Security Screens also called anti-theft mesh, security mesh, anti-bullet mesh, is one of our company's flagship products.This product adopts high quality stainless steel wire to plain weave through advanced CNC machine, then cutting,leveling and sueface scalling passivation, electrostatic powder spraying.It's the first choice for home and office security protection. As the product is mostly used to manufacture doors and windows, it is also called metal security door and window screen.
Fly Screen Mesh Specification:
Material |
Mesh Size |
Hole Size |
Sheet Size |
General tensile 316 Marine grade stainless steel wire |
8mesh×1.2mm |
2.0mm |
Width×Length750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm |
9mesh×1.0mm |
1.8mm |
||
10mesh×0.8mm |
1.8mm |
||
10mesh×0.9mm |
1.6mm |
||
10mesh×1.0mm |
1.5mm |
||
11mesh×0.8mm |
1.5mm |
||
11mesh×0.9mm |
1.4mm |
||
12mesh×0.7mm |
1.4mm |
||
12mesh×0.8mm |
1.3mm |
||
12mesh×0.9mm |
1.2mm |
||
14mesh×0.5mm |
1.3mm |
||
14mesh×0.55mm |
1.2mm |
||
14mesh×0.6mm |
1.2mm |
||
18mesh×0.32mm |
1.0mm |
||
|
|
|||
High tensile 316 Marine grade stainless steel wire |
8mesh×1.2mm |
2.0mm |
Width×Length750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm |
8mesh×1.3mm |
1.9mm |
||
9mesh×0.9mm |
1.9mm |
||
9mesh×1.0mm |
1.8mm |
||
10mesh×0.9mm |
1.6mm |
||
10mesh×1.0mm |
1.5mm |
||
11mesh×0.8mm |
1.5mm |
||
11mesh×0.9mm |
1.4mm |
||
1.Sheet Size:Can be customized2.Coating Color:Black/Gray/White3.Packing:50 pcs per polywood box |
|||
Product name |
Specification |
Introduction |
||
Mesh/Inch |
Wire diameter |
Panel size(mm) |
|
|
Stainless steel flyscreen mesh |
10 × 10 |
0.9mm |
1500 x 25001300 x 26001200 x 20001200 x 24001000 x 2400 |
Material: T 304, T 316 |
11 × 11 |
0.8mm |
|||
12 × 12 |
0.7mm |
|||
Fly Screen Mesh Benifites:
Clear from inside,can not be seen thru from outside,the security window screens are flat and hard with best impact resistance,corrosion prevention,Anti fire ,safety and burglary resistan
Security insect screens are plain woven by steel wires,they are flat and hard with best impact resistance,corrosion prevention,Anti-fire,safety and burglary resistan
Fly Screen Mesh Testing Standards:
1. Diagonal Deviation, strict controls of +/- 5mm
2. Fine Grinding - The Surface Treatment Of 0.03mm
3. Double Plain Weave High Hardness To Bulletproof
4. Precipitation Of Metal Cons ,Non Magnetic
5. Steel Wire After Micron Grade Precision Machining
Fly Screen Mesh Standards:
1. Knife Shear Test(AS5039-2008)
2. Anti-Jemmy Test(AS509-2008)
3. Pull Test(AS5039-2008)
4. Durable more than 10 years(AS2331.31-2001)
5. 3006 Hour Salt Spray Tests, 534 hours UV Test
6. Aluminium Frame Tests
7. Stainless Mesh Tests
Fly Screen Mesh Application:
Suitable for the new high-end doors and Windows , meet the needs of the high-end customers .It can have the anti-insect effect and can also play the role of guard against theft, and do not affect beauty.
Hardness is good.Because of the high strength so whether it is fixed on the wall might form, it both has a good enough compressive ability, not afraid of invasions.Not afraid of wet, the sun of fierce sun or erosion.
It is very popular with people, the market prospects are very broad.
