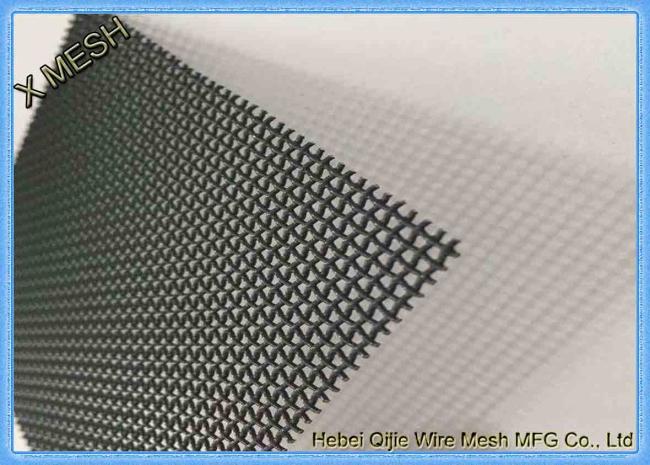

304 17 X 16 Stainless Steel Insect Screen Bulletproof
fly screen mesh , stainless steel weaving wire mesh screen
This product is made of high strength stainless steel 304 wire loom manufactured by heavy precision, with pest control, bullet-proof, ventilation, beautiful, safe, explosion-proof, anti-aging and so on. Bring you super clear visual enjoyment and safest protection.
Our Testing Standards
-
Diagonal Deviation, strict controls of +/- 5mm
-
Fine Grinding - The Surface Treatment Of 0.03mm
-
Double Plain Weave High Hardness To Bulletproof
-
Precipitation Of Metal Cons ,Non Magnetic
-
Steel Wire After Micron Grade Precision Machining
Approval Astrilian:
1. Knife Shear Test,
2. Fire Test,
3. Jammy Test,
4. The Probe Test
5. The 1000hours Salt Spry Test
Material
1). AISI 304 stainless steel wire (normal material)
2). Marine grade 316 stainless steel wire ( advantage products)
3). High tensile marine grade 316 stainless steel wire ( core products)
4). 201 stainless steel wire, galvanized steel wire and low carbon steel wire( lower cost )
Mesh Size x Wire Dia:
10mesh x 0.8mm, 10mesh x 0.9mm
11mesh x 0.8mm, 11mesh x 0.9mm, 12mesh x 0.7mm
14mesh x 0.5mm, 14mesh x 0.55mm, 14mesh x 0.6mm
Avaliable Screen Size
Width: 750mm, 900mm, 1000mm, 1200mm, 1500mm
Length: 2000mm, 2400mm, 3000mm
Coating Color
Black/Gray/White epoxy coated etc
Specification:
Stainless Steel Security Window Screen:
product specifications:| Product | Stainless Steel Security Window Screen |
| Material | SS302, 304, 304L, 316, 316L, etc |
| Weaving Pattern | Plain Weaving; Twill Weaving; Dutch Weaving; etc |
| Wire Dia. | 0.18mm-1.2mm |
| Mesh Number | 11mesh-30mesh |
| Width | 0.6m-1.5m |
| Edge Processing | Closed Selvage; Flash; Perm Border |
| Color | White; Black; Green; Gray; etc |
| Characteristic | acid proof, alkali proof, high temperature resistant, wear-resisting |
| Application | 1. stall in window or door as window screen or mosquito 2. used in greenhouse as anti-insect or anti trip net 3. used in fishing breed or poultry rasing as pool or garden guard 4. uesd in agricutlure product for food drying |
Material type: Stainless steel 304,304l,316,316l,
Weave type: plain weave style
Common specification: 11 mesh * 0.8mm wire, 11 mesh* 0.9mm wire,10 mesh * 0.9mm wire, 12mesh* 0.7mm wire,14 mesh* 0.6mm wire, 14 mesh * 0.7mm wire
Standard size: 750mm×2000mm 900mm×2000mm 1200mm×2000mm 750mm×2400mm 900mm×2400mm 1200mm×2400mm,1300mmx2600mm, 1500mmx2400mm.
Color: black,white, gray, dark gray,
