Ole Electro Hot Dipped Galvanized Welded Wire Mesh 16 Gauge
ole Electro Hot Dipped Galvanized Welded Wire Mesh Steel Fence Welding Wire Fencing
Welded wire mesh have smooth mesh surface, well-proportioned meshes, strong welded points and bright luster, the mesh does not come loose even if cut in parts or being exerted force on parts, Compared with general iron wire, welded mesh are better in respects of anti-corrosive and anti-rust.
Product Description
GALVANIZED WELDED MESH
*Material:Low carton steel wire Q195
*Processing mode:welded
*Classification:
I.Electric galvanized welded mesh;
II.Hot dipped galvanized welded mesh
*Application:Industry,agriculture,building,transportaion and mining.Mainly used in wall building,concerte placing kinds of fencing and decoration.
| WELDED WIRE MESH | ||||
| Hloe Size | Wire Diameter | Width&length | ||
| In Inch | In MM | In BWG | In MM | Width:0.5mm-2.0mm Length:25m,30m Other sizes can be made as request |
| 1/2" | 12.7mm | BWG16-BWG28 | 1.65mm-0.356mm | |
| 3/4" | 19.05mm | BWG16-BWG27 | 1.65mm-0.406mm | |
| 1" | 25.4mm | BWG14-BWG20 | 2.1mm-0.88mm | |
| 1"x2" | 25.4x50.8mm | BWG14-BWG19 | 2.1mm-1.06mm | |
| 2" | 50.8mm | BWG12-BWG18 | 2.76mm-1.24mm | |
| 2"x4" | 50.8mmx101.6mm | BWG10-BWG18 | 3.4mm-1.24mm | |
| 1/4" | 6.35mm | BWG19-BWG24 | 1.06mm-0.56mm | |
| 3/8" | 9.52mm | BWG18-BWG27 | 1.24mm-0.406mm | |
| 5/8" | 16mm | BWG18-BWG27 | 1.24mm-0.406mm | |
| New mesh sizes:1"x1/2:,30x30mm,60x60mm | ||||
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.

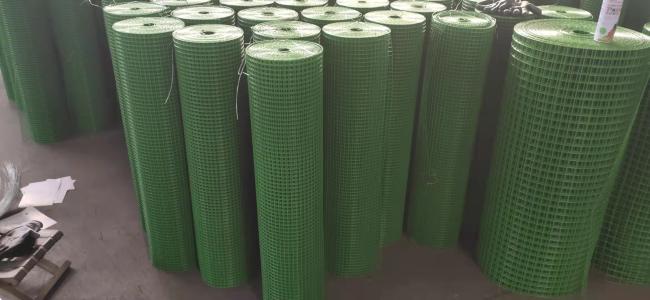

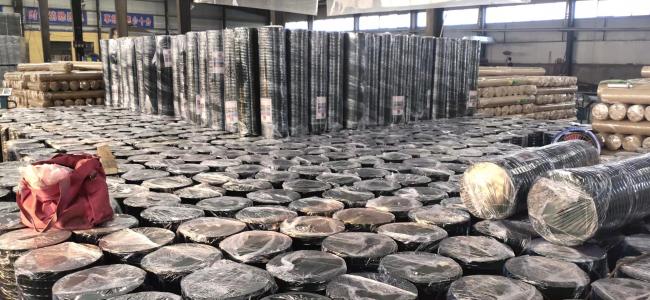

Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.
