Stainless Steel Plate Sheet Slotted Hole Expanded Metal mesh
Stainless Steel Plate Sheet Slotted Hole Expanded Metal
There are many names for aluminum mesh: aluminum mesh, anodized aluminum mesh, aluminum decorative mesh, curtain wall aluminum mesh, aluminum curtain wall mesh, aluminum stretched mesh, fluorocarbon sprayed aluminum mesh, aluminum mesh, aluminum expanded mesh, aluminum oxide mesh, Exterior wall aluminum mesh, decorative aluminum mesh, ceiling aluminum mesh.

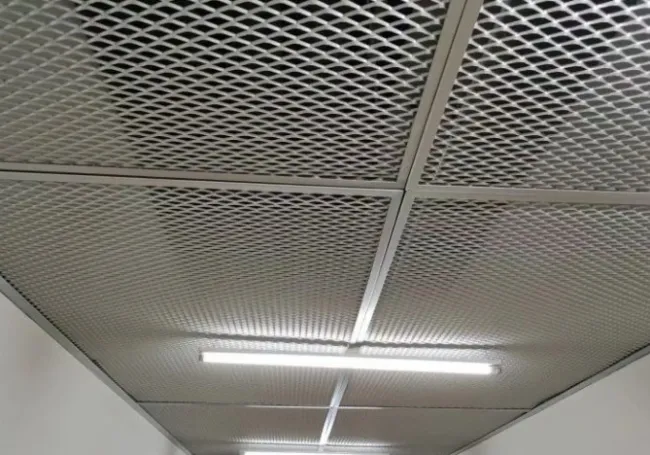

Features of ceiling aluminum mesh: high appreciation, strong practicability, strong ventilation, strong light transmission, sound absorption, simple construction, convenient and simple daily maintenance.
Application of ceiling aluminum mesh: suitable for hotel halls, railway station waiting rooms, platforms, conference halls, entertainment halls, large workshops, etc. Mechanical shearing expands the length of the original steel plate several times to dozens of times. It also increases the strength and hardness of the steel plate, and reduces its own weight, air can flow through the mesh, no waste is generated from it, and the cost is reduced
1.Material:superior quality galvanzed,stainless,aluminium and brass sheet
2.Sheet thickness:0.1-10mm
3.Width:0.2-2.4m
4.Length:0.5-5m
5.Opening shapes:round,oval,hexagonal and diamond etc.
6. SWDxLWD: 2mmx4mm~100mmx200mm
7.Application:

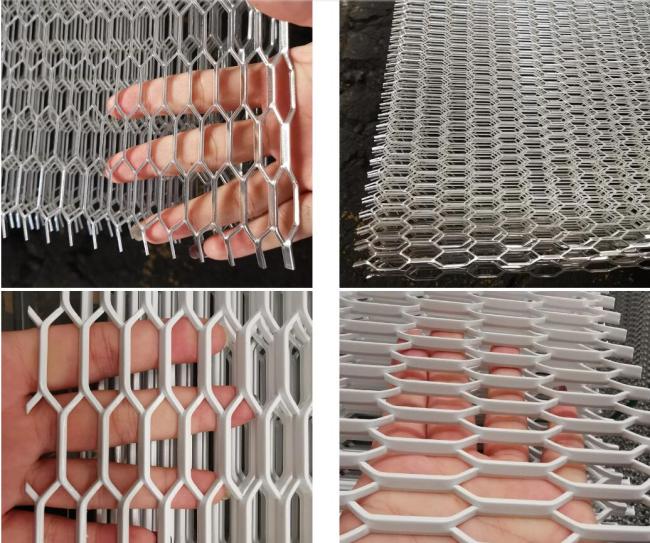

Expanded Metal is also named Expanded Mesh or Expanded Metal Mesh. Expanded Metal is widely in industrial, building, household railway, highway, construction, grain, mechanical maintenance, and musical facilities. road, railway, civil building, water conservancys building; The protecting, electrical equipment, window and aquatic products breed.
| Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness | Opening in Width mm |
Opening in Length mm |
Stem | Roll Width mm |
Roll Length mm |
Weight kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
Production process
Expanded: The expanded process is using the automatic expanded machines to cut the metal sheet in the transverse direction and at the same time stretch in length without loss the material. And then pass through a cold rolled reducing mill. During the process the length of the sheet is prolonged about 5%, but the width of the sheet remains the same.
Packaging & Shipping
1. On galvanized iron pallet and Free-fumigation wooden case with waterproof cloth
2. On galvanized iron pallet with waterproof cloth
3. Free-fumigation wooden case
4. In Free-fumigation wooden case with waterproof paper
5. In carton box
6. In roll with woven bag,the biggest width is 3000mm
7. In bulk or In bundle
