Welded 450mm Razor Barbed Wire Mesh Protective Diamond

Price Negotiable
Price: Negotiable
MOQ: 10tons
Delivery Time: 15-18days
Brand: qijie
Product Description

Welded Razor Barbed Wire Mesh Protective Razor Wire Mesh China Supplier​


Product Introduction



Welded razor wire mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together, packaging into a roll form for transport. Welded Razor Wire Mesh is used in operations to pave the field after the installation of a blade barrier. This product can protect you and your property, and ensures the safety of the protective barriers.

This welded razor wire mesh security fence product is almost impossible to climb or cut off with the standard tools, also it has a neat appearance. Welded razor wire mesh is installed in various parts of the world's airports, water substation, the border fence, oil depots, factories and so on.



For Concertina Wire, we have many kinds:
Single coil Razor Wire, Crossed Razor Wire, Flat warp razor wire. , Razor Wire Fence


Single Coil Razor Wire
Single coil Concertina Wire is installed without clips, it runs in natural loops on walls. Cost less and can be easily installed.

Crossed Razor Wire
Two pieces of razor wire were bound together by clips to make it more strong. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful features and practicality.

Flat Warp Razor Wire
Flat warp razor wire is a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with line razor barbed wire to build a defending wall or use it alone as a fence.

Razor Wire Fence
The welded razor mesh fence is a new form of razor-bared wire mesh for security, it with a practical blade, and the feature looks very beautiful. It can be used for guard nets of fences, doors, and windows. The specification can be designed to the customers' needs.

Razor barbed wire is also named concertina coils or razor-type barbed wire. It is a new type of guard fence.

Characteristics: With beautiful and sharp blades and strong core wire, razor wire has the features of good deterrent effects, nice appearance, easy installation, economical and practicality, and other properties.

Application: Razor barbed wire is widely used in apartment houses, organization units, frontier fences, and other sites requiring severe fencing and security.

Classification: Razor wire can be classified into concertina coils, straight-type razor wire, crossed type, and flat type according to the installation models.

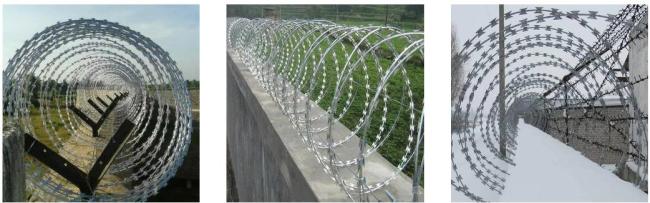

concertina razor wire


Specifications:

Reference number Thickness Wire Dia Barb length Barb width Barb spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5 28 15 45±1
BTO-30 0.5±0.05 2.5 30 18 45±1
CBT-60 0.5±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.5±0.05 2.5±0.1 65±2 21±1 100±2
Product Parameters
Specifications of Razor wire
The Coil Diameter No. of loops Length per coil Razor Wire Types Notes
450mm 33 7-8m BTO-10.12.18.22.28.30
CBT-60.65
single coil
500mm 56 12-13m BTO-10.12.18.22.28.30
CBT-60.65
single coil
700mm 56 13-14m BTO-10.12.18.22.28.30
CBT-60.65
single coil
960mm 56 14-15m BTO-10.12.18.22.28.30
CBT-60.65
single coil
450mm 56 8-9m(3 clips) BTO-10.12.18.22.28.30
CBT-60.65
cross type
500mm 56 9-10m (3clips) BTO-10.12.18.22.28.30
CBT-60.65
cross type
600mm 56 10-11M (3 clips) BTO-10.12.18.22.28.30
CBT-60.65
cross type
600mm 56 8-10M (5clips) BTO-10.12.18.22.28.30
CBT-60.65
cross type
700mm 56 8-10M (5 clips) BTO-10.12.18.22.28.30
CBT-60.65
cross type
800mm 56 11-13M (5 clips) BTO-10.12.18.22.28.30
CBT-60.65
cross type
900mm 56 12-14M (5 clips) BTO-10.12.18.22.28.30
CBT-60.65
cross type
960mm 56 13-15M (5 clips) BTO-10.12.18.22.28.30
CBT-60.65
cross type



concertina razor wire

product advantages


1. It is almost impossible to climb.

2. High-strength steel core very difficult to cut off.

3. Powerful security fence barriers neat appearance.

4. No secondary use, so he will not be stolen.

5. Extremely simple to install, needs three to four to install molding.
