Stainless Steel 14 Gauge Crimped Wire Mesh As Quarry Screen Infill Panel Filter Element
Stainless Steel Crimped Wire Mesh As Quarry Screen , Infill Panel , Filter Element
DESCRIPTION

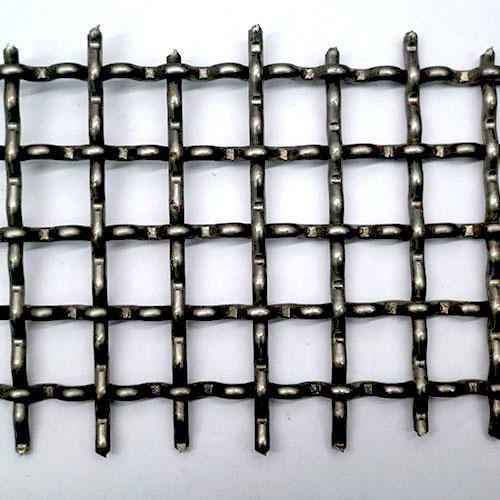

Pre-crimped wire mesh is made of wire diameters ranging from 1.5mm to 6 mm. It can be used for windows, partitions, roasting of meat and flour sieving or mine screens.
In the pre-crimping process, the wire is first formed (crimped) in precision machines using rotary dies that precisely define the spacing of the wires. This insures that the wires are locked firmly together at the intersections. The pre-crimped wires are then assembled in custom designed screen assembly machines (looms).
When the open area is important, extra crimps between the intersections provide a more rigid weave and provide locking and tightness for light wires in relation to the large openings.
Due to the crimping process, the mesh have very accurate and consistent openings and are woven after crimping. It is typically preferred for vibrating screens and many other applications where sizing is critical.
Specification
Crimped Wire Mesh is made by low carbon steel wire carbon iron wire, galvanized steel wire or stainless steel wire.
Weaving Patterns: Weaving after crimping.
General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
| Crimped Wire Mesh | ||||
| Wire Gauge SWG |
Wire Diameter (mm) |
Mesh/Inch | Aperture (mm) |
Weight (kg/m2) |
| 14 | 2.0 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 2.5 |
| 14 | 2.0 | 3.6 | 1.5 | 1.9 |
Crimped Wire Mesh Features:
- Great strength and solid structure;
- Good rust and corrosion resistance;
- High loading capacity;
- Long service life;
- Beautiful surface.
Crimped Wire Mesh Applications:
- Serves as vibrating screen, filter element, infill panel, barbecue grill, baking rack;
- Used in mining, chemical, petroleum, construction industries;
- Designed into decoration, artwork.
Crimped Wire Mesh Packing:
- Crimped mesh Sheets on pallets or in wooden cases;
- Crimped mesh rolls wrapped with waterproof paper and plastic film.
