Durable Construction Welded Wire Mesh Panel 1 2 Inch Zinc Coated
Durable Construction Welded Wire Mesh Panel Zinc Coated Best Choice
Welded wire mesh panels are widely used in various applications, such as fencing for homes, gardens, sports fields, highways, and bridges, due to their high strength, corrosion resistance, and attractive appearance.
Welded wire mesh panel material:
Low carbon steel wire
Electro-galvanzied steel wire
Hot dipped galvanized steel wire
Stainless steel wire
There are 2 ways of galvanized treatment:
GBW -galvanized before welding
GAW -galvanized after welding
The cost of these 2 different surfce treaments varies largely. normaly GAW is much more expensive than GBW.
| Opening | Wire Diameter | ||
|---|---|---|---|
| inch | mm | BWG | mm |
| 1" × 1" | 25 × 25 | 14# – 11# | 2.0–3 |
| 2" × 1" | 50 × 25 | 14# – 8# | 2.0–4 |
| 2" × 2" | 50 × 50 | 14# – 8# | 2.0–4 |
| 3" × 2" | 75 × 50 | 14# – 6# | 2.0–5 |
| 3" × 3" | 75 × 75 | 14# – 6# | 2.0–5 |
| 4" × 2" | 100 × 50 | 14# – 4# | 2.0–6 |
| 4" × 4" | 100 × 100 | 14# – 4# | 2.0–6 |
| 5" × 5" | 125 × 125 | 14# – 4# | 2.0–6 |
| 6" × 6" | 150 × 150 | 14# – 4# | 2.0–6 |
| Material:electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated and stainless steel. | |||
| Note:Special size and specifications can be made according to customers requires. | |||
- Excellent durability - resistant to rust and corrosion
- Smooth surface
- Different gauges and mesh sizes are available.
- Easy to install and store due to weight
- Exceptional tenacity and flexibility
Features:
- Excellent corrosion and rust resistance performance and durable life.
- Wide ranges of application in agriculture, construction and security protection.
- Solid weld point for strong and durable structures.
- Flat and smooth surface has excellent shape retention performance.
- Wide ranges of mesh openings, wire diameters and heights selections.
Function:

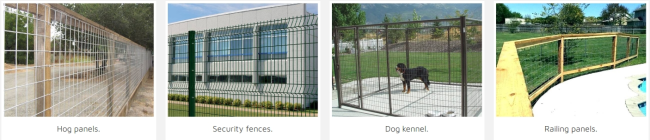

- Welded wire mesh panel can be used in the agriculture as the hog panels and garden fencing.
- It is also be made into dog kennels for large or small dogs and animals.
- Welded wire mesh panels can be made into various welded mesh fences for commercial and industrial protections.
