High Tensile 65 45# Manganese Steel Crimp Woven Stone Quarry Vibrating Screen Sand Screen Mesh For Crusher Filter
High Tensile 65 45# Manganese Steel Crimp Woven Stone Quarry Vibrating Screen Sand Screen Mesh For Crusher Filter

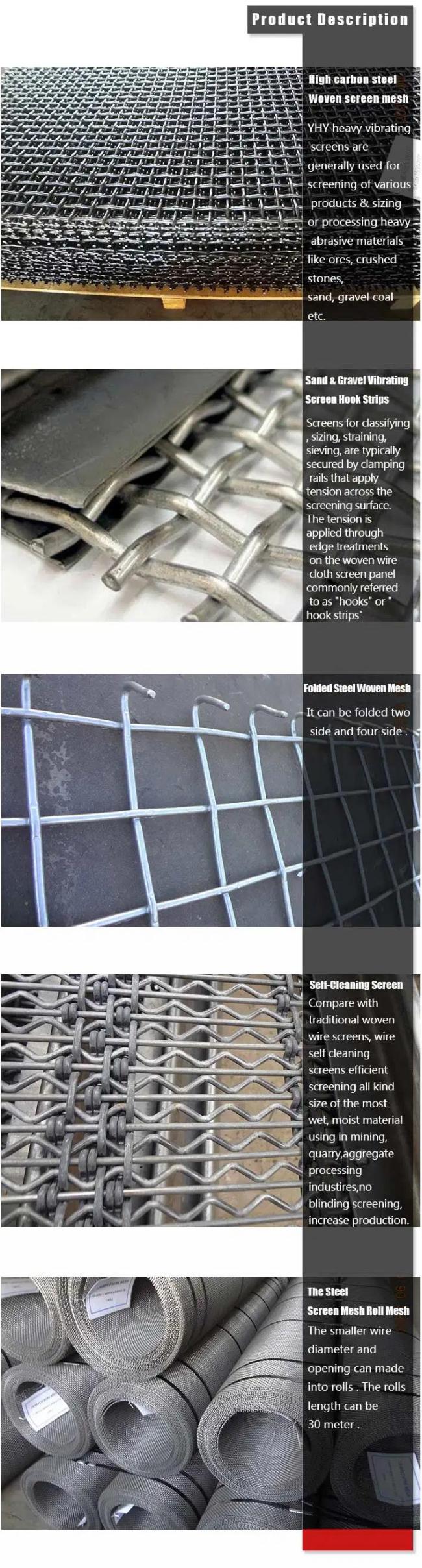

The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped, flat mesh, etc.).
Crusher screen wire mesh is also called vibrating screen woven mesh, crusher woven wire mesh, quarry vibrating screen mesh, quarry screen mesh etc. it is wearable resistance, high frequency and longer life. Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel.
Steel Screen Mesh for Crusher Machine, Stone Crusher Screen Mesh
Material: black wire, spring steel wire, manganese steel wire and stainless steel wire.
Surface treatment: galvanized or painted.
Wire diameter: 0.71mm - 12.5mm.
Mesh size: 1mm - 100mm.
Hole type: square, rectangular and long slot. Inherit'>4. Feature: Longer life, High adhesion, excellent efficiency of mechanical splice.
| Material | high tensile manganese steel, galvanized steel and stainless steel wire |
| Wire Diameter | 1.5-16mm |
| Opening Size | 5mm-100mm |
| Mesh Type | Square, rectangular slot, long slot |
| Surface Treatment | color painted |
| Edge Preparation | Plain, bent, reinforced shroud, welded shroud, bolt shroud |
| Weaving Type | Double crimped, intermediate crimped, flat top crimped, lock crimped |
|
No.
|
Steel Grade
|
Chemical Composition
|
||
|
C
|
Si
|
Mn
|
||
|
1
|
45
|
0.42-0.50
|
0.17-0.37
|
0.50-0.80
|
|
2
|
50
|
0.47-0.55
|
||
|
3
|
55
|
0.52-0.60
|
||
|
4
|
60
|
0.57-0.65
|
||
|
5
|
65
|
0.62-0.70
|
||
|
6
|
70
|
0.67-0.75
|
||
|
7
|
65Mn
|
0.62-0.70
|
0.90-1.20
|
|
|
8
|
72A
|
0.70-0.75
|
0.15-0.35
|
0.30-0.60
|
|
NO.
|
Wire diameter (mm)
|
Aperture/ Hole size (mm)
|
Weight (kg/sqm)
|
|
1
|
12
|
75
|
-
|
|
2
|
10
|
38
|
-
|
|
3
|
9
|
32
|
25
|
|
4
|
8
|
22
|
-
|
|
5
|
7
|
25
|
19.5
|
|
6
|
6
|
10
|
-
|
|
7
|
4
|
10
|
14.5
|
|
8
|
2.5
|
6
|
9.3
|
|
9
|
2.2
|
4
|
10
|
