Hot Dipped Galvanized 40-60G/M2 Concertina Razor Wire Bto22 Welded For Prison Border
Hot Dipped Galvanized 40-60G/M2 Concertina Razor Wire Bto22 Welded For Prison Border

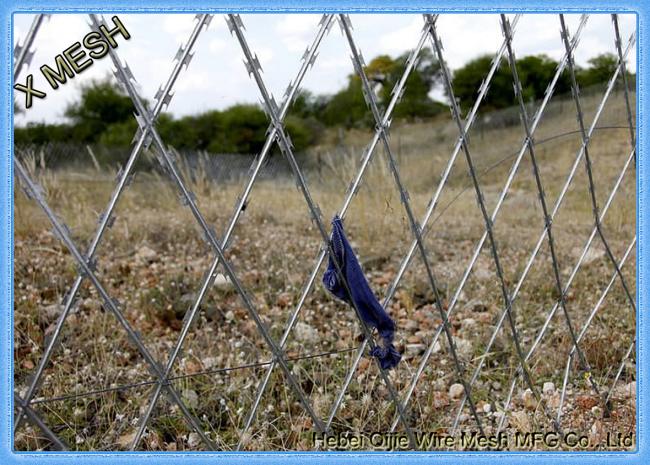

Welded razor wire mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together,packaging into a roll form for transport. Welded Razor Wire Mesh is used in operations to pave the field after the installation of a blade barrier. It is almost impossible to climb or cut off with the standard tools, so it can protect you and your property, and ensures the safety of the protective barriers.
| Reference number | Barb thickness | Wire diameter | Barb length | Barb width | Barb spacing |
| BTO-22 | 0.5mm | 2.5mm | 22mm | 15mm | 35mm |
| BTO-30 | 0.5mm | 2.5mm | 30mm | 21mm | 54mm |
| The above two models are common on the market | |||||
Characteristic:
with beautiful and sharp blades and strong core wire,razor wire has the features of good deterrent effects,nice appearance,easy installation,economical and other properties.
| Model | Plate Thickness(mm) | Core Wire Diameter(mm) | Barb Length(mm) | Barb Width(mm) | Barb Spacing(mm) |
| BTO-10 | 0.5±0.05 | 2.5 | 10 | 13 | 26 |
| BTO-12 | 0.5±0.05 | 2.5 | 12 | 15 | 26 |
| BTO-18 | 0.5±0.05 | 2.5 | 18 | 15 | 38 |
| BTO-22 | 0.5±0.05 | 2.5 | 22 | 15 | 38 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 53 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 21 | 54 |
| BTO-60 | 0.6±0.05 | 2.5 | 60 | 32 | 102 |
| BTO-65 | 0.3±0.05 | 2.5 | 65 | 22 | 102 |
| Coil OD(mm) | Numbers of Loops | Numbers of Clips | The Utmost Length (m) | Barb Type | Notes |
| 450 | 33 | - | 7-8 m | CBT60 CBT65 | Single Coil |
| 500 | 56 | - | 12-13 m | CBT60 CBT65 | Single Coil |
| 700 | 56 | - | 13-14 m | CBT60 CBT65 | Single Coil |
| 960 | 56 | - | 14-15 m | CBT60 CBT65 | Single Coil |
| 450 | 56 | 3 clips | 8-9 m | BTO12 18 22 28 30 | Cross Type |
| 500 | 56 | 3 clips | 9-10 m | BTO12 18 22 28 30 | Cross Type |
| 600 | 56 | 3 clips | 10-11 m | BTO12 18 22 28 30 | Cross Type |
| 600 | 56 | 5 clips | 8-10 m | BTO12 18 22 28 30 | Cross Type |
| 700 | 56 | 5 clips | 10-12 m | BTO12 18 22 28 30 | Cross Type |
| 800 | 56 | 5 clips | 11-13 m | BTO12 18 22 28 30 | Cross Type |
| 900 | 56 | 5 clips | 12-14 m | BTO12 18 22 28 30 | Cross Type |
| 960 | 56 | 5 clips | 13-15 m | BTO12 18 22 28 30 | Cross Type |
| 980 | 56 | 5 clips | 14-16 m | BTO12 18 22 28 30 | Cross Type |
