Hot Dipped Galvanized Concertina Barbed Wire Cbt65 On Top Fence
Concertina Wire Low Price Cbt65 Razor Barbed Wire on Top Fence

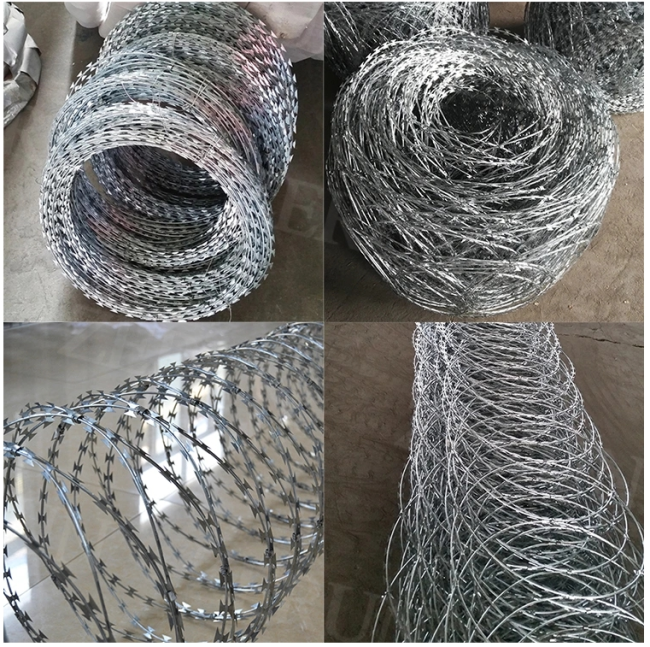

Razor Barbed Wire is also named concertina coils,concertina wires. It is a kind of modern security fencing
materials with better protection and fencing strength.
It made by hot-dipped galvanized blade or stainless steel blade, high tensile strength core wire( steel wire with
1200mpa tensile strength or stainless steel wire).
Types of razor wires:BTO10 BTO11 BTO12 BTO22 BTO28 BTO30 CBT65 CBT60
Specification of razor blade wire:
1,Normal hot dipped galvanized razor wire(40-60g)
2,Heavily zinc coated razor wire (70-270g)
3,Stainless steel 304/316 grades razor wire
Clips of concertina wire: 3clips, 5clips or without clips
Coil Diameter of concertina wire: 300mm 450mm 500mm 600mm 700mm 800mm 950mm 1000mm
Package of razor wires:
1,waterproof paper inside,woven bag outside,then 50rolls/bundle or as required
2,nude package,then packing by wooden pallet or in bulk
SPCIFICATIONS
| Reference Number | Thickness | Wire Dia. | Blade Length | Blade Width | Blade Spacing |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-25 | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
|
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) |
|||||
| Concertina Razor Wire (Standard Use) | ||||
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
