BTO-12 Concertina Razor Wire Hot Dipped Galvanized PVC Coated

Price Negotiable
Price: Negotiable
MOQ: 10tons
Delivery Time: 15-18days
Brand: qijie
Product Description

Hot Dipped Galvanized PVC Coated Barbed Wire Razor Barb Wire

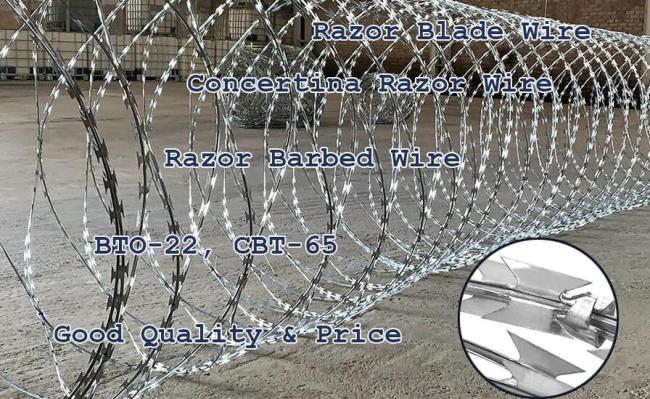

Razor wire also called concertina razor wire. It is the normal type of razor wire you see around prisons and high security establishments.
Razor wire is widely used in wild fences, chain link fences and welded fences, and provides general safety. For example, wire mesh is usually installed on the top of a cattle fence to restrain the cattle. The razor wire is very powerful and can threaten deliberate intrusion.

razor wire

Specification:

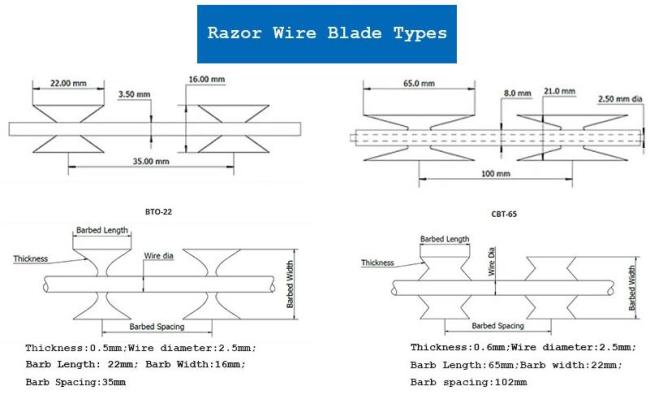

Specification of Razor Barbed Wire
Model Thickness Wire Dia Barb Length Barb Width Barb Spacing
BTO-10 0.5+/-0.05mm 2.5+/-0.1mm 10+/-1mm 13+/-1mm 26+/-1mm
BTO-12 0.5+/-0.05mm 2.5+/-0.1mm 12+/-1mm 15+/-1mm 26+/-1mm
BTO-18 0.5+/-0.05mm 2.5+/-0.1mm 18+/-1mm 15+/-1mm 38+/-1mm
BTO-22 0.5+/-0.05mm 2.5+/-0.1mm 22+/-1mm 15+/-1mm 38+/-1mm
BTO-28 0.5+/-0.05mm 2.5+/-0.1mm 28+/-1mm 15+/-1mm 53+/-1mm
BTO-30 0.5+/-0.05mm 2.5+/-0.1mm 30+/-1mm 21+/-1mm 54+/-1mm
BTO-60 0.6+/-0.05mm 2.5+/-0.1mm 60+/-2mm 32+/-1mm 102+/-1mm
BTO-65 0.3+/-0.05mm 2.5+/-0.1mm 65+/-2mm 21+/-1mm 102+/-1mm
Outside diameter No. of loops The utmost effective length Type Notes
450mm 33 7-8M CBT 60.65 Single coil
500mm 56 12-13M CBT 60.65 Single coil
700mm 56 13-14M CBT 60.65 Single coil
960mm 56 14-15M CBT 60.65 Single coil
450mm 56 8-9M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type

The Material of Razor Barbed Wire:
Galvanized Wire and Plate
Heavy Zinc Coated Wire and Plate
Stainless Steel Wire and Plate

razor wire



The application of Razor Barbed wire:
Razor wire is widely used in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers, government building or other security facilities. Abd used for division of railway, highway, agricultural fencing, etc.
Our razor wires are made of high-strength steel to ensure stability. And the hot-dipped galvanized surface makes it rust-proof and weather-proof to withstand various conditions, improving the protection of your fence.
