Manufacturers Direct Selling Decorative Perforated Metal Mesh Sheet For Crafts Punching
Manufacturers Direct Selling Decorative Sheets for Crafts Punching Perforated Metal Mesh
Perforated mesh refers to punching holes of different shapes in the same material to meet different needs. It can be used as environmentally friendly noise control barriers in transportation and municipal facilities such as highways, railways, and subways that pass through urban areas, and sound-absorbing panels for sound insulation and noise reduction in building walls, generator rooms, factory buildings, and other noise sources.
Material:Low carbon steel plate,Aluminum plate,Stainless steel plate,etc.
Hole shape: round, length, square, scale hole, hexagonal hole, plum blossom and so on.
Surface treatment: hot-dipped, electro galvanized, PVC-coated
Specification:
|
Quite inch mesh
longitude X latitude
|
Wire diameter
Longitude X latitude
mm
|
Aperture reference value
μm
|
Effective rate of cross section
%
|
Net weight per unit area
kg/m 2
|
Thickness of mesh
mm
|
| 7*40 | 0.9*0.71 | 347 | 14.3 | 6.65 | 2.32 |
| 7*44 | 0.71*0.63 | 319 | 14.2 | 5.55 | 1.94 |
| 8*45 | 0.8*0.6 | 310 | 15.5 | 5.7 | 2.00 |
| 14*76 | 0.45*0.355 | 173 | 14.3 | 3.33 | 1.16 |
| 16*100 | 0.4*0.28 | 160 | 17.7 | 2.7 | 0.96 |
| 20*110 | 0.355*0.25 | 126 | 15.3 | 2.47 | 0.855 |
| 22*120 | 0.315*0.224 | 115 | 15.5 | 2.20 | 0.763 |
| 24*110 | 0.355*0.25 | 97 | 11.3 | 2.60 | 0.855 |
| 28*150 | 0.28*0.18 | 92 | 15.9 | 1.87 | 0.64 |
| 35*170 | 0.224*0.16 | 69 | 12.8 | 1.62 | 0.544 |
| 40*200 | 0.18*0.135 | 63 | 15.4 | 1.24 | 0.43 |
| 50*300 | 0.16*0.09 | 55 | 20.0 | 0.98 | 0.34 |
| 60*500 | 0.14*0.055 | 51 | 34.1 | 0.70 | 0.252 |
| 80*430 | 0.125*0.063 | 32 | 16.6 | 0.77 | 0.251 |
| 100*120 | 0.063*0.023 | 23 | 37.6 | 0.27 | 0.109 |
| 118*750 | 0.063*0.036 | 23 | 21.5 | 0.38 | 0.135 |

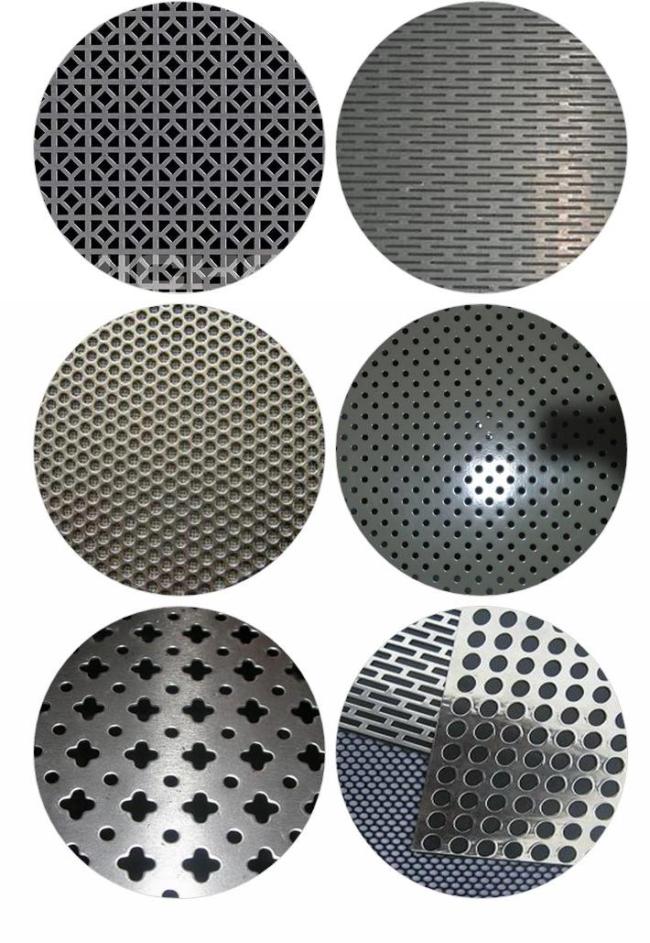

style of perforated metal mesh:
Our features
From prototype to mass production
Our production line both for making prototypes as will as mass production to meet a broad range of customer needs.
No bridge etching
Etching without making bridges on products is possible. Suitable for spring or complex pattern which can not have bridge.
Lined Material Etching
By using the no bridge etching technology, we could also etching the lined material for heater of heat or others products.
And the adhesive could be peeled off without heat is efficient for production.
Big size or roll material is also available. Please contact us for the details.
Available for Large Size
The max. size for our etching equipment is 1050*1750mm.
High Precision Mesh or Perforated Plate by Etching
Metal mesh products or perforated metal could be produced by etching and weaving technology of Nippon Filcon. Small quantity or large size is also available.
Short Lead time for Urgent Case
The short lead time (from 2 days ) for prototype is possible. Please contact us for the details (material, thickness, pattern, etc..)
Advantages
1. Beautiful appearance
2. Good air permeability
3. Saving in material
4. Environmental protection and energy saving
5. Easy to process
6. 100% in house inspection before delivery
Packaging
--- Carton with foam or according your demand
--- Packaging options
1. left in sheet
2. detached
3. bulk packed
4. box in foam layer
5. pe , boxes
