High Carbon Steel Crimped Woven Wire Mesh / Vibrating Screen Mesh /Stone Crusher Screen Mesh

Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles, and it is ideal for architectural applications.

1. Angle: 30 degrees, 45 degrees

2. Crimped wire mesh Shape: v-shaped, u-shaped

3. Hook crimped woven wire mesh Hook type: positive check, positive check

4 . Woven wire mesh Material: Stainless steel wire,45Mn steel,65Mn steel,high carbon steel, carbon steel, nickel steel and nonferrous wire.

5 . Hook crimped woven wire mesh Weaving type: Plain, intermediate, crimped

6 .Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave.

7 . Hook woven wire mesh Application: Screening in mine, petroleum, chemical, building and food industry. Used in machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway, etc. Also used in screening and grading of solid materials and filtering of liquid and quarry, etc.

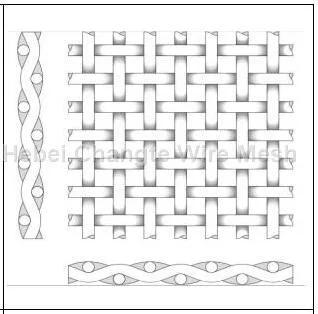

Double Crimp Woven Wire Used for medium to heavy wire in relation to screen opening size.

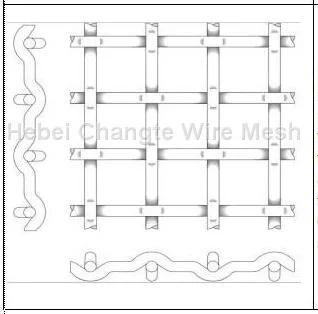

	Lock pre-crimp mesh Unlike plain crimped mesh, lock crimped mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.
Flat Top Woven Wire Flat top is similar to the lock crimp, but all of its crimping is offset to one side of the material. This creates a smooth top surface-with no high points-as all wires are woven on a single plane. Its bottom side, however, has crimp bumps approximately twice the height of lock crimp bumps. Flat top was originally created to allow for the smooth flow of materials over the surface and provide a flat face for use as backer screens. Flat top is ideal for aggregate sizing and sorting, agriculture, filtration, and heat-treating applications.

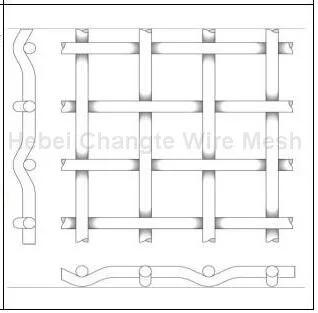

	Intermdiate Crimp Woven Wire Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).

Applications

• Mining industry
• Coal factory
• Construction industry
• Food processing and meat industry

Used for

• Grid window
• Poultry protection
• Concrete reinforcement
• Building construction
