Mild Steel Plate 4X8 Sheet Expanded Metal Sheet Wholesale Price
Mild Steel Plate 4X8 Sheet Expanded Metal Sheet Wholesale Price
Expanded steel mesh is a metal screen, also known as expanded metal mesh, diamond mesh, iron mesh, expanded metal mesh, heavy steel mesh, foot mesh, aluminum mesh, stainless steel mesh, granary mesh, antenna mesh, filter mesh, and audio mesh wait.
Material: low carbon steel plate, stainless steel plate, aluminum plate, copper plate, nickel plate, magnesium plate, aluminum-magnesium alloy plate and other metal plates.
Surface treatment: PVC dipping (plastic spraying, plastic coating), hot-dip galvanizing, electro-galvanizing, anodizing (aluminum plate), anti-rust paint spraying, etc.
Classified by material: low carbon steel sheets, aluminum plates, stainless steel plates, aluminum-magnesium alloy plates, steel plates, and other plates.
1.Material:superior quality galvanzed,stainless,aluminium and brass sheet
2.Sheet thickness:0.1-10mm
3.Width:0.2-2.4m
4.Length:0.5-5m
5.Opening shapes:round,oval,hexagonal and diamond etc.
6. SWDxLWD: 2mmx4mm~100mmx200mm
7.Application:

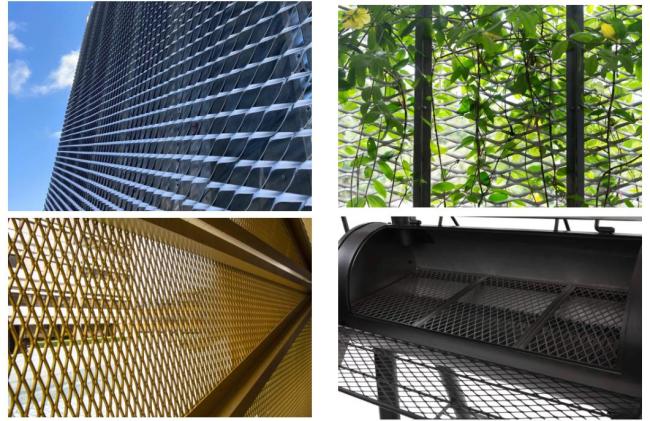

Expanded Metal is also named Expanded Mesh or Expanded Metal Mesh. Expanded Metal is widely in industrial, building, household railway, highway, construction, grain, mechanical maintenance, and musical facilities. road, railway, civil building, water conservancys building; The protecting, electrical equipment, window and aquatic products breed.
| Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness | Opening in Width mm |
Opening in Length mm |
Stem | Roll Width mm |
Roll Length mm |
Weight kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |

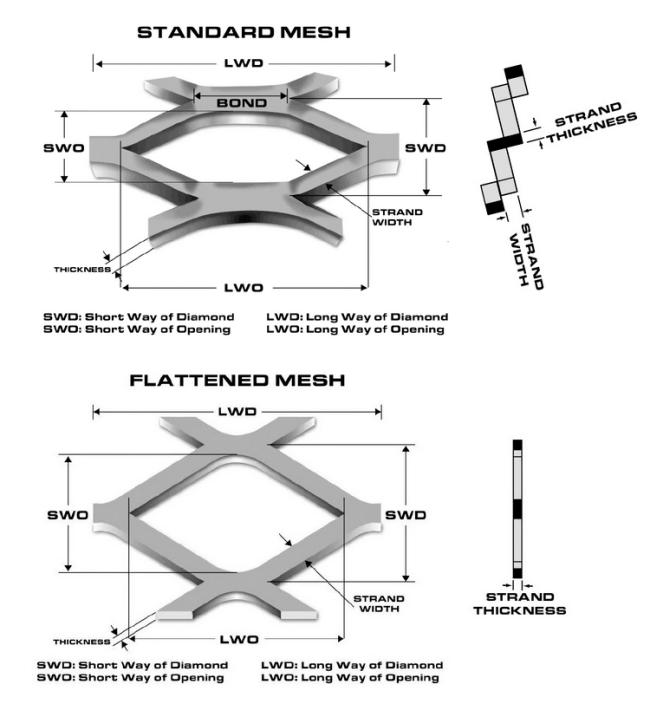

Short way of design (SWD)
The length of short diamond diagonal from one pitch point center to another pitch point center.
Long way of design (LWD)
The length of long diamond diagonal from one pitch point center to another pitch point center.
Short way of opening (SWO)
The length of short diamond diagonal.
Long way of opening (LWO)
The length of long diamond diagonal.
Bond
The solid intersection of two strands.
Strand thickness
Thickness of the metal that to be expanded.
Strand width
Metal plate length for making one strand.

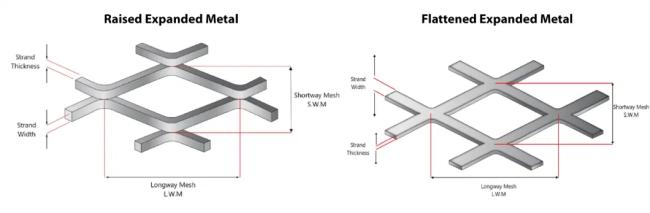

EXPANDED METAL TERMINOLOGY
S.W.M = Short way of Mesh:
This is the size measured across the short way of the diamond mesh from center to center of the joints.
L.W.M = Long way of Mesh:
This is the size measured across the long way of the diamond mesh from center to center of the joints.
Strand Width:
The size of the strand is measured at right angles to its thickness.
Strand Thickness:
The thickness of the sheet before the expanding process takes place.
| Product name | expanded sheet, stamping plates, or expanded screen |
| Material | Steel, Aluminium,Stainless steel, Bronze, Brass, Titanium, and so on. |
| Thickness | 0.3-12.0mm |
| Hole shape | round, square, diamond,rectangular perforations,octagonal cane,grecian,plum blossom etc,can be made as your design. |
| Mesh size | 1220*2440mm,1200*2400mm,1000*2000mm or customized |
| Surface treatment | 1.Powder coated |
| 2.Fluorocarbon spraying(PVDF) | |
| 3.Polishing | |
| Package | 1.Aerospace: nacelles, fuel filters, air filters |
| 2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors | |
| 3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption | |
| 4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills | |
| 5.Hammer mill: screens for sizing and separating | |
| 6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection | |
| 7.Pollution control: filters, separators | |
| 8.Mining: screens | |
| 9.Security: screens, walls, doors, ceilings, guards | |
| 10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates | |
| Package | 1.On pallet with waterproof cloth |
| 2.In wooden case with waterproof paper | |
| 3.In carton box | |
| 4.In roll with woven bag | |
| 5.In bulk or In bundle |

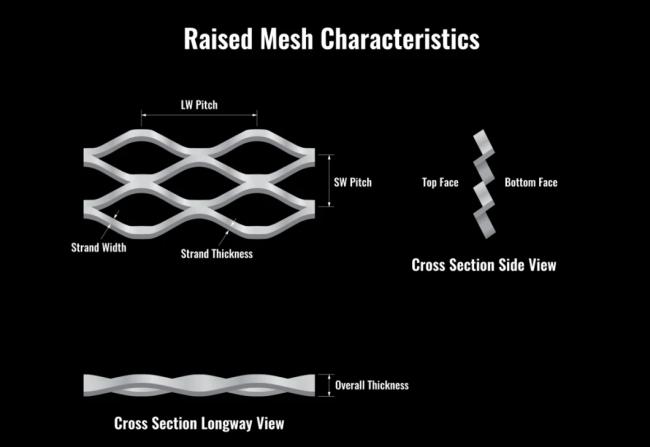

EXPANDED METAL CHARACTERISTICS
There are two types of expanded metal.
Raised mesh is unchanged from the expanding process where the individual strands are set at an angle to the plane of the sheet which results in a superior strength-to-weight ratio, enhanced sheet rigidity, good anti-slip properties, and an increase in overall thickness of the original raw material sheet due to the angled strands.
Raised mesh is measured from the center of one mesh to the center of the adjacent mesh, this is referred to as the LW and SW Pitch as shown below.
