Stainless Steel / Aluminum / Galvanized / Black Wire Netting Decorative Expanded Metal Mesh Panel Sheet For Protection
Stainless Steel / Aluminum / Galvanized / Black Wire Netting Decorative Expanded Metal Mesh Panel Sheet for Protection
Expanded metal mesh is also called pulled plate wire mesh. A rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. It is stronger, lighter in weight and more rigid than the original base metal.
Expanded metal mesh material are carbon steel plate, stainless steel, galvanized steel, aluminum, aluminum foil, lead, nickel plate, titanium, aluminum-magnesium alloy panels. Conventional mesh is formed in a diamond pattern. It has other pattern of hexagonal, round, triangle, scale-like opening.
Expanded metal mesh types includes raised expanded steel mesh (also called standard or regular expanded metal) and flat expanded metal mesh.
Raised expanded metal mesh has diamond openings with slightly raised surface. Flattened expanded metal mesh is manufactured by passing the standard expanded sheet through a cold roll reducing mill, forming diamond openings with flat surface.

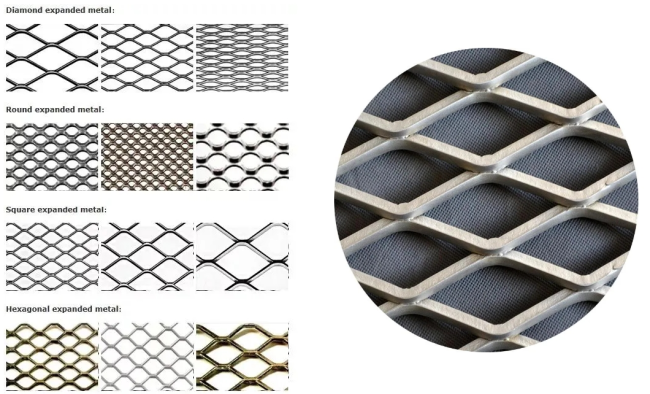

The form of the meshes is normally rhombic but more shapes are available, such as hexagonal, oblong and rounded. The size of the meshes varies from very small meshes 6 x 3 mm suitable for filters, to very large meshes 200 x 75 mm often used for architectural applications.
The materials most often utilised for expanded metal are mild steel, aluminium and stainless steel, but we also offer in other materials (brass, copper, titanium, zinc, etc).
Expanded metal specification:
Lwm: 3.0mm-100mm
Swm: 2.0mm-80mm
Strand Thickness: Up to 8.0mm
Strand Width: 0.3mm-8.0mm
Width: 0.5m-2.4m
Expanded metal panels siezes: 1/2,3/4,1'× 2',1' × 4',2' × 2',2' ×4',4' × 4',4' × 8',5' × 10',or made to size.
Surface treatment: hot-dip galvanizing, anti-rust paint, powder coated, PVC coated, etc.
Length: According to Your Requirement
| mesh thickness(mm) | distance short(mm) | distance long(mm) | strip(mm) | width (m) | length(m) | weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 |
28.26 |
