Stainless Steel 304D Anti-Corrosion Fine Woven Wire Mesh for Filtration

Material: stainless steel 304D, other stainless steel material such as 304, 316, etc., is also available
Wire diameter: 0.025mm-1.8mm

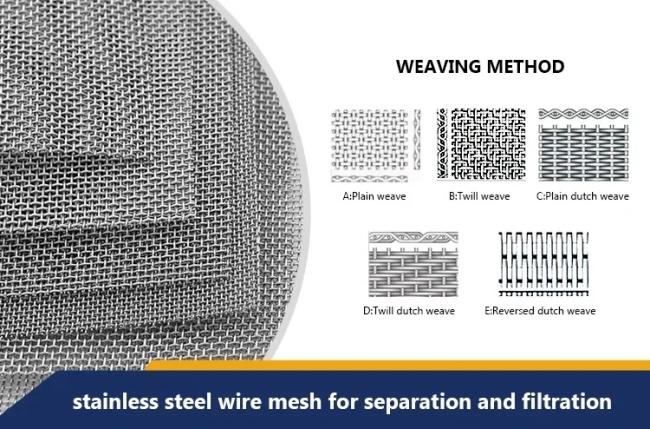

Weaving method: Plain weave, Plain dutch weave, Twill weave, Twill dutch weave, Reversed Dutch Weave
Roll width:0.914m,1.0m,1.22m,1.5m,etc, other width also available at request.
Roll length:30m or 50m, or any length customers request
Normal mesh size:
Plain weave: 0.5X0.5mesh to 635X635 mesh;
Twill weave:20x20mesh to 400x400mesh;
Plain dutch weave:10X64mesh to 80X700mesh;
Twill dutch weave:20x250mesh to 400X2800mesh;
Reversed dutch weave: 48x10mesh to 720x150mesh.

Characteristics of 304D

2. High strength and high wear resistance. The yield strength is 1.3 times or more than 304, and the elongation is not less than 45%.
3. Flame Retardant and safe

Application
Mainly used for separation and filtration, extensively used in petroleum, chemical industry, food industry, pharmaceutical industry, environmental protection, oil filtration, dryers, mine, airspace, paper-making, electronic, metallurgy, plastic filtration, etc.

Packing:
1. For low mesh count, we normally pack them in plywood pallet
2. For high mesh count, it's normally packed in plywood case
Please contact with us for the detailed packing method if you are interested.
