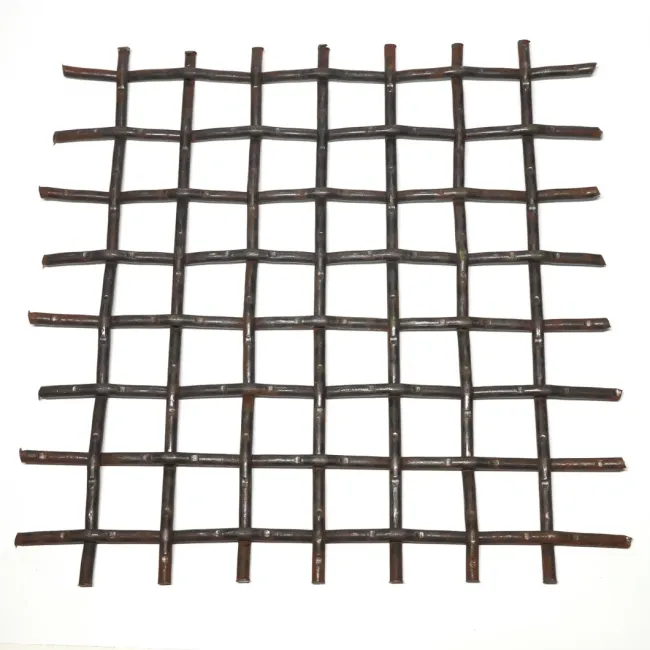

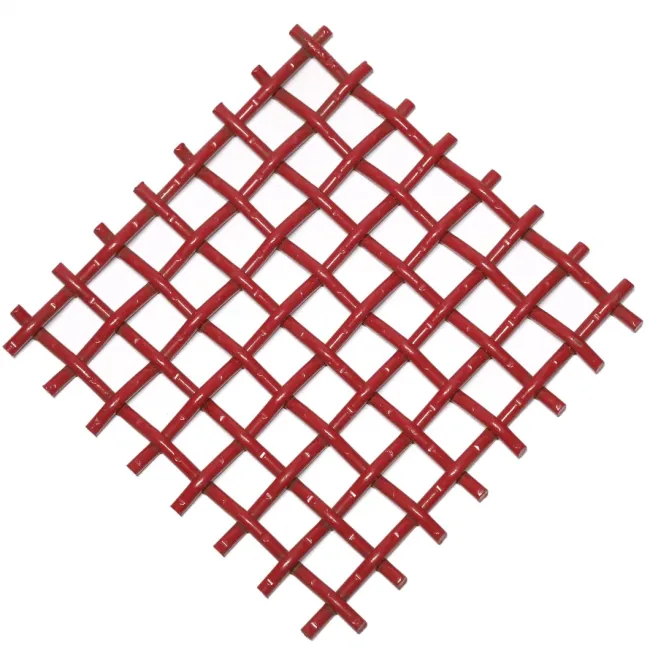

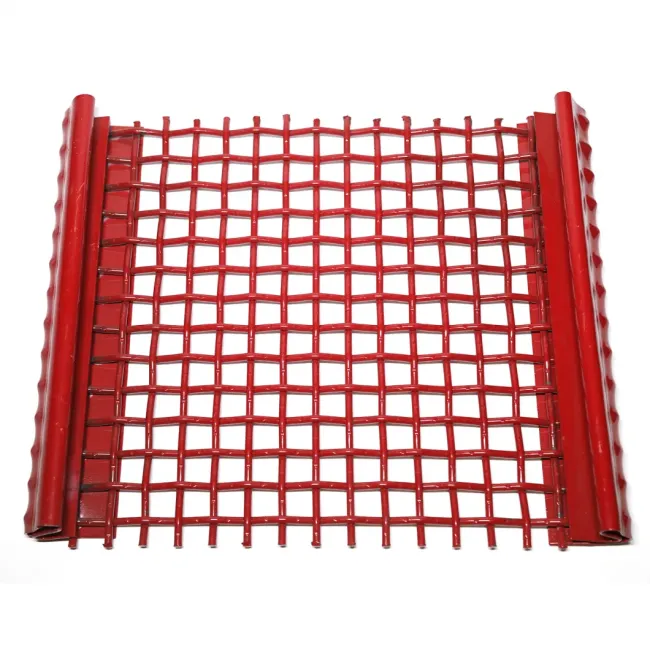

Crimped Woven Wire Mesh / Vibrating Screen Mesh High Carbon Steel
Low carbon steel wire for important applications
Smooth galvanized and two. Galvanized wire zinc layer is thin. The tensile strength of steel wire is%26ge; 390MP. The tensile strength of galvanized steel wire;%26ge; 365MPa.
High quality low carbon steel wire
Made of carbon structural steel, hard or soft state by state of delivery. Hard steel wire tensile strength in the range of 540 ~ 980MPa; the tensile strength of steel wire soft state between 440 ~ 785MPa, the specific requirements depends on the steel and wire diameter. Cross section of steel wire are round, square and six angle. The surface state of cold drawn wire and silver two. Bright steel wire should has the size precision and surface quality of the higher, the surface smooth and shiny, without the use of harmful surface flaws. A disk delivery wire diameter generally in 1mm or 1mrr-.
| wire gauge size | SWG(mm) | BWG(mm) | metric(mm) |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | - |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.89 | 0.90 |
| 21 | 0.81 | 0.813 | 0.80 |
| 22 | 0.71 | 0.711 | 0.70 |
