Product Description

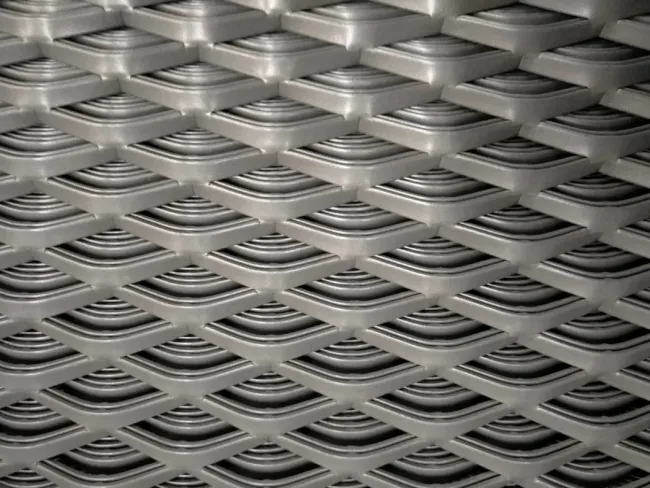

Expanded metal mesh is also called pulled plate wire mesh. Expanded metal sheet, A rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. It is stronger, lighter in weight and more rigid than the original base metal.

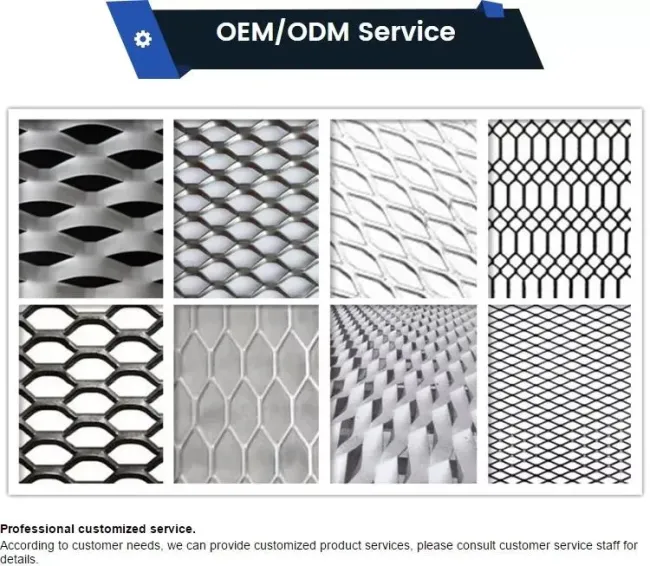

Expanded metal mesh material are carbon steel plate, stainless steel, galvanized steel, aluminum, aluminum foil, lead, nickel plate, titanium, aluminum-magnesium alloy panels. Conventional mesh is formed in a diamond pattern. It has other pattern of hexagonal, round, triangle, scale-like opening.
1.Material:superior quality galvanzed,stainless,aluminium and brass sheet
2.Sheet thickness:0.1-10mm
3.Width:0.2-2.4m
4.Length:0.5-5m
5.Opening shapes:round,oval,hexagonal and diamond etc.

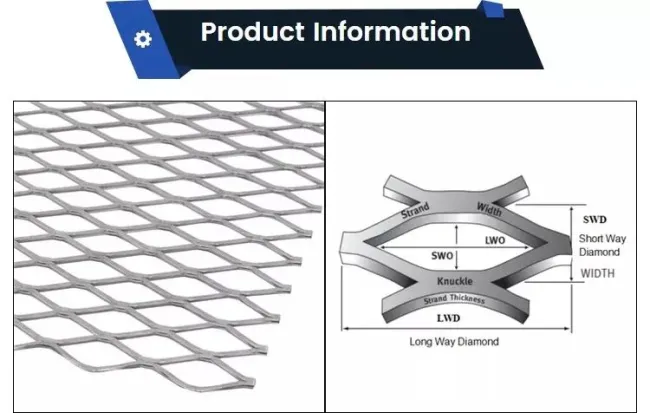

6. SWDxLWD: 2mmx4mm~100mmx200mm
7.Application:
Expanded Metal is also named Expanded Mesh or Expanded Metal Mesh. Expanded Metal mesh is widely in industrial industry, building, household railway, highway, construction industry, grain, mechanical maintenance, and musical facilities. road, railway, civil building, water conservancys building; The protecting, electrical equipment, for air filter, window and aquatic products breed.
Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press, and the sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauge and material as well as the size of the diamond.
Expanded metal mesh is a very economical and practical way to assure strength and safety, so it has a wide range of applications like EMI/RFI shielding, furniture, security walls, protection cover, floors and doors, and fencing, etc.
Amber wire mesh offers Standard Expanded Metal Mesh and Flattened Expanded Metal made from a wide range of materials including carbon steel sheet, stainless steel sheet, aluminum sheet, brass sheet and copper sheet, etc.
We also provide Expanded Metal Grating made from carbon steel plates for heavy-duty applications, which is more stronger and durable.
| Specification of Expanded Metal Mesh / Expanded metal sheet | ||||||
| Sheet Thickness (mm) |
Opening in Width (SWD) mm |
Opening in Length (LWD) mm |
Stem | Roll Width mm |
Roll Length mm |
Weight kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
Expanded metal mesh series, the holes are firm and have a long service life, and are widely used. They are mainly used for civil construction, cement production, mechanical equipment protection, handicraft manufacturing, and high-end speaker grilles. Highway guardrail, stadium fence, road green belt protection net. Heavy-duty expanded steel mesh can be used for fuel tanker pedal nets, working platforms, escalators, and walkways of heavy machinery and boilers, oil mines, locomotives, and 10,000-ton ships. It can also be used in construction industry, highways and bridges as steel bars.It is also used in national defense, industry, railways and highways, shipbuilding, coal, light industry and textiles, building materials, agriculture and sideline industries, aquaculture, gardens, minerals, petrochemicals, home appliances, and integrated ceilings, doors and windows, security passages, corridors Baffles, tables, chairs and benches, vents, various boxes and shelves for carrying goods, etc.
