Round Perforated Metal Mesh China Suppliers Perforated Metal Mesh

Product Introduction

In order to improve the valuation process and order fulfillment, below we present a specific scope of data that a complete order should contain:

- Number of items for each type of ordered products
- Raw material (sheet metal type) and its thickness
- Sheet dimensions (length and width)

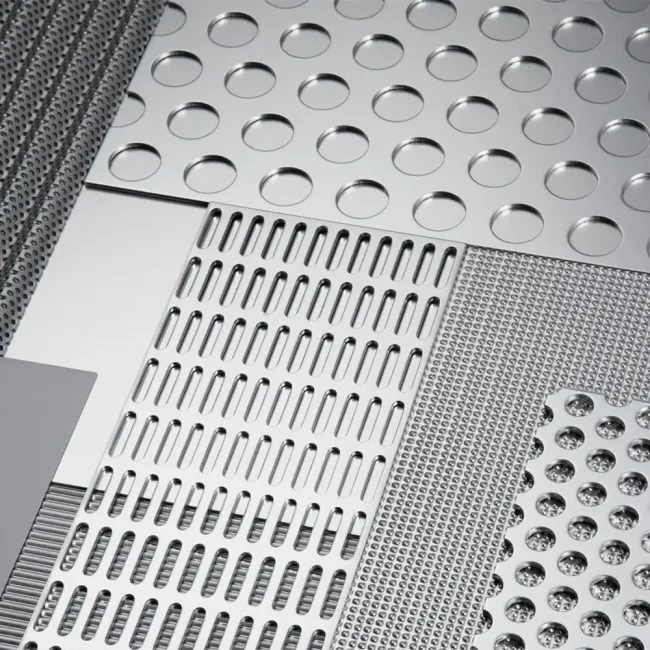

- The size and type of perforation, depending on the type of hole pattern - mesh, should be given (in millimeters):
* Mesh diameter for round holes
* Side length for square holes
* The length and width of the mesh for longitudinal holes

- The arrangement of meshes (stagger, straight, or otherwise) as well as the distance between the eyelets
- Margins (area without perforation), optionally mark their absence

It would also be helpful if you could specify your needs precisely about the purpose of specific products and specify the expected goods delivery time. Please also pay attention to some key parameters and dependencies that have a significant impact on the final price of the product.

- Type and thickness of the raw material - The cheapest material is steel sheet, however, using more durable materials, you can reduce the thickness to obtain similar strength. It should also be remembered that the thinner material perforates faster.

- The size of the holes - the diameter of the hole should not be smaller than the thickness of the material, and preferably if the mesh has a diameter about twice as large as the thickness of the sheet.
Perforated sheets made in accordance with the standards are cheaper and faster in perforation

- The clearance should not exceed 65% so as not to cause distortion

Perforated mesh is also widely used in

- Chemical machinery,
- Pharmaceutical equipment,
- Food and beverage machinery,
- Cigarette machinery, harvesters,
- Dry cleaning machine, ironing table,
- Silencer equipment,
- Refrigeration equipment (central air conditioning)
- Craft making,
- Papermaking,
- Hydraulic accessories,
- Filtration equipment and other industries.

01. Technical parameters

Material: ordinary steel, abrasion-resistant, heat-resistant, stainless, acid-resistant, aluminum, copper, brass, bronze, plastics, rubbers.

Format:
thickness up to 18 mm, width up to 2.000 mm, length up to 6,000 mm. For some assortments, it is possible to perforate the coils in the coils (coil width Format: up to 1600 mm).
For individual types of perforations, there may be restrictions on the thickness and width of the sheet and the need to leave unperforated technological margins.

Standard operations:
single straightening, cutting to size, and packing on pallets.

Additional operations:
bending, rolling, pressing, trapezoidal, framing, welding, welding, powder coating, wiping/cleaning with oil, etc.

02. The structure of the hole

The hole in the sheet metal consists of three parts, created during the production process:

The structure of the hole
1. Zone of dents
2. Cutting zone
3. Extraction area

03. Product description
Typical sheets are produced with unperforated transverse and longitudinal margins.

There is also the possibility of perforation by customer drawings and sheets with a full perforation field - after consultation. As standard, all sheets are straightened after perforation, in addition, we offer services of further processing of the product, which enables customers to purchase ready-made components.
