Galvanized Powder Coated Welded Wire Mesh Stainless Steel Wire Mesh Use as a Vegetable and Fruit Stand
Product Description
Advantages

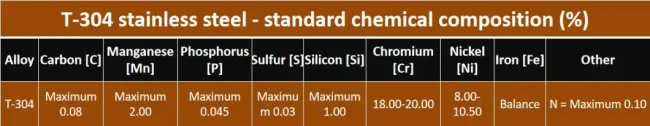

Raw Material Introduction
T-304 stainless steel is known for its superior heat resistance, corrosion resistance, manufacturing versatility, and cost-effectiveness. It can withstand high temperatures and has good corrosion resistance, making it ideal for a variety of applications. It is easy to form and precisely cut for an efficient manufacturing process. In the annealed condition, T-304 stainless steel is non-magnetic, increasing its usability. It is commonly used in the wire mesh industry and has two forms of weaving and welding, which can flexibly meet different requirements.
Product Usage
| Opening Size | Opening Size (mm) | Wire Diameter | Wire Diameter (mm) | Common Uses |
| 1/4 inch | 6.35 mm | 23 gauge | 0.64 mm | Chicken coops, rabbit cages, dog kennels, etc. |
| 1/2 inch | 12.7 mm | 19 gauge | 1.07 mm | Plastering, fencing, sieving, etc. |
| 3/4 inch | 19.05 mm | 16 gauge | 1.65 mm | Gardening, decoration, protection, etc. |
| 1 inch | 25.4 mm | 14 gauge | 2.11 mm | Fencing, partitioning, sieving, etc. |
| 2 inch | 50.8 mm | 12 gauge | 2.77 mm | Fencing, partitioning, sieving, etc. |
| 3 inch | 76.2 mm | 10 gauge | 3.40 mm | Fencing, partitioning, sieving, etc. |
| 4 inch | 101.6 mm | 8 gauge | 4.19 mm | Fencing, partitioning, sieving, etc. |
Specification
| The Specifications of Stainless Steel Welded Wire Mesh | |||
| Welded Wire Mesh | |||
| Opening | Wire Diameter | ||
| Inch | mm | BWG | mm |
| 1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm |
| 2"x1" | 50mmx25mm | 14#-8# | 2.0mm-4mm |
| 2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm |
| 3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm |
| 4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm |
| 4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm |
| 5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm |
| 6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
We present a selection of highly sought-after specifications for stainless steel welded wire mesh, catering to the specific requirements of our valued users. The opening sizes span from approximately 6" to 1", paired with diameter wires that are widely favored by our customers. These meticulously crafted specifications are available in sheet form.
Additionally, we offer specifications with opening sizes ranging from approximately 1" to 1/4", featuring diameter wires commonly embraced by the majority of our esteemed clientele. These specifications are thoughtfully manufactured in roll form, ensuring easy handling.Welded mesh is available in widths of 36", 48", and 60".
| Specification List Of Welded Wire Mesh | ||
| Opening | Wire Diameter(BWG) | |
| In inch | In metric unit (mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 24#-22# |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 22#-19# |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 23#-16# |
| 5/8" x 5/8" | 16mm x 16mm | 21#-18# |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 21#-16# |
| 1" x 1/2" | 25.4mm x 12.7mm | 21#-16# |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 19#-14# |
| 1" x 2" | 25.4mm x 50.8mm | 16#-14# |
| 2" x 2" | 50.8mm x 50.8mm | 16#-12# |
