Aluminum Stainless Steel Galvanized Serrated Welded Metal Steel Bar Grating
Aluminum Stainless Steel Galvanized Serrated Welded Metal Steel Bar Grating

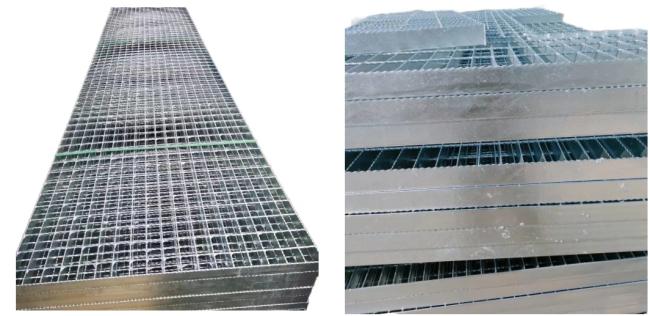

Steel Bar Grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. Universally used in most general industrial plants as well as commercial buildings, it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates.
- Materials: mild steel, stainless steel 304 or 316,Aluminum
- Surface treatment: galvanizing, bitumen dipped, painted, untreated.

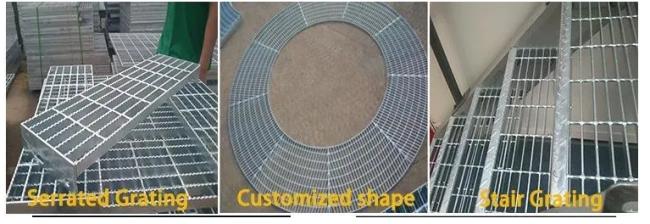

- Top surface: plain, flattened, raised.

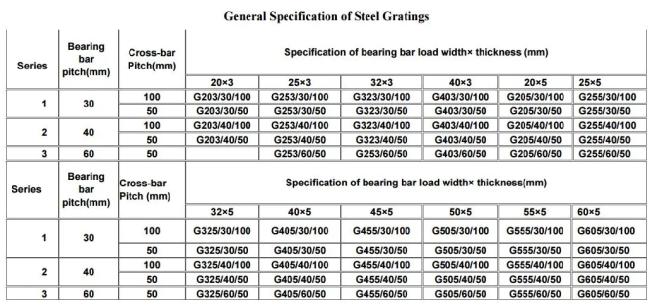

| S.No. | Grating Specification (Standard Panel) | |
| Load Bar Type | : Serrated | |
| Cross Bar Size | : 6mm twisted Square | |
| Size | : 6m x 0.905m | |
| Finish | : Hot Dip Galvanized | |
| Pitch Size (in mm) | : 41 x 100 | |
| 1 | Load Bar Size | : 25 x 3mm |
| 2 | Load Bar Size | : 25 x 4mm |
| 3 | Load Bar Size | : 30 x 4mm |
| 4 | Load Bar Size | : 38 x 4mm |
| 5 | Load Bar Size | : 50 x 4mm |
| 6 | Clamps for G I Grating | |
| Grating Manufactured are as per BS4592-1: 2006. Raw material confirms to BS EN 10025 S275JR or equivalent. Hot Dip Galvanizing confirms to EN ISO 1461/ASTM A123 |
||

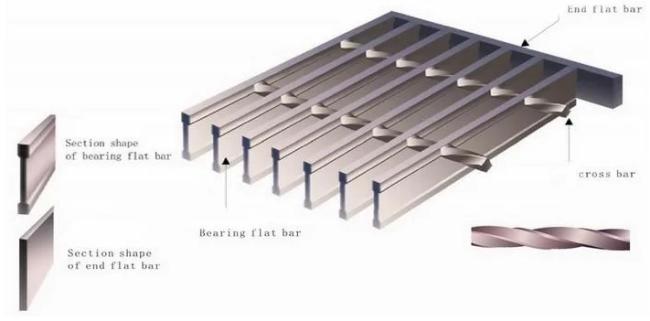

Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.
