Resistivity Measurements Groundwater Electrical Resistivity Tomography
Resistivity measurements groundwater electrical resistivity tomography
The main technical indexes and functions of the 2d electrical resistivity meter are ahead of similar instruments at home and abroad, and it can work better in various field complex environments.
The volume and weight of the Resistivity measurements groundwater electrical resistivity tomography are significantly reduced, and the main technical indexes and functions are ahead of the current domestic and foreign instruments of the same kind, which can work better under the complicated environment of the various fields and can work better under the complicated environment.
| Technical Specification | ||||
| Parameter | WGMD-3 Mainframe | Parameter | WGMD-3 Mainframe | |
| Conversion electrodes |
60 channels 120 channels |
Insulating impedance | 500MΩ | |
| Max. working voltage | 500V DC | Max. working current | 2A DC | |
| Power supply |
Internal 12V 9Ah rechargeable battery, Lasts for 30 hours(12V external power supply) |
Working temperature | -10℃~+50℃ | |
| Weight |
5.8kg(60 channels) 9.2kg(120 channels) |
Dimension |
340*295*152(60 channels) 470*357*176(120 channels) |
|
Application
1.Mineral prospecting 4.Groundwater exploration
2.Environmental investigation 5.Engineering projects
3.Archaeological studies 6.Civil engineering

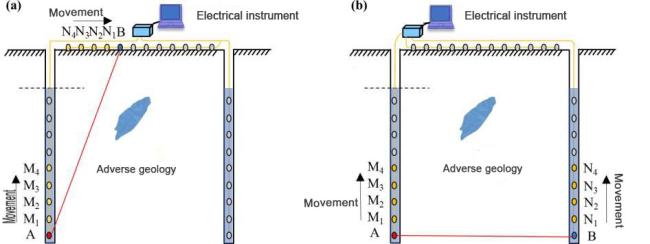

Well Resistivity Imaging Technique
Core rule: Place positive electrode A in the hole and negative electrode B on the surface or in other holes.
The measuring electrode is located near the power supply electrodes A and B and between A and B.
According to the performance of electrical instruments, multiple groups of M and N combinations can be designed to observe multi-channel data and improve acquisition efficiency.
