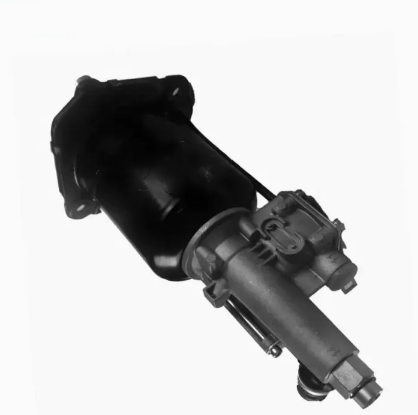

DISC Clutch Servo 97005144101527600 81307256104 0002540447 A0002540447 A0002540447Z001 A0002540447Z002 0002540
Original DISC Clutch Servo 97005144101527600 81307256104 0002540447 A0002540447 A0002540447Z001 A0002540447Z002 0002540447Z002
|
Brand
|
WABCO Original
|
|
Part type
|
Premium original quality
|
|
Technical Specification
|
OE specification
|
|
Comments
|
DC SM1
|
|
Distance between holes
|
110.0 mm
|
|
Electrical Connection
|
Bayonet DIN 72585 - A1
|
|
Length
|
290 mm
|
|
Max. operating pressure
|
10.0 bar
|
|
Oil inlet
|
Mineral oil
|
|
Port Thread 1-4
|
M14 x 1.5 ( B )
|
|
Port Thread 32
|
Ø 8.0 mm
|
|
Port thread 11
|
M16 x 1.5
|
|
Port thread 31
|
Flap Exhaust
|
|
Push-rod thread
|
Hole Ø12.1 mm
|
|
Stroke
|
85.0 mm
|
|
Temperature range
|
-20°C to +80°C
|
|
Voltage
|
12 V
|
|
mounting
|
2x Ø 11.0 mm
|
|
Calculated Volume (dm³)
|
8.2191
|
|
Size (mm x mm x mm)
|
405 x 139 x 146
|
|
Weight (kg)
|
3.145
|
|
Weight (lb)
|
6.9335
|
OE P/N:
MERCEDES-BENZ A0002540447Z001
MERCEDES-BENZ 0002540447
MERCEDES-BENZ A0002540447
MERCEDES-BENZ A0002540447Z002
MERCEDES-BENZ 0002540447Z002
MERCEDES-BENZ B954237513401
MERCEDES-BENZ 81307256104
MERITOR S9700514410
NEOPLAN 81307256104
PACCAR 1527600
PETERBILT S9700514410
SCANIA 1935609
Specifications
1. Original DISC parts
2. Good quality with the best price
3. Fast delivery once get your order,professional loaded container give you more profit.
4. Experienced seller let you rest assured.
5. Professional Perfomance Auto parts supplier
