Yellow Hydraulic Liner Hanger Equipment Liner Hanger Oil And Gas
liner hanger hydraulic-set

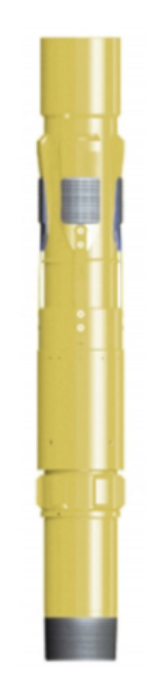

The hydraulic-set liner hanger is set hydraulically by applied pressure through the run-in string, and is designed to support medium to heavy liner loads. The hanger is widely used in deep and high deviated wells, where actuation of mechanical-setmay be not preferred. A setting ball is dropped and/or circulated to a ball seat in the landing collar or running string. Differential pressure acts on the hydraulic cylinder, moving slips up the cones to the set position.
Advantages and Features:
1- Hanger sets with applied hydraulic pressure
2- No pipe rotation required to set hanger
3- Large slip area capable hanging moderate to long liners
4- Multi-cone design provides ensure high-pressure or temperature integrity
5- Ever hydraulic settinbg mechanism is factory tested to ensure downhole reliability.
6- Available in sour gas well using special material
| 技 术 参 数 Technical data | 规 格 Size | |||||
| 340×245 | 245×178 (140) |
178×140 | 178×127(114) | 168×114 | 140×102(95,89) | |
| 额定悬挂载荷 rotaed suspension load t | 240 | 120 | 50 | 50 | 50 | 30 |
| 密封能力 sealing ability MPa | 25 | 25 | 30 | 25 | 25 | 25 |
| 悬挂剪钉剪切压力 Shear pressure of hanging shear nails MPa | 7--8 | 7---8 | 25 | 7---8 | 7---8 | 7---8 |
| 球座剪钉剪切压力 Shear pressure of ball socket shear nail MPa | 17--18 | 17--18 | 7--8 | 17---18 | 17---18 | 17---18 |
| 空芯胶塞剪钉剪切压力 Shear pressure of hollow rubber plug shear nails,MPa | 10--12 | 10--12 | 10--12 | 10--12 | 10---12 | 10--12 |
| 本体最大外径 max OD of body mm | 308 | 215 | 150 | 151 | 138 | 117 |
| 本体内径 ID of body mm | 220.5 | 155 | 121 | 108.6(97.2) | 97.2 | 97.2(82,75) |
| 回接筒长度 length of return tube mm | 500 | 500 | 300 | 300 | 140 | |
| 回接筒内径 ID of return tube mm |
255 | 187 | 130 | 124 | 102 | |
| 适用的套管壁厚 suit casing thickness mm |
8.33,9.65,10.92,12.19 13.06 |
8.94,10.03,11.05,11.99 | 9.19, 8.05, 6.91’ |
9.19,10.36,11.51 | 7.32,8.94,10.59,12.06 | 6.20,6.98,7.72, 9.17 |
