Main features:
1. This line is suitable for filling 10-100ml specification products of pesticides;
2. The filling speed of the entire line is 12000 bottles/hour, which can be customized according to needs;
3. The average filling accuracy is ± 1 gram, with accurate accuracy, reducing unnecessary waste;
4. The entire line is made of stainless steel material, with a beautiful and elegant appearance and high aesthetic value, making it a popular attraction for customers to visit.

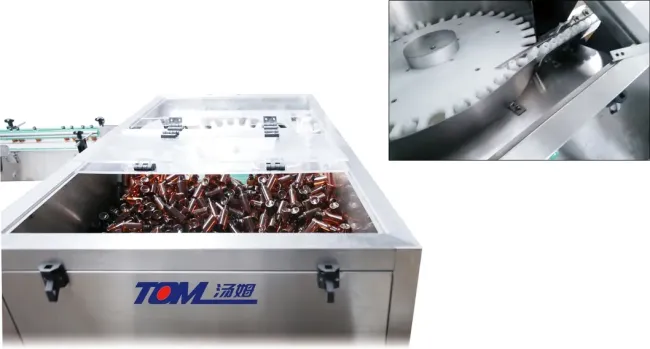

Intelligent workstation type bottle sorting machine (mechanical fallen bottle removal)

Applicable bottle type: diameter 20-60mm, height 50-150mm

Production capacity: ≤ 12000 bottles/hour

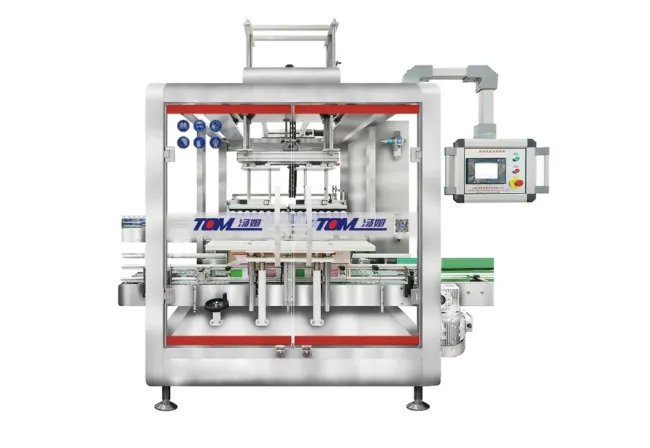

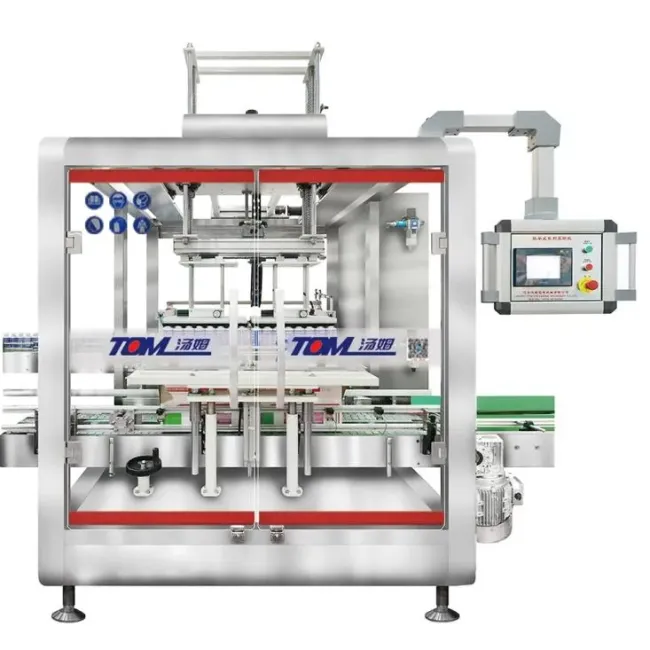

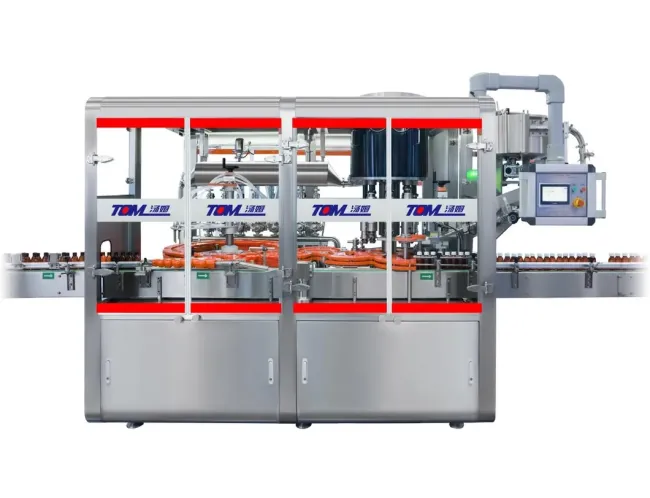

GXXC-16-12 Intelligent Rotary Tracking Filling and Capping Integrated Machine

Applicable bottle type: diameter 20-60mm, height 50-150mm

Production capacity: 10-100ml ≤ 12000 bottles/hour

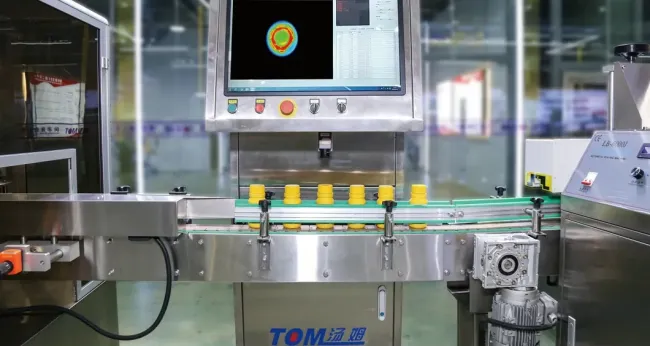

Bottle check weigher with rejection device, induction sealer, aluminum foil leakage detection machine, Inkjet printer, CCD detection, labeling machine, QR code scanning, label CCD detection, carton erector, automatic cardboard placing machine, case packer /Box packaging machine, automatic manual instruction quality certificate placing machine, Box checkweigher with rejection device, carton sealer, pallet dispenser and robot palletizer.

Intelligent workstation type bottle sorting machine (mechanical fallen bottle removal)

Applicable bottle type: diameter 20-60mm, height 50-150mm

Production capacity: ≤ 12000 bottles/hour

GXXC-16-12 Intelligent Rotary Tracking Filling and Capping Integrated Machine

Applicable bottle type: diameter 20-60mm, height 50-150mm

Production capacity: 10-100ml ≤ 12000 bottles/hour

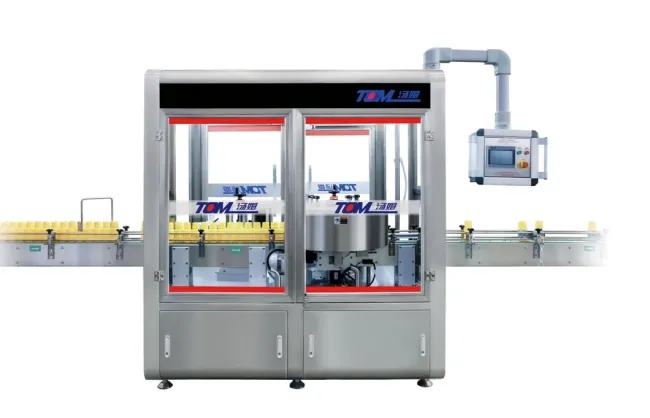

TBJ-10Y-A Intelligent Labeling Machine

Size range: diameter 20-60mm
Label height: (30-90) mm, length: (40-140) mm
Production capacity: ≤ 12000 bottles/hour
Labeling accuracy: ± 1mm

ZZP-2NA Automatic case packer

Applicable bottle type: diameter 20-60mm, height 50-150mm. Carton specifications: length 300-500mm, width 200-400mm,
Height 100-300mm
Capacity: 6-8 boxes/min

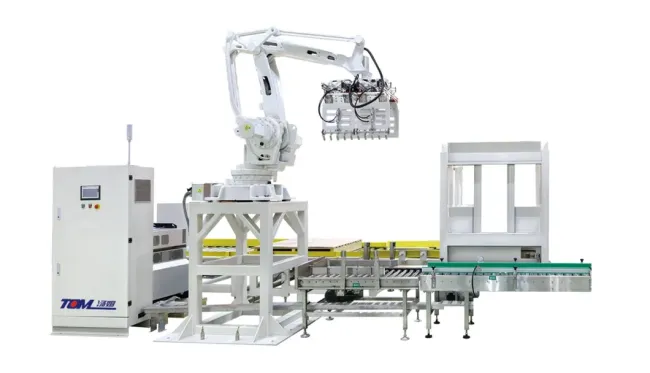

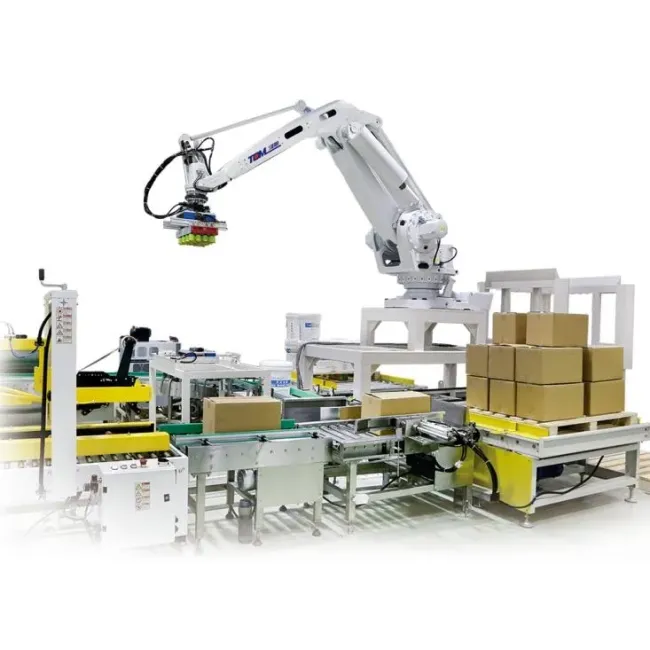

Robot palletizer
Maximum payload: 20Kg
Capacity: 4-8 boxes/min Working radius: 1600mm Vertical distance: 2100mm

Applicable bottle type:

Applicable bottle type: diameter 20-60mm, height 50-150mm

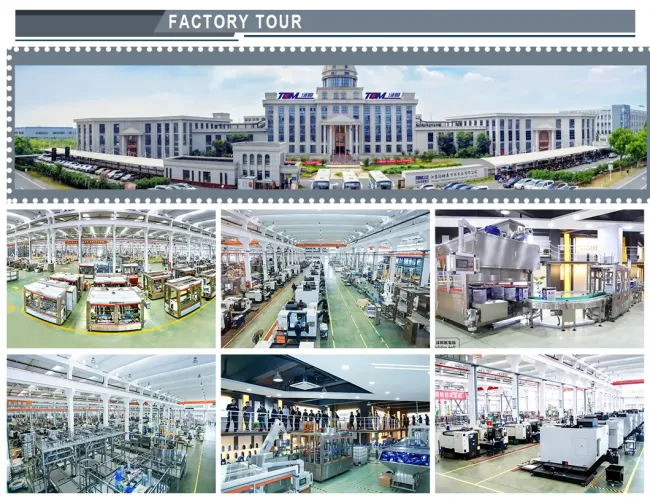

Jiangsu Tom Group is a full-service provider specializing in the research and development, design, and production of intelligent filling equipment. Since entering the intelligent filling industry in 1998, we have been dedicated to providing customers with exquisite engineering design, generations of advanced intelligent filling lines, warehousing and logistics software engineering, EPCM projects, and smart factories.

What we can do ?
· Agrochemicals packaging machines
· Household & personal care packaging machines
· Edible oil ,sauces & condiment packaging machines
· Petrochemcials packaging machine
· Coating ,paint packaging machines
· Intelligent packaging of chemical new materials
·Pesticide Formulations Engineering (EPC/EPCM )

As of now, Tom has served more than 4000 domestic customers and over 600 foreign customers. Its excellent performance and comprehensive after-sales service system have received unanimous praise from a large number of users. CNPC, Sinopec, CNOOC, Luxi Chemical, China Resources Group, Shanxi Coking Coal Group, CNOOC Grain and Oil, Wanhua Chemical, Tianci, Wengfu, Roche, Jingbo, Kingenta, Stanley, Shanghai Dalian, Jiangsu Longpan, Jiangsu Gaoke, Idemitsu, Castro, Syngenta, Bayer, BASF, Red Sun, Wynca Chemical, Rainbow Chemical, Yinghui, Noposin, Lier, Meibang, Jiangshan Chemical, Libai, Blue Moon, Unilever, Zhuangchen, Qiqiang, Cnnice, Longrich, Reckitt, Liangmianzhen, Likang Medical, Swiss Sika, Oriental Yuhong, 3 trees, Hempel, Jordan Coatings. Nippon Paint, PPG, Asia-paint, Keshun, Nestle, Lee Kum Kee, Yaomazi, Yihai Kerry, Longda, Luhua and other famous domestic and foreign enterprises have become strategic partners of Tom.
