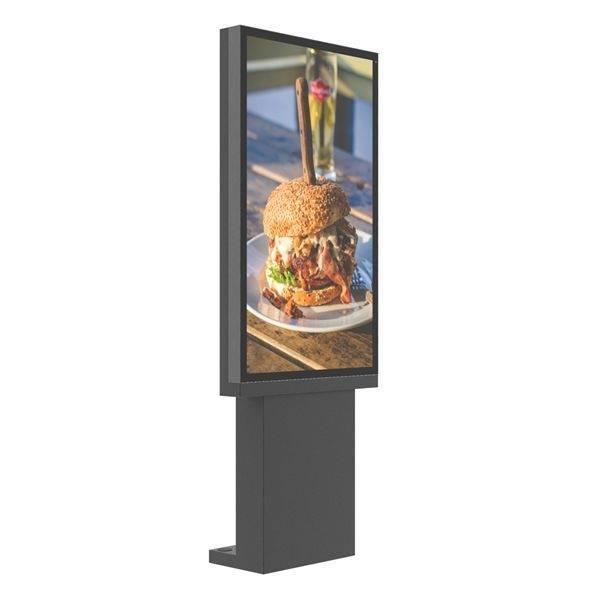

65 inch High Brightness Weatherproof Outdoor Drive Thru Menu Board with floorstanding base
65 inch High Brightness Weatherproof Outdoor Drive Thru Menu Board with floorstanding base
Description
1. High brightness customized 1000nits-3500nits, anto-dimming sensor
High brightness with 2500nits to be sunlight readable for outdoor use, the auto-dimming sensor
will change the brightness from the ambient light
2. Industrial grade 110℃ high temperature resistant panel
3. Full optical bonding in front of the screen
4. IP65 waterproof level
5. Intelligent temperature control, cooling fan
6. Can be spliced in single screen/two screen/triple screen, widely use for restaurant and food shop
Parameter
|
Model |
FSOD650-D25-T |
|
|
Panel
|
Size |
65" |
|
Panel Technology |
IPS |
|
|
Aspect Ratio |
16:9 |
|
|
Resolution |
3840*2160 |
|
|
Brightness |
2500nits |
|
|
Contrast Ratio |
1200:1 |
|
|
Viewing Angle |
178/178 |
|
|
Surface Treatment |
Haze 3% |
|
|
Lifetime |
50000Hrs |
|
|
Display Mode |
Horizontal/Vertical |
|
|
Physical Appearance |
Color |
Black |
|
Material |
Aluminum,Galvanized Iron Plate |
|
|
Surface Treatment |
Outdoor Powder |
|
|
Outline Dimension |
1500*875*95.5mm |
|
|
N.W. |
65KG |
|
|
Package Dimension |
1600*980*220mm |
|
|
G.W. |
75kg |
|
|
Mounting Hole |
VESA1400*400mm |
|
|
Operation Environment |
OP temperature |
-20--50℃ |
|
OP Humidity |
10%--85% |
|
|
IP level |
IP65 |
|
|
Protective Glass |
5mm Ultra-Clear Glass |
|
|
Mainboard |
SPEC |
8-core CPU A55 Android 12.0 2+16GB |
|
Interface |
HDMI*1 USB*2 RJ45*1 WIFI*1 |
|
|
Power |
Input |
180-264V, 50/60Hz |
|
Max Power Consumption |
480W |
|
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of
delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI,
USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+tem-
perature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will pass
through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
