Ultrasonic Thickness Measuring System For Gauging Plastic Pipe

1.Technical Parameter

2.Product Description

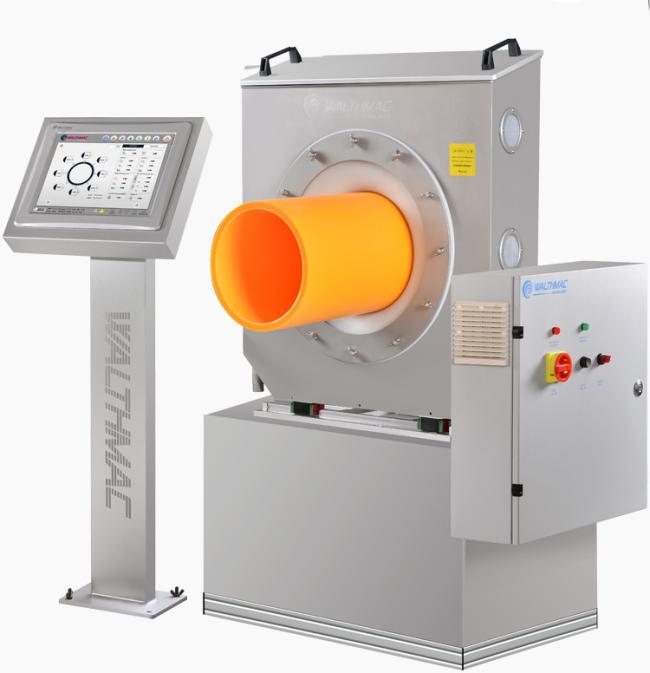

    WalthMac Ultrasonic Thickness Measuring System is used for gauging the wall thickness of plastic

    pipes with high precision.Usually we put it in the production line of gas pipe,water supply pipe,drainage

    pipe and other plastic pipes.Our system includes world-class ultrasound sensors and data processing

    software and hardware,which can realize online measurement of multiple geometric dimensions such as

    wall thickness.After analysising and managing, it can find product defects at the first time to reduce quality

    risks and lower cost as well as keep production simple and orderly.

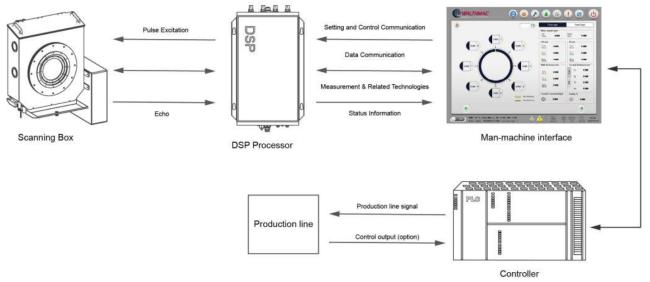

3.System Structure

       And there offers 4/8/16 pieces of ultrasonic probe in Scanning Box,you can choose any type to meet your

       requirements

4.The benefits

• The system can reduce the risk of unqualified plastic pipes in producting
• Shortenning the start-up time and reducing rejection ratio
• Offering full production data record,easy traceability in the future
• Auto-generating pipe quality statistics report.Significantly enhance quality control capability

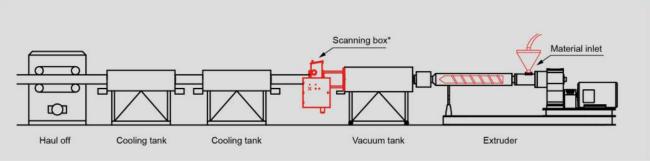

5.How to install Ultrasonic Thickness Mearsuring System

         Putting system after Vacuum tank(also can put it after the first Cooling tank machine),when pipe throught the

         box,data will be shown immediately on the Man-machine Interface

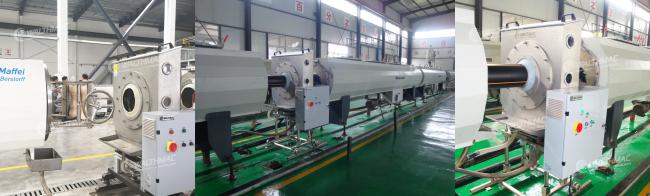

6.On-sight Application

7.About WALTHMAC

   Walthmac has setted in 2009.As a national Hi-tech enterprise,our company has quickly

   grown up to be the top-level in processing industry field,based on the strong creative

   inspiration and innovation spirit deeply-rooted in company's development gene.

   We concentrate on helping our client practicing the purpose of auto-manufacturing procedure

   therefore,to enhance quality standard,cost saving on materials and labour sources,sharply

   cut down the dependence on personal experiences of operator.

   Designed concept for 10 years service time,is our plan but serious promise to all Walthmac

   valuable clients.

   We have our own research and development technology to design products.

     Every year,we fly to many countries include Thailand,Vietnam etc to participate the exhibition

     in order to communicate with more strong companies.
