Zeolite Molecular Sieve 5A Molecular Sieve with good High adsorption
Price:
Negotiable
MOQ:
1 MT
Delivery Time:
14 days
Brand:
HENAN FULONG
Product Description
Product introduction:
5A molecular sieve, generally also known as calcium molecular sieve with an effective pore opening of 5 angstroms, can absorb any molecule smaller than this pore size. In addition to the functions of 3A and 4A molecular sieves, it can also adsorb C3-C4 normal alkanes, chloroethane, bromoethane, butanol, etc., and can also be used for the separation of normal isomers, pressure swing adsorption separation and the co-adsorption of water and carbon dioxide.
Technical Specifications of 5A molecular Sieve:
| Shape | Sphere | Pellets | ||
| Grade | 5A-B1 | 5A-B2 | 5A-P1 | 5A-P2 |
| Diameter (mm) | 1.6-2.8mm | 2.8-5.0mm | 1.6(1/16') | 3.2(1/8') |
| Bulk density (g/ml) | 0.62 min | 0.62 min | 0.60 min | 0.60 min |
| Crushing strength (N) | 30 min | 70 min | 25 min | 40 min |
| Abrasion rate ( %) | 0.20 max | 0.20 max | 0.20 max | 0.40 max |
| Carbon dioxide adsorption capacity (%) | 15 min | |||
| static water adsorption (% ) | 21.0 min | 20.5 min | ||
| Static n-hexane adsorption (%) | 12.0 min | |||
| Water content (%) | 1.5 max | |||
| Size ratio up to grade (%) | 98.0 min | |||
Regeneration:
5A Molecular Sieve can be reactivated by thermal sewing, vacuum desorption or gas displacement, the regeneration mode is based on the
feed composition.
Recommended applications:
1. Removal of impurities such as H2O, CO2, and acetylene in the raw gas of the air purification system.
2. Drying and purification of air, nitrogen and inert gases in industry, drying and purification of hydrogen.
3. Separation of normal and isoparaffins in the paraffin industry (C4~C6 fraction).
4. Purification and drying of petroleum and natural gas, ammonia decomposition gas and other industrial gases and liquids.
2. Drying and purification of air, nitrogen and inert gases in industry, drying and purification of hydrogen.
3. Separation of normal and isoparaffins in the paraffin industry (C4~C6 fraction).
4. Purification and drying of petroleum and natural gas, ammonia decomposition gas and other industrial gases and liquids.
Package:
Net 150KG/160KG galvanized metal drum.
Net 25KG carton box lined with aluminum foilg bag.
Net 25KG carton box lined with aluminum foilg bag.

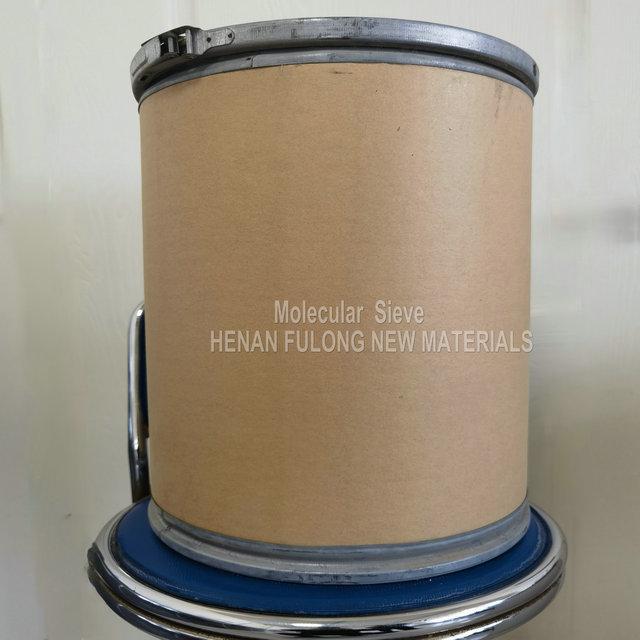

Net 140KG/160KG fiber drum.
Net 1000KG container bag or other packings.
Attention:
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
