13X Molecular Sieve with long sevice life for Pressure Swing Adsorption
Product Introduction:

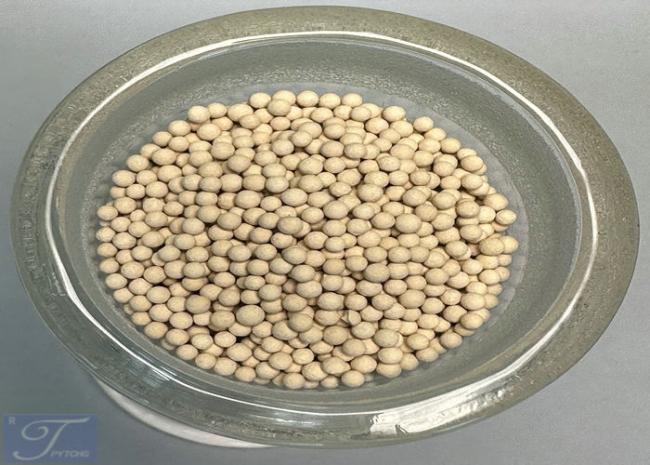

13X molecular sieve for air separation, mainly composed of aluminosilicate, with a pore size of 10A. It is a special molecular sieve produced to meet the special requirements of the cryogenic air separation industry, further improve the adsorption capacity of molecular sieve for CO2 and H2O, and avoid the phenomenon of freezing tower in the air separation process.
13X molecular sieve for air separation has high carbon dioxide adsorption capacity, and it also has the characteristics of fast adsorption speed, low regeneration temperature and long service life for trace water in the air, acetylene and gaseous hydrocarbons. This product is applicable to various large cryogenic and PSA air separation devices.
Specifications for molecular sieve used for air separation:
| Items | Unit | Sphere | Sphere | Pellets | Pellets |
| Diameter | (mm) |
1.6-2.5 |
3.0-5.0 |
1/16” |
1/8” |
| Static H2O adsorption (%) | (%) |
≥26.0 |
≥26.0 |
≥26.0 |
≥26.0 |
| Static CO2 adsorption (%) | (%) |
≥18.5 |
≥18.5 |
≥18.5 |
≥18.5 |
| Bulk density | g/ml |
≥0.62 |
≥0.62 |
≥0.62 |
≥0.62 |
| Loss on ignition | (%) |
≤1.50 |
≤1.50 |
≤1.50 |
≤1.50 |
| Wear ratio | (%) |
≤0.10 |
≤0.10 |
≤0.20 |
≤0.20 |
| Crushing strength | (N) |
≥30 |
≥80 |
≥30 |
≥75 |
| Size ratio up to grade | (%) |
≥98 |
≥98 |
≥98 |
≥98 |
15KG steel drum, inner 0.8mm plastic bag, shape: Φ270mm×380mm
25KG carton barrel, inner 0.8mm plastic bag shape: Φ320mm×480mm
135KG sealed steel drum, inner baking paint, shape: Φ595mm×860mm
