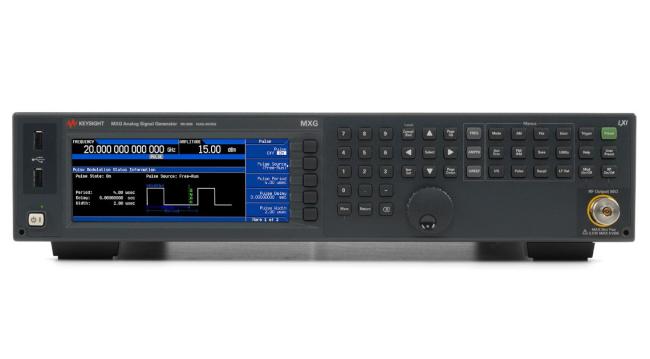

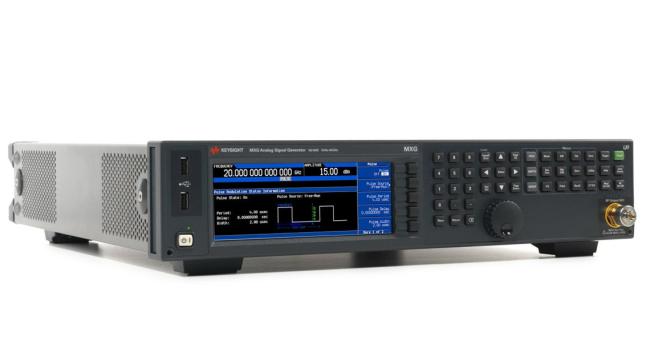

Keysight N5183B MXG X-Series Microwave Analog Signal Generator 9kHz To 40 GHz
Keysight Agilent Usable N5183B MXG X-Series Microwave Analog Signal Generator 9kHz to 40 GHz
Description Of Keysight Agilent Usable N5183
The MXG is the pure and precise alternative to the analog PSG, with advantages in size and speed.
It delivers the performance you need--spectral purity, output power, switching speed and more--to perform module- and system-level testing.
Generate the signals you need with outstanding hardware performance
- Test radar receiver sensitivity with best-in-class phase noise and spurious performance
- Shrink your test stand with two rack-unit height
- Maximize throughput with fast switching speed
- Compensate for system loss, stimulate remote DUTs, and drive high-power amplifiers while retaining signal integrity
- Simulate multi-channel composite analog modulation with integrated multifunction generation
- Create variable RADAR PRI and pulse width with integrated pulse train generator
Maximize resources with low cost of ownership
- Increase uptime with high mean time between failures (MTBF)
- Minimize downtime and expenses with self-maintenance strategy and low-cost repairs
- Standard 3-year calibration cycle and warranty
Highlights
Maximize speed and rack space with the pure and precise MXG
- Get a fast, compact (2U) alternative to the PSG in the lab, depot or field
- Address demanding tests of radar modules & systems with near-PSG levels of spectral purity
- Compensate for system loss & drive high-power amplifiers: +19 dBm output power, -55 dBc harmonics & -68 dBc spurious 20 GHz
- Reduce calibration time with switching speed 600 µs
- Simulate narrowband chirps & radar antenna scans with up to five internal function generators that can be used with AM, FM, OM pulse modulation
List of Options:
|
006
|
Instrument security and removable memory card |
|
010
|
Step attenuator, 115 dB |
|
1CM010A
|
Rack mount flange kit 88.1mm H (2U) - two flange brackets, four hole plugs |
|
1CN006A
|
Handle kit 88.1mm H (2U) - two front handles |
|
1CP004A
|
Rack mount flange and handle kit 88.1mm H (2U) - brackets, handles, hole plugs |
|
1CR012A
|
Rack Slide Kit, Mounting lengths 279.4-406.4mm |
|
1E1
|
STEP ATTEN, 115 dB |
|
1EA
|
High output power |
|
1ED
|
Type-N (f) RF output connector |
|
1EM
|

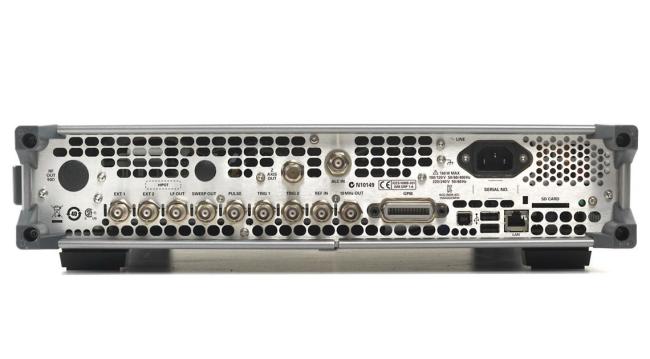

Move all connectors to rear panel |
|
1ER
|
Flexible reference input (1-50 MHz) |
|
303
|
Multifunction generator |
|
320
|
Pulse train generator, fixed perpetual license |
|
513
|
Frequency range, 9 kHz to 13 GHz |
|
520
|
Frequency range, 9 kHz to 20 GHz |
|
532
|
Frequency range, 9 kHz to 31.8 GHz |
|
540
|
Frequency range, 9 kHz to 40 GHz |
|
A6J
|
ANSI Z540-1-1994 Calibration |
|
ABJ
|
Japan- Japanese printed user guide |
|
AMG
|
Calibration + Uncertainties + Guardbanding (Accredited) |
|
AXT
|
Hard transit case |
|
CVR
|
Front Panel Cover |
|
SDO
|
No internal non-volatile memory/solid state drive |
|
UK6
|
Commercial calibration certificate with test data |
|
UNT
|
AM, FM phase modulation |
|
UNW
|
Narrow pulse modulation |
|
UNY
|
Low phase noise |
|
UNZ
|
Fast frequency switching |
|
UW2
|
Narrow pulse modulation up to 31.8 GHz |
|
UZ2
|
Fast frequency switching greater than 1.15 ms and +/-0.05 percent of final frequency |
