60Hz Cummins 500kva Generator

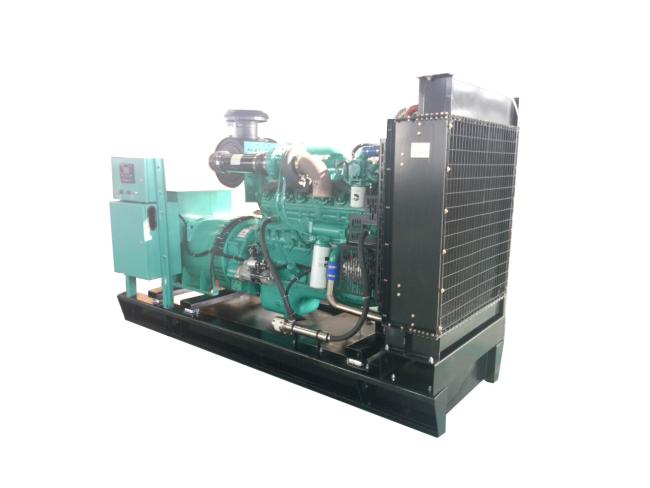

Rated Power 400kWe Cummins Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Cummins engine (CUMMINS). Introduction to Cummins Engine: Cummins Engine Company was formally established in the United States in 1919. After more than 100 years of accumulation, Cummins is the world's leading manufacturer of power equipment, with a power range of 31~3500 horsepower, widely used in construction machinery, mining machinery, agricultural machinery , ships, oil and gas fields,The engine block made of high-strength alloy cast iron has better rigidity, less vibration and lower noise. The four-valve design of each cylinder of the engine optimizes the air/fuel mixture, and uses advanced technology to optimize the combustion process, significantly reducing fuel consumption and improving reliability.
2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.
3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,
Such as: ① deep sea controller (DSE) ② smartgen controller (smartgen) has the characteristics of high integration and high management accuracy.
4. Wide power coverage: The power of diesel generator sets produced by our company covers 20-1200kWe, which can meet various electricity needs of users.
5. Technology research and development team,There are currently no unresolved technical glitches
6. Free solution before purchasing,customize project solutions for you free of charge
7. Optional Permanent Magnet Generator (PMG) - Offers enhanced motor starting and fault clearing short circuit capability. Alternator - Low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation.
| Gen-set Specifications | |||
| Gen-set Model | HD-400GF | Rated Frequency | 50Hz/60Hz |
| Rated Power | 400kWe/500kVA | Rated Speed | 1500rpm/1800rpm |
| Standby Power | 440kWe/550kVA | Rated Current | 720A(400V) |
| Rated Voltage | 400/440V | Weight | 2900kg |
| Fuel Consumption(Rated) | 200g/kW•h |
Outline Dimension(L×W×H) |
3150×1450×1950mm |
| Engine Technical Datasheet | |||
| Engine Model | QSZ13-G3 | Brand | DCEC Cummins |
| StandbyPower | 450kW | Number of Cylinders | 6 |
| Bore×Stroke | 130mm×163mm | Governor | Electronic |
| Displacement | 13Liters | Lubricant Capacity | 45L |
| Starting method | DC24V | ||
| Alternator Technical Datasheet | |||
| Alternator Model | HCI544FS | Brand | Stamford |
| Rated Power | 400kW | Protection Grade | IP23 |
| Voltage regulation | AVR | Excitation | brushless PMG |
| Insulation Grade | H | Type | 3phase 4wire |
| Control system Technical Datasheet |
|
1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit |
