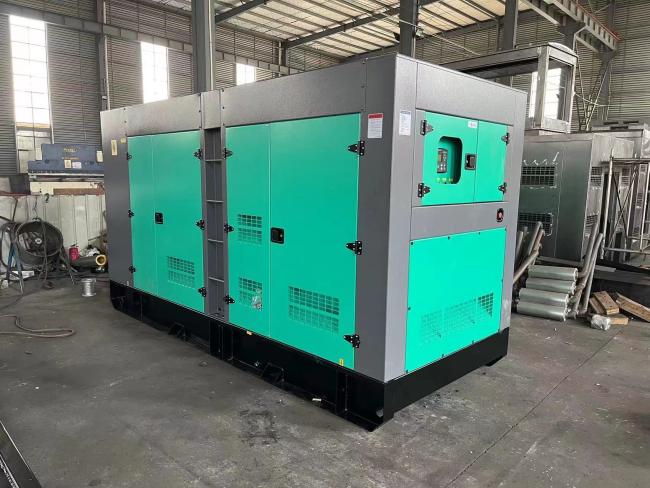

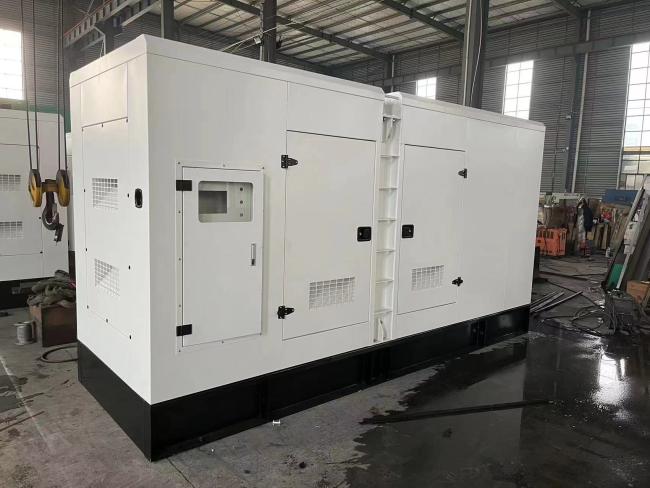

Rated Power 250kVA Cummins Diesel Generator Set Base Type Oil Tank Land Power Station

1.  Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Cummins engine (CUMMINS). Introduction to Cummins Engine: Cummins Engine Company was formally established in the United States in 1919. After more than 100 years of accumulation, Cummins is the world's leading manufacturer of power equipment, with a power range of 31~3500 horsepower, widely used in construction machinery, mining machinery, agricultural machinery , ships, oil and gas fields.
2.  Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as  Stamford generator (STAMFORD)
3.  The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as:  deep sea controller (DSE)
4. The unit has low capacity loss and low oil consumption to meet the industrial power demand
5.  All aspects of generator set design, manufacturing and service have been brought together in one company. All the major components – the engine, alternator, control systems and containers – are manufactured and built by Cummins. This integrated approach means each element of a generator set is matched to work in harmony from the start.
6.  With advanced technology and innovation awareness, rigorous management system and sound service network, the electric power company continues to provide users with a full range of safe, efficient and complete power solutions

Engine Technical Datasheet
Engine Model	NT855-G1	Brand	CCEC Cummins
Rated Power	240kW	Number of Cylinders	6
Bore×Stroke	140mm×152mm	Governor	Electronic
Displacement	14Liters	Lubricant Capacity	38.6L
Starting method	DC24V

Alternator Technical Datasheet
Alternator Model	UCDI274K	Brand	Stamford
Rated Power	200kW	Protection Grade	IP23
Voltage regulation	AVR	Excitation	brushless PMG
Insulation Grade	H	Type	3phase 4wire

Control system Technical Datasheet

1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. Display Data 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh Detection and protection function 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit
