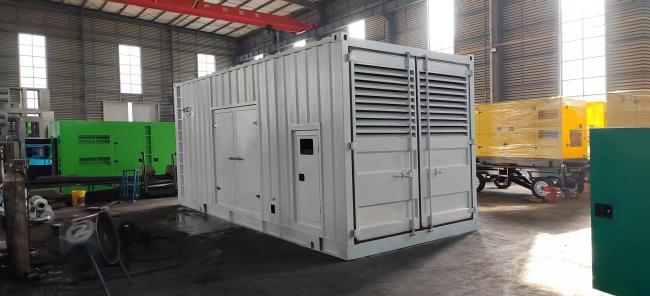

1250kVA Electric Generating Set 4wire Marine Diesel Generator
Rated Power 275-1250kVA Shangchai Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company uses the famous Chinese brand Shangchai Engine (SDEC). Introduction to Shanghai Diesel Engine: Shanghai Diesel Engine Co., Ltd. was officially established in 1947, with a product power range of 22 to 1600 horsepower. It is widely used in the fields of engineering machinery, mining machinery, agricultural machinery, ships, and oil and gas fields.
2. Reliable generator quality: The diesel generator set matching generators produced by our company are selected from products with reliable quality and high market retention, and brands such as ① Stanford generator (STAMFORD), ② Audi generator (mecc alte), ③ Marathon generator, and other generators with excellent performance are selected.
3. High accuracy of the control system: The diesel generator set control system produced by our company uses a liquid crystal screen controller,For example, ① deep sea controller (DSE) ② smart gen controller has the characteristics of high integration and high management accuracy.
4. Wide power coverage: The diesel generator sets produced by our company have a power coverage of 20-1200kWe, which can meet various power demands of users.
5. Large matching coefficient of unit power and long engine life
6. Supporting professional high-temperature radiator
7. Regardless of the power system architecture required to meet your market or application needs our provides a superior combination of solution design expertise, integrated equipment and communication software as well as ongoing operation and generator maintenance services to help you maintain a resilient operation at your site.
| Gen-set Specifications | |||
| Gen-set Model | HD-(220-1000)GF | Rated Frequency | 50Hz/60Hz |
| Rated Power | 220-1000kWe | Rated Speed | 1500rpm/1800rpm |
| Standby Power | 242-1100kWe | Rated Current | 396-1800A(400V) |
| Rated Voltage | 400/440V | Weight | 2400-8000kg |
| Fuel Consumption(Rated) | 198-205g/kW•h | Outline Dimension(L×W×H) | 2900×1030×1700mm- |
| Engine Technical Datasheet | |||
| Engine Series | SC10/SC12/SC13 | Brand | Shangchai |
| Rated Power | 255-1118kW | Number of Cylinders | 6/12 |
| Displacement | 10.4-35.1Liters | Governor | Electronic/ |
| Starting method | DC24V | Lubricant Capacity | 36-90L |
| Alternator Technical Datasheet | |||
| Rated Power | 220-1000kWe | Brand | Stanford |
| Type | 3phase 4wire | Protection Grade | IP23 |
| Voltage regulation | AVR | Excitation | brushless PMG |
| Insulation Grade | H | ||
| Control system Technical Datasheet |
1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit |
