All Black Solar Photovoltaic Panels 425w 410w 415w For Home Use

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: 7-15working days
Brand: KVOU
Product Description

factory direct sale solar photovoltaic panels 425w 410w 415w for home use cheap solar panels all black

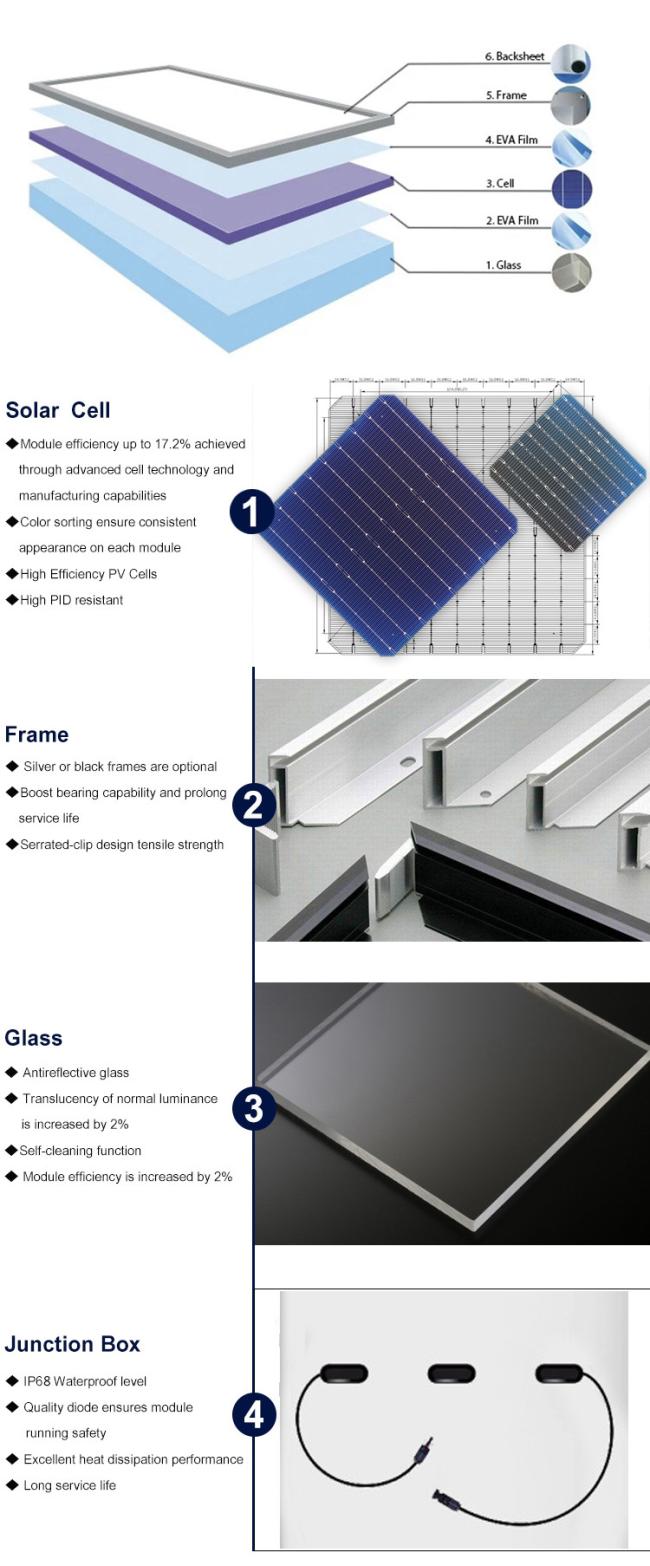

Solar Cell
Module efficiency up to 17.2% achievedthrough advanced cell technology and
manufacturing capabilities
Color sorting ensure consistent
appearance on each moduleHigh Efficiency PV Cells
High PID resistant

Frame
Silver or black frames are optionalBoost bearing capability and prolong
service life
Serrated-clip design tensile strength

Glass
Antireflective glass
Translucency of normal luminanceis increased by 2%Self-cleaning functionModule efficiency is increased by 2%

Junction Box
IP68 Waterproof levelQuality diode ensures module
running safety
Excellent heat dissipation performance
Long service life

Standard Test Condition (STC):Irradiance 1000W/m², Cell Temperature 25℃, AM1.5

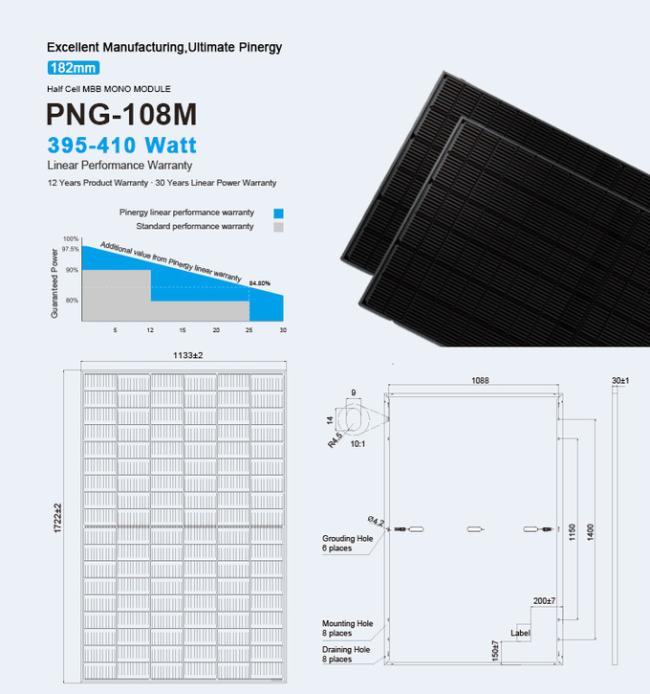

Module Type
PNG108M-395
PNG108M-400
PNG108M-405
PNG108M-410
Max. Power (Pmax/W)
395
400
405
410
Max. Voltage at Max. Power (Vmp/V)
30.9
31.1
31.2
31.4
Max. Current at Max. Power (lmp/A)
12.81
12.88
12.97
13.05
Open Circuit Voltage (Voc/V)
37.0
37.1
37.2
37.4
Short Circuit Current (Isc/A)
13.68
13.77
13.86
13.95
Module Efficiency
20.25%
20.50%
20.76%
21.01%

Nominal Module Operating Temperature (NOCT):Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s.
Module Type
PNG108M-395
PNG108M-400
PNG108M-405
PNG108M-410
Max. Power (Pmax/W)
297
301
305
309
Max. Voltage at Max. Power (Vmp/V)
29.0
29.2
29.4
29.6
Max. Current at Max. Power (lmp/A)
10.23
10.31
10.38
10.45
Open Circuit Voltage (Voc/V)
34.8
34.9
35.1
35.3
Short Circuit Current (Isc/A)
10.93
11.01
11.10
11.17











FAQ
Q:Can I have a sample order?
A:Yes, we welcome sample order to test and check quality.


Q:What about the lead time?
A:Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.


Q:How do I know whether you've shipped my order or not?
A: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo you the done order and let you know the forwarder picked it up.



Q:How many solar panels does it take to run a house?

A:An average home needs between 17 and 21 solar panels to fully offset utility bills with solar. The number of solar panels you need depends on a few key factors, including your geographic location and individual panel specifications.



Q:Do I need permission to install solar?

A:You need only apply for full planning permission (flats) or householder planning permission (houses) to install a solar panel when any of the following apply: it would protrude more than 20cm from the external surface of the wall or roof slope, when measured perpendicularly.



Q:Can I buy solar panels and install myself?

A:The answer is yes. If you can drive lag bolts and assemble prefabricated parts, and if you're willing to spend a day or two on your roof (or not, if you're mounting your panels on the ground), you can install your own solar system.



Q:Is solar panel expensive?

A:Having solar panels installed on your home involves a significant investment upfront. The average homeowner will spend $3 – $5 per watt on their solar panels, resulting in a total price tag between $15,000 – $25,000, though there may be incentives and tax credits available to help lower the overall cost.
